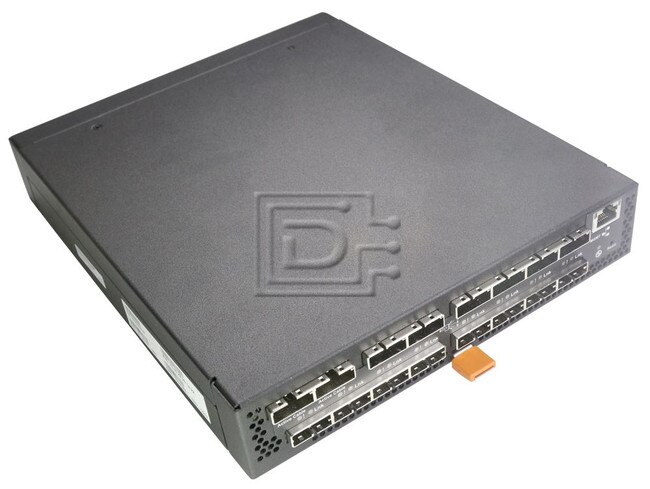

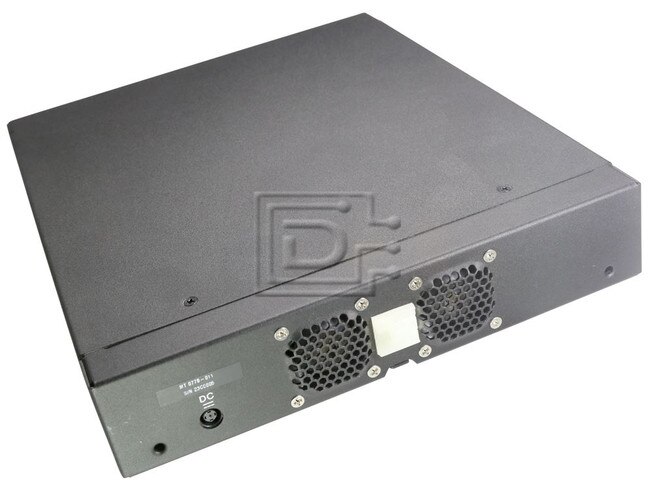

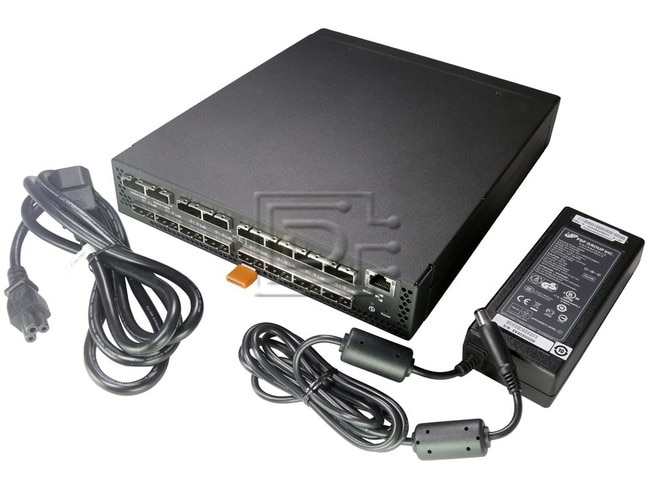

LSI SAS6160 16-port SAS 24Gb/s Switch

LSI Logic Part #/MPN: SAS6160

DiscTech Item #: LSI-SAS6160-RF-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 16

U Height: 1U

Voltage: 12V

LSI SAS6160 LSI00269 16-port 1U 24Gb/s SAS Connections - Refurbished

The LSI™ SAS6160 switch significantly extends the capabilities of SAS in direct-attached storage (DAS) environments by allowing multiple servers to connect to one or more independent external storage systems. The 6Gb/s SAS switch provides a low-cost and easy-to-use storage networking option for rack-mount servers and storage installations in cloud computing, mega data center, small- to medium-size business, and virtual server environments.

By enabling storage resources to be shared across multiple hosts and managed through SAS zoning, the LSI SAS switch helps maximize storage utilization while eliminating islands of storage. It also simplifies storage management, backup, and upgrades. The SAS switch is designed from the ground up to deliver the connectivity required to support virtual server environments. It allows organizations to realize the benefits of virtual machine migration while maintaining the management simplicity of DAS.


  • Provides a tiered storage solution with SAS and SATA drives
  • Lowers acquisition cost without sacrificing expansion capabilities
  • Connects multiple servers to multiple storage easily and efficiently
  • Increases connectivity and reliability by using multiple switches in topology
  • Share and pool storage – fewer, larger storage arrays

    Alt P/N: LSI00269


  • Simple, easy integration
  • Industry-standard SAS infrastructure
  • Enables direct-attached-storage (DAS) to be scaled as a low-cost storage network
  • 16 SFF8088 Mini-SAS ports (4 SAS phys per port)
  • 24Gb/s SAS connections, aggregate bandwidth of 384Gb/s
  • 1/2 wide form factor
  • SAS and SATA connectivity of up to 1,000 devices
  • T10 zoning compliant
  • Out-of-band management utility
  • OS independent

Click here to view the manufacturer's item description/brochure

Alternate MPNs: LSI00269 00W0446

Weight: 16 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
