Lenovo 00FN389 0B32200 / HUSMM1640ASS205 400GB SAS 2.5" SSD

Capacity: | 400GB |
Speed: | Solid State |
Interface Types: | SAS |
Form Factor: | 2.5" SFF Server Drive |
SSD Endurance DWPD: | Enterprise Mixed Use / MU |
Electrical Interface: | SAS-3 12Gbps |
Description
Lenovo 00FN389 0B32200 / HUSMM1640ASS205 400GB 2.5" 12Gbps eMLC 10-DWPD Crypto TCG FIPs SAS SSD 00E7600 kit for System X - Brand New
Lenovo 00FN389 0B32200 / HUSMM1640ASS205 400GB 2.5" 12Gbps eMLC 10-DWPD Crypto TCG FIPs SAS SSD 00E7600 kit for System X - Brand New
ALT MPNs: 0B32200 HUSMM1640ASS205
Lenovo 12Gb SAS Enterprise Performance SSDs for
System x
The 12 Gb SAS Enterprise Performance solid-state drives (SSDs) for System x use MLC NAND flash memory technology with a 12 Gb SAS interface to provide a high-performance, high-endurance storage solution in either 2.5-inch or 3.5-inch drive form factor. The 12 Gb SAS drives with 10 full drives writes per day (DWPD) are an excellent choice for applications demanding high write performance, such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large-scale virtualization, and video on demand.

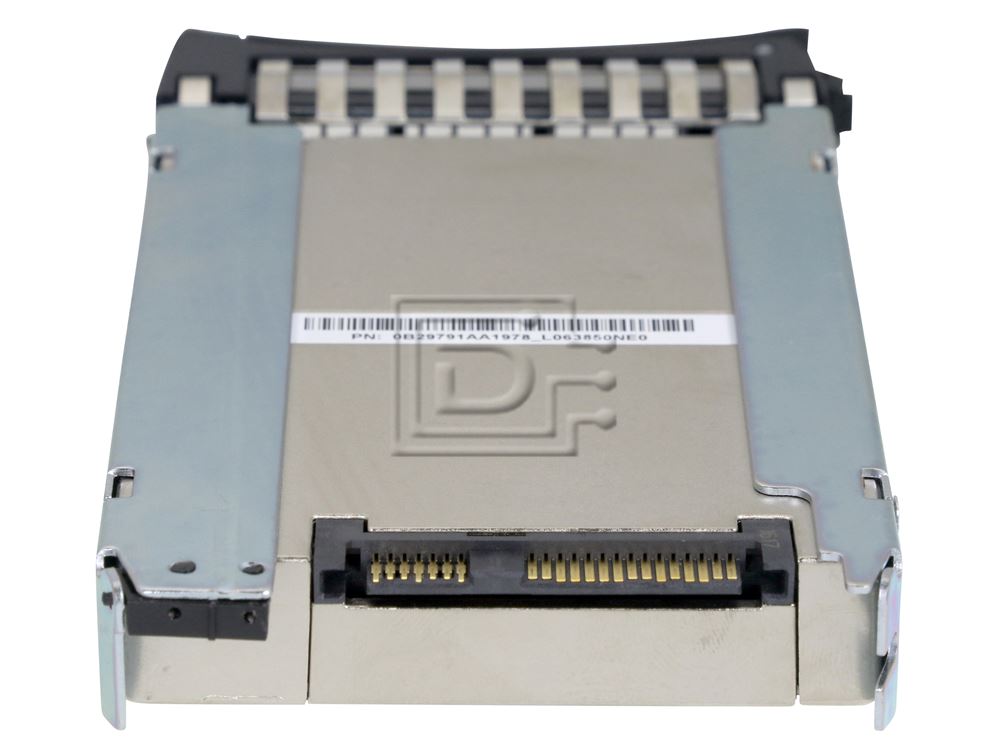

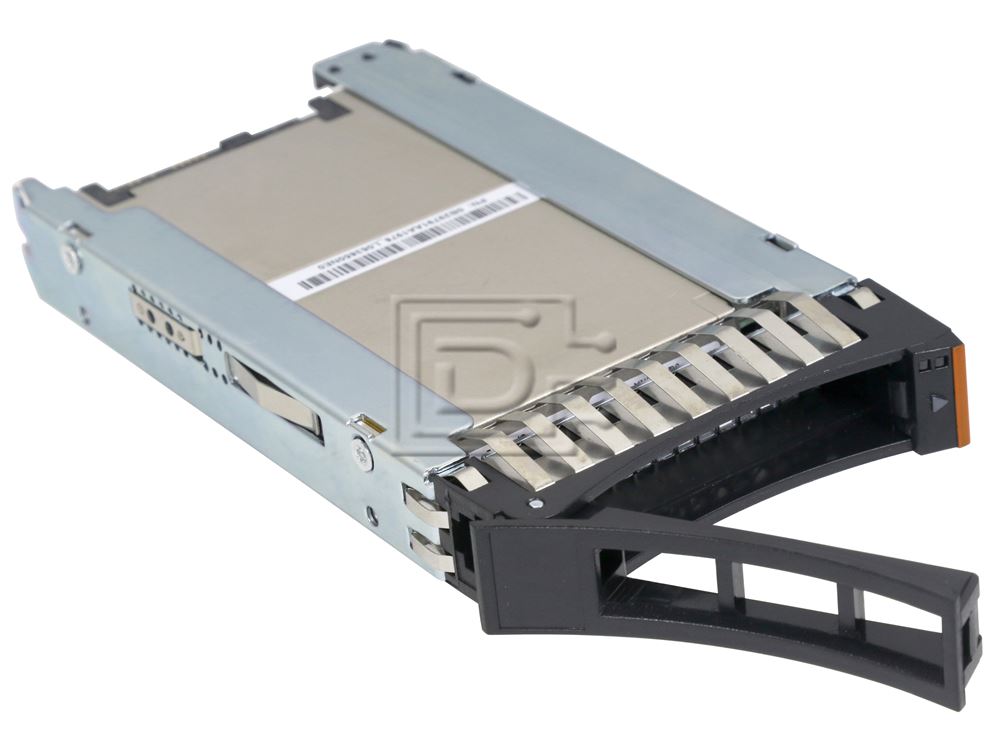

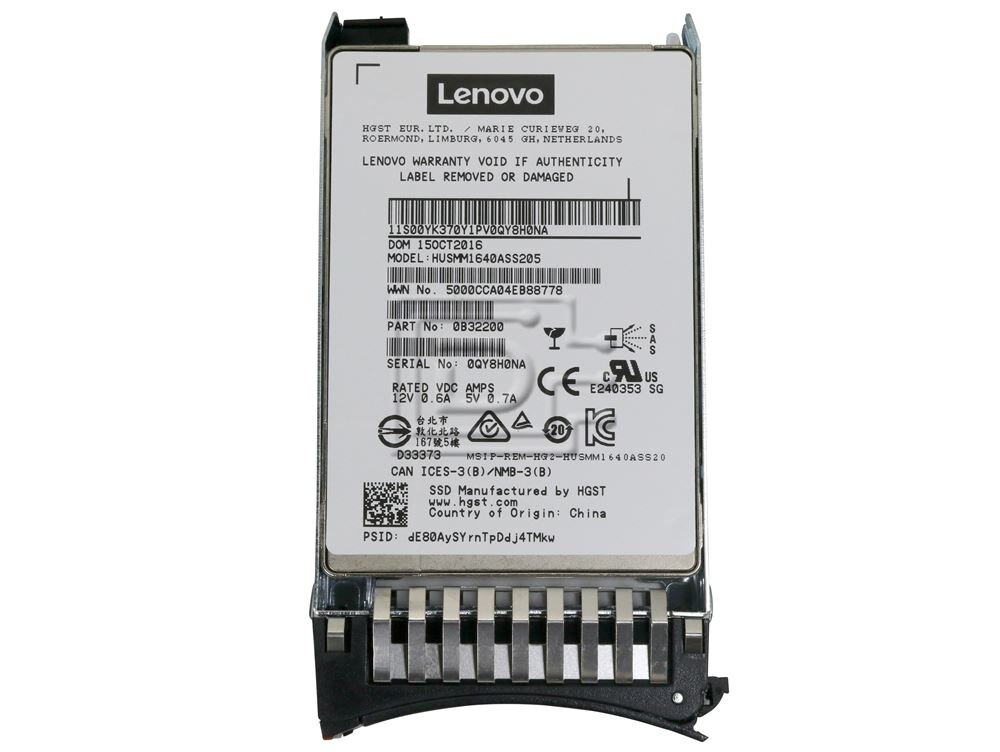

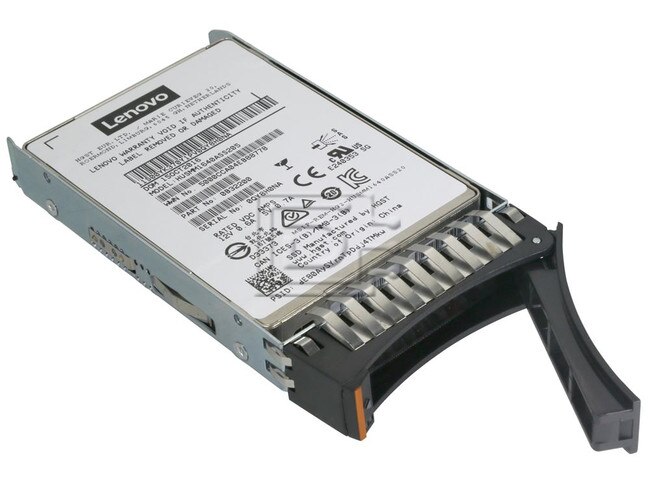

The 12 Gb SAS Enterprise Performance solid-state drive is shown in the following figure
Highlights
- MLC NAND Flash for ultra-high performance and endurance
- Mainstream endurance 10DW/D for 5 years
- Best IOPS/Watt for reduced TCO
- 12Gb/s SAS interface for maximum throughput
- Advanced power loss data management technology
- Self-encrypting models conform to TCG’s Enterprise specification
Applications / Environments
- Ultra-high performance tier-0 enterprise storage
- Enterprise-class servers and high performance computing
- Space and/or power constrained environments
- Online Transaction Processing (OLTP)
- Video pre- and post-production
- Financial and e-commerce
- Database analytics
This drive is compatible with Servers and Arrays that take 2.5" x 15mm Enterprise grade drives including Lenovo System X series.
Comes with 400GB SAS SSD with 44T2216 tray.
x3500 M5 (5464) | x3550 M5 (5463) | x3650 M5 (5462) | x3850 X6 |
x3950 X6 (6241, E7 v4) | nx360 M5 (5465, E5-2600 v4) | sd350 M5 (5493) | x240 M5 (9532) |
Compatibility:
This drive is compatible with Servers and Arrays that take 2.5" x 15mm Enterprise grade drives including Lenovo System X series.
Comes with 400GB SAS SSD with 44T2216 tray.
x3500 M5 (5464) | x3550 M5 (5463) | x3650 M5 (5462) | x3850 X6 |
x3950 X6 (6241, E7 v4) | nx360 M5 (5465, E5-2600 v4) | sd350 M5 (5493) | x240 M5 (9532) |
Specifications
Ultrastar® SSD1600MM | |
---|---|
Part Number | 00FN389 / 0B32200 |
Model Number | HUSMM1640ASS205 |
Configuration | |
Interface | SAS 12Gb/s |
Capacity | 400GB |
Form factor | 2.5-inches |
Flash memory technology | Multi Level Cell (MLC) |
Sector size support | 512, 520, 528, 4K |
Performance | |
Read throughput (max MB/s, sequential 64K) | 1100 |
Write throughput (max MB/s, sequential 64K) | 765 |
Read IOPS (max IOPS, random 4K) | 130,000 |
Write IOPS (max IOPS, random 4k) | 100,000 |
Reliability | |
Error rate (non-recoverable, bits read) | 1 in 10^17 |
MTBF(M hours) | 2.5 |
Annual failure rate(AFR) | 0.35% |
Availability (hrs/day x days/wk) | 24x7 |
Endurance (max PB, random write) | 3.6 |
Power | |
Requirement | +5 VDC (+/-5%) +12 VDC (+/-10%) |
Operating (W, typical) | 9.0 and 11.0 |
Idle, (W) | 2.2 |
Physical size | |
z-Height (mm) | 15.0 |
Dimensions (width x depth, mm) | 70.1 x 100.6 |
Weight (max, g) | 187 |
Environmental (operating) | |
Case temperature | 0° to 70° C |
Shock (half-sine wave) | 1000G(0.5ms) 500G(2ms) |
Vibration, random (G RMS) | 2.16, all axis (5 to 700 Hz) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 0B32200 HUSMM1640ASS205
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
