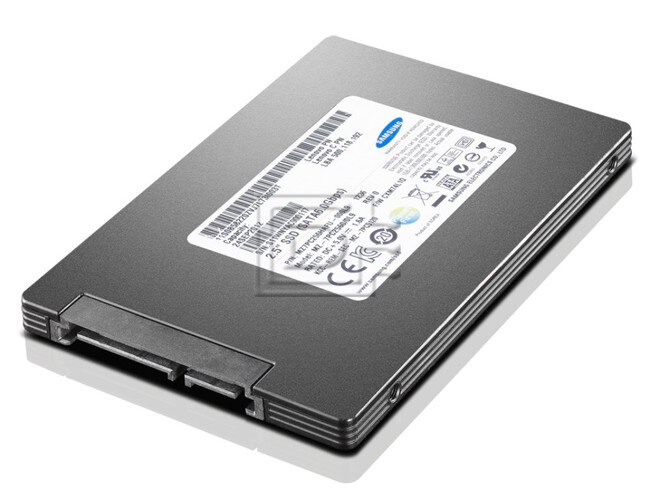

Lenovo 4XB0F86403 512GB SATA SSD

LENOVO Part #/MPN: 4XB0F86403

DiscTech Item #: LEN-4XB0F86403-BN-1Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 512GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps


Lenovo 4XB0F86403 512GB 2.5in 6Gbps ThinkPad SATA MLC SSD 03X3836 - Brand New

Lenovo 4XB0F86403 512GB 2.5" 6.0 Gbps ThinkPad Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive 03X3836 - Brand New

This drive is compatible with ThinkServer: TD340, TS430, TS440, RD330, RD430, RD440, RD530, RD630, RD540, RD640

The ThinkPad 512GB 2.5” Solid State Drive option with bracket to make sure you could upgrade your storage easily for your ThinkPad systems.


ThinkServer TD340ThinkServer TS430ThinkServer TS440
ThinkServer RD330ThinkServer RD430ThinkServer RD440
ThinkServer RD530ThinkServer RD630ThinkServer RD540
ThinkServer RD640

Drive Model4XB0F86402
Height (mm/in)6.8/0.27
Width (mm/in)69.85/2.75
Length (mm/in)100/3.94
Weight (g/lb)55/0.12
Sustained Sequential Readup to 540 MB/s
Sustained Sequential Writeup to 330 MB/s
Shock Operating1500G, 0.5ms half sine
Vibration Operating7~800Hz, 3.08gRMS, 30min/axis
MTBF1,500,000 hours
Temperature Operating0 deg to 70 deg (B) (32 deg to 158 deg (F))
Temperature Non-Operating -55 deg to 95 deg (B) (-67 deg to 203 deg (F))
Relative Humidity Operating5% to 95% (non-condensing)
Relative Humidity Non-Operating5% to 95%

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 1 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

1 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
