INTEL Part #/MPN: SSDSC2KG960G7L
DiscTech Item #: LEN-7SD7A05721-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 960GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 500/490
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Mixed Use

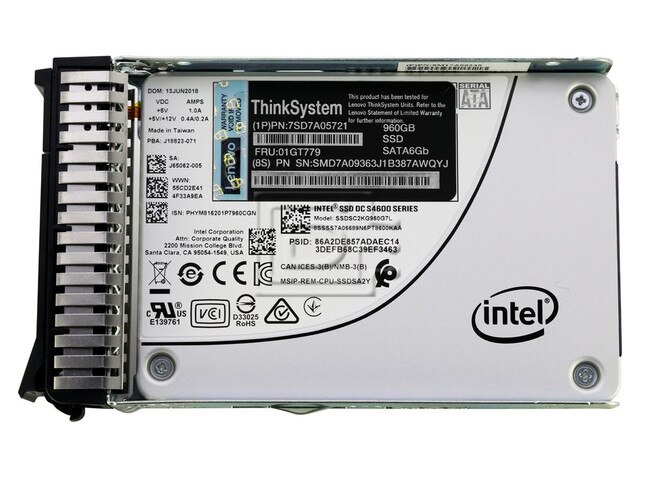

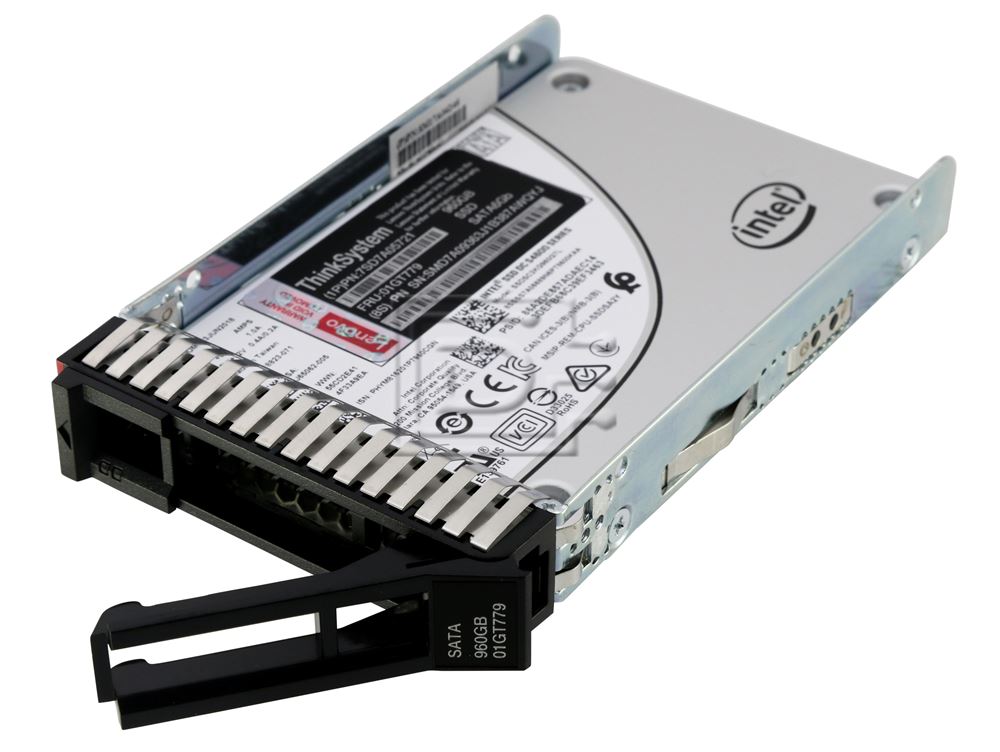

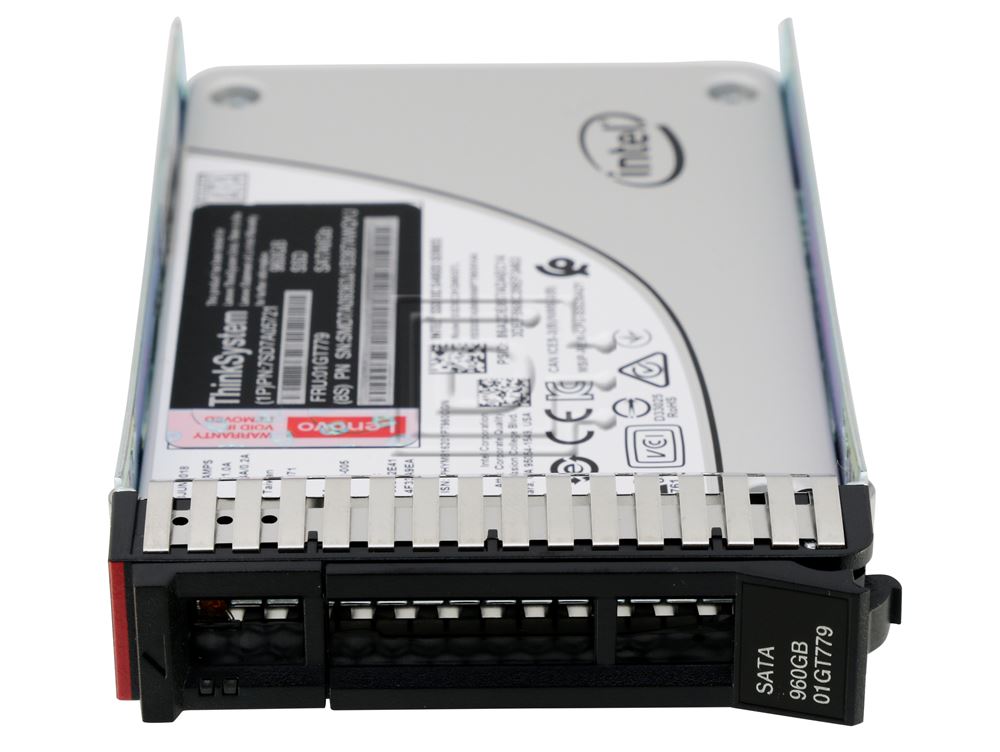

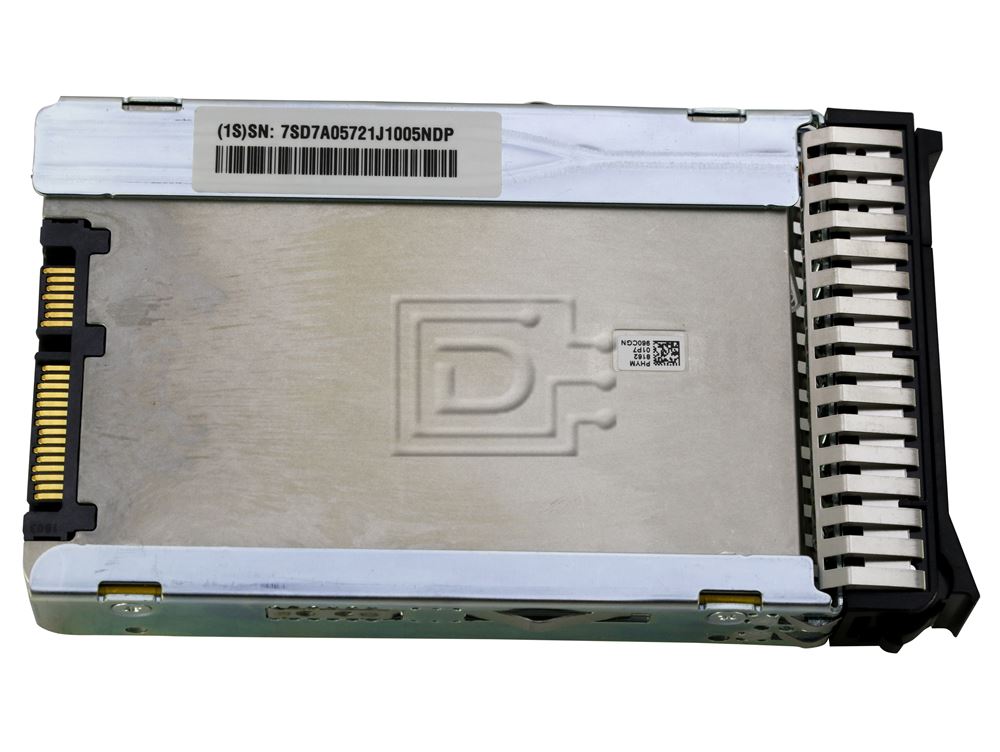

Lenovo ThinkSystem 7SD7A05721 / SSDSC2KG960G7L 960GB 2.5-Inch 6Gbps TLC DC S4600 Series SED SATA SSD 01GT779 - Brand New
Lenovo ThinkSystem 7SD7A05721 / SSDSC2KG960G7L 960GB 2.5" 6.0 Gb/s TLC / Triple Level Cell DC S4600 Series SED / Self Encrypting SATA / Serial ATA SSD / Solid State Drive 01GT779 - Brand New
Intel® SSD DC S4500/DC S4600 Series Data Center (DC), SATA (S)
Storage Inspired. Infrastructure Optimized.
The Intel S4600 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
Features At-a-Glance
Capacity
- 960GB
Performance
- 128KB Sequential Read/Write – up to 500/490 MB/s
- S4600: 4k Random Read/Write – up to 72K/65K IOPS
Reliability
- Designed for end-to-end data protection from silent data corruption, uncorrectable bit error rate < 1 sector per 1017 bits read
Power
- S4600: Active power 5W; Idle power 1W
Interface
- SATA 6Gb/s
Form Factor
- 2.5in x 7mm
Media
- Intel 3D NAND, TLC
Endurance
- 3 DWPD
Compatibility:
This drive is compatible with any server that accepts 2.5" x 7mm (Thin/Case) SATA drives
| Intel® SSD DC S4600 Series | |
|---|---|
| Part Number | 7SD7A05721 01GT779 |
| Model Number | SSDSC2KG960G7L |
| ESSENTIALS | |
| PRODUCT COLLECTION | Intel® SSD DC S4600 Series |
| CODE NAME | Products formerly Youngsville |
| CAPACITY | 960 GB |
| STATUS | Launched |
| LAUNCH DATE | Q3'17 |
| LITHOGRAPHY TYPE | 3D NAND TLC |
| PERFORMANCE | |
| SEQUENTIAL READ (UP TO) | 500 MB/s |
| SEQUENTIAL WRITE (UP TO) | 490 MB/s |
| RANDOM READ (100% SPAN) | 72000 IOPS |
| RANDOM READ (100% SPAN) | 65000 IOPS |
| LATENCY - READ | 36 µs |
| LATENCY - WRITE | 36 µs |
| POWER - ACTIVE | 4.8 W |
| POWER - IDLE | 1.0 W |
| RELIABILITY | |
| VIBRATION - OPERATING | 2.17 GRMS |
| VIBRATION - NON-OPERATING | 3.13 GRMS |
| SHOCK (OPERTING AND NON-OPERATING) | 1000 G/0.5 msec |
| OPERTING TEMPERATURE RANGE | 0°C to 70°C |
| ENDURANCE RATING (LIFETIME WRITES) | 5.25 PBW |
| MEAN TIME BETWEEN FAILURES (MTBF) | 2 million hours |
| UNCORRECTABLE BIT ERROR RATE (UBER) | 1 sector per 1017 bits read |
| PACKAGE SPECIFICATIONS | |
| FORM FACTOR | 2.5" 7mm |
| INTERFACE | SATA 3.0 6Gb/s |
| ADVANCED TECHNOLOGIES | |
| ENHANCED POWER LOSS DATA PROTECTION | Yes |
| HARDWARE ENCRYPTION | AES 256 bit |
| HIGH ENDURANCE TECHNOLOGY (HET) | No |
| TEMPERATURE MONITORING AND LOGGING | Yes |
| END-TO-END DATA PROTECTION | Yes |
| INTEL SMART RESPONSE TECHNOLOGY | No |
| INTEL RAPID START TECHNOLOGY | No |
| INTEL REMOTE SECURE ERASE | No |
Click here to view the manufacturer's item description/brochure
Weight: 1 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
