Micron Part #/MPN: MT36JSF1G72PZ-1G6
DiscTech Item #: MIC-MT36JSF1G72PZ-1G6-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 8GB
Interface Types: DDR3 DIMM 240pin
Form Factor: DDR3 RDIMM
Electrical Interface: PC3-12800
On-Board Cache: 8GB
Voltage: 1.35V
Compatible Systems: Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

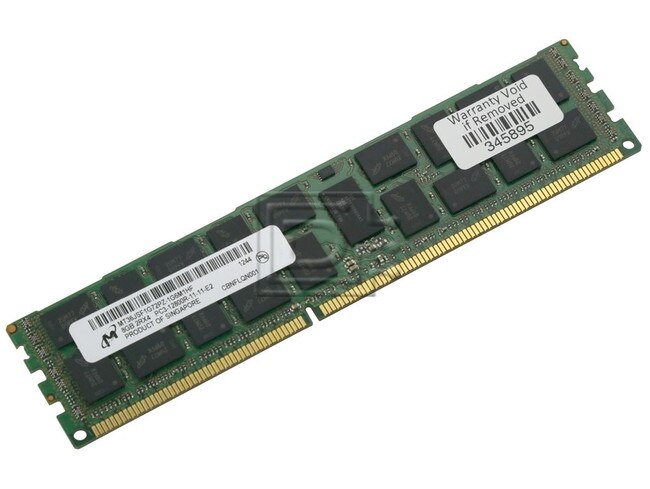

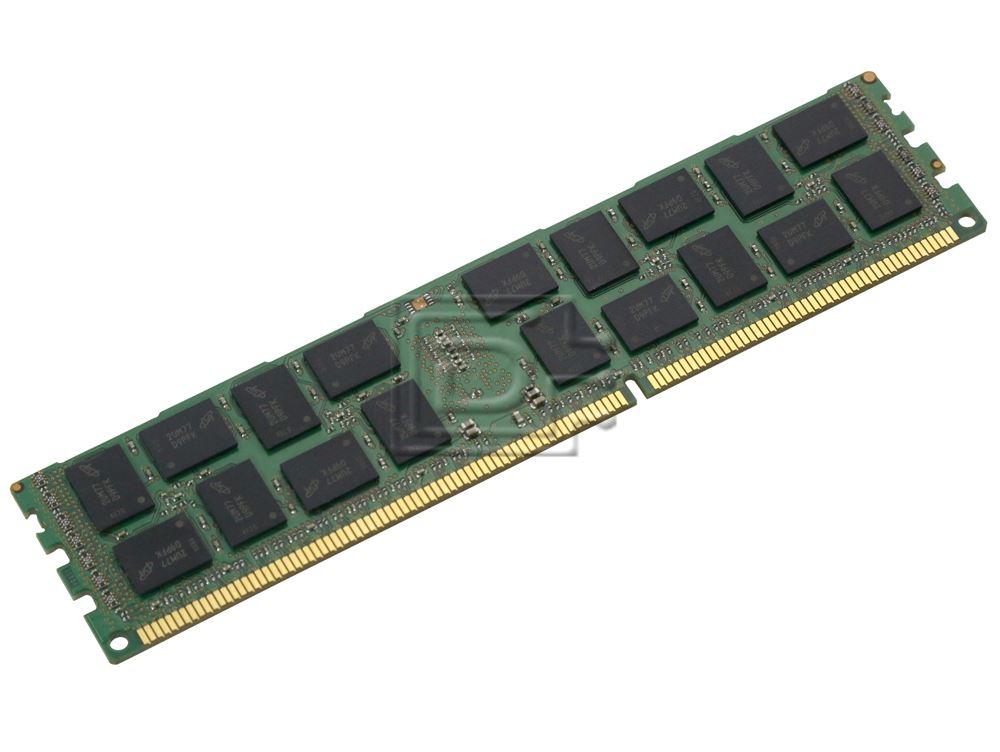

Micron MT36JSF1G72PZ-1G6 8GB DDR3 PC3-12800R 1600MHz Registered ECC 240pin RAM RDIMM - New Pull
Micron MT36JSF1G72PZ-1G6 8GB DDR3 PC3-12800R 1600MHz Registered ECC 240pin RAM RDIMM
Alt. P/Ns: MT36JSF1G72PZ-1G6M1 / MT36JSF1G72PZ-1G6K1
**Includes 1x 8GB RAM Module**
DDR3 240-pin DIMM
Approximately 5.25 in. by 1.18 in. (133.35 mm by 30 mm)
Micron Manufacturer 240-pin DIMMs are used in DDR3 memory for desktop or Server computers. DDR3 is the latest generation of memory with an improved architecture that allows it to transmit data more quickly.
A dual inline memory module (DIMM) consists of a number of memory components (usually black) that are attached to a printed circuit board (usually green). The gold pins on the bottom of the DIMM provide a connection between the module and a socket on a larger printed circuit board. The pins on the front and back of a DIMM are not connected to each other.
Each 240-pin DIMM provides a 64-bit data path (72-bit for ECC or registered or Fully Buffered modules). (The Ballistix™ and Ballistix Tracer™ high-performance memory do not come in 72-bit or registered modules.) Standard DDR3 240-pin DIMMs are currently available in PC3-8500 (DDR3 1066MHz) and PC3-10600 (DDR3 1333MHz) speeds. Additional speeds will be added as the technology becomes available.
To use DDR3 memory, your system motherboard must have 240-pin DIMM slots and a DDR3-enabled chipset. This is because a DDR3 SDRAM DIMM will not fit into a standard DDR2 DIMM socket or a DDR DIMM socket.
The number of black components on a 240-pin DIMM can vary, but it always has 120 pins on the front and 120 pins on the back, for a total of 240. 240-pin DIMMs are approximately 5.25 inches long and 1.18 inches high, though the heights can vary. While 240-pin DDR3 DIMMS, 240-pin DDR2 DIMMs, 184-pin DDR DIMMs, and 168-pin DIMMs are approximately the same size, 240-pin DIMMs and 184-pin DIMMs have only one notch within the row of pins.
Compatibility:
This memory module is compatible with servers supporting PC3 Fully Buffered ECC memory including...
PowerEdge C6220
PowerEdge C8220
PowerEdge R420
PowerEdge T420
PowerEdge M620
PowerEdge M820
PowerEdge R620
PowerEdge R720
PowerEdge R720XD
PowerEdge R820
PowerEdge T320
PowerEdge T620
PowerEdge R410
PowerEdge T410
PowerEdge R510
PowerEdge R610
PowerEdge T610
PowerEdge R710
PowerEdge T710
PowerEdge R810
PowerEdge R910
| SPECIFICATIONS | |
|---|---|
| Model Number | MT36JSF1G72PZ-1G6 |
| CPU SPECIFICATIONS | |
| Brand | Micron |
| Form Factor | RDIMM |
| Capacity | 8GB |
| Specs |
|
| ECC | ECC |
| Kit Qty | 1 |
| Speed | 1600 MT/s |
| Pins | 240 |
| Voltage | 1.35V |
| DIMM Type | Registered |
| Component Configuration | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MT36JSF1G72PZ-1G6M1 MT36JSF1G72PZ-1G6K1
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
