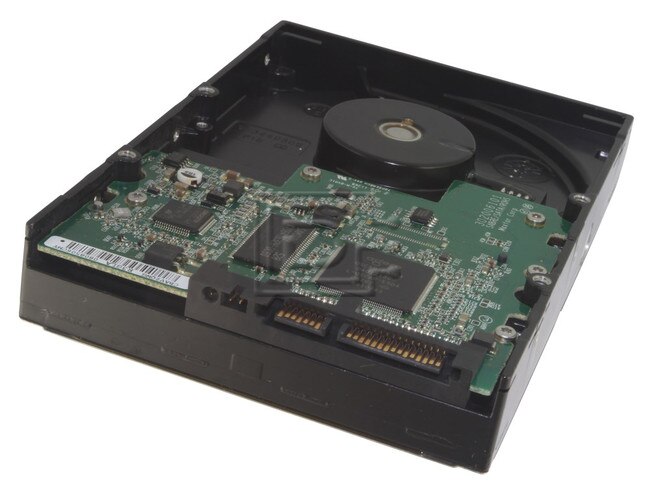

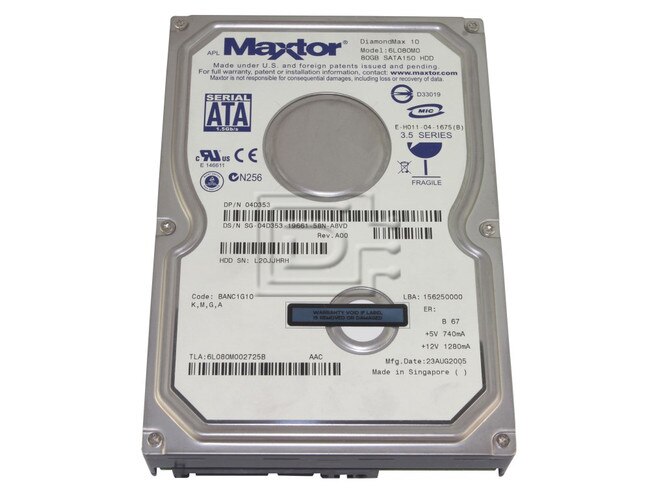

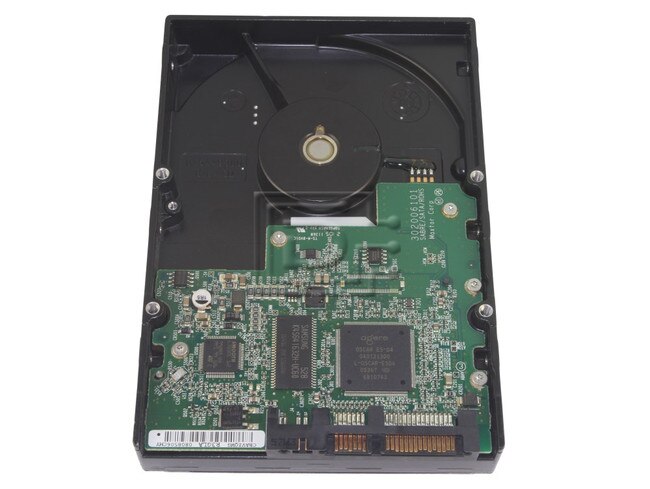

Maxtor 6L080M0 SATA Hard Drive

Maxtor Part #/MPN: 6L080M0

DiscTech Item #: MAX-6L080M0-FR-6M


Capacity: 80GB

Speed: 7,200RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Average Seek Time: 9.3ms

Electrical Interface: SATA 150 - 1.50Gbps

On-Board Cache: 8MB

Maxtor DiamondMax Plus 10 80GB 7.2K 8MB SATA Hard Drive - 6L080M0 Factory Recertified

The 7200 RPM DiamondMax® Plus 10 hard drive is your solution for performance PCs with data- intensive applications such as network attached storage, home networking devices, audio, video and other multimedia applications.

When your applications demand performance and reliability for your critical data, DiamondMax Plus 10 provides the highest capacity in its class. DiamondMax Plus 10 is equipped with fluid dynamic bearing motors for acoustic sensitive applications. This allows the drive to operate with extremely low sound output, an important feature for many applications. With Maxtor Shock Protection and Data Protection Systems on every drive, your drives and data are protected against operating and non-operating shock. DiamondMax Plus 10 offers performance leadership design with a 8MB buffer, ATA/133 or SATA interface and capacities of 60, 80, 120, 160 and 200GB. This is a drive that delivers.

Model number 6L080M0
Model Name DiamondMax® Plus 10
Form Factor(width) 3.5-inch
Form Factor(height) 1-inch
Height 26.1mm
Width 101.6mm
Length 147.00mm
Weight 1.39 lbs.
Formatted Capacity 80GB
External (I/O) Transfer Rate (max) 1.5 or3.0 Gb/s
Average Seek Time, Read <9.0 msec
Average Latency 4.17 msec
Default Buffer (cache) Size 8 Mbytes
Spindle Speed7,200 rpm
Acoustics, Idle (sound power, typ) 2.5 / 2.9 Bels
Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 6 Month Manufacturer

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

6 Month Manufacturer Warranty
