Maxtor Part #/MPN: 8K147S0
DiscTech Item #: MAX-8K147S0-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:3Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 98
Average Seek Time: 3.4 / 3.8
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB

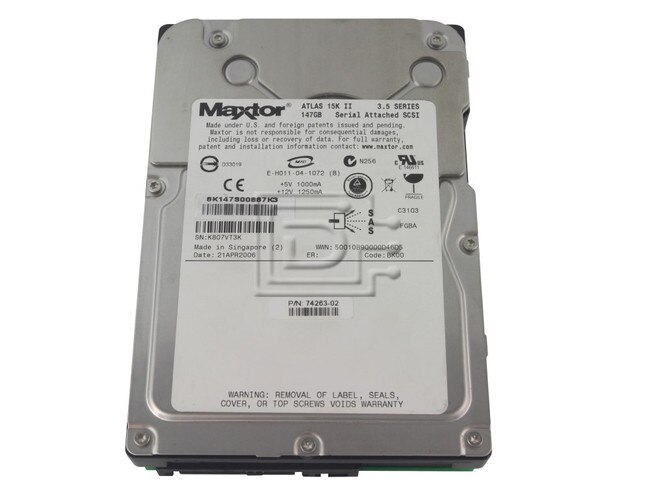

Maxtor Atlas 15K II 147GB 3Gbps Serial Attached SCSI ( SAS ) Hard Drive 8K147S0 (Lead Free / RoHS compliant) - Refurbished
The Atlas 15K II SAS hard drive offers an unbeatable combination of reliability, adaptability and leading-edge performance to satisfy the demands of I/O-intensive, high-bandwidth enterprise applications. It’s ideal for OLTP, SAN and NAS environments, high-performance workstations, 3-D animation, scientific data processing, economic modeling, data mining, audio/video and digital imaging.
The drive delivers seek times as fast as 3.0ms and data transfer rates up to 98MB/sec. At the same time, solid design and state-of-the-art manufacturing test processes make possible a MTTF of 1.4 million high-duty-cycle hours. Reliability is further enhanced by improved S.M.A.R.T. and self-diagnostics.
Compatibility:
This drive is compatible with any of our SAS hot swap drive trays / caddies.
| Specifications | 36.7 GB | 73.5 GB | 147.1 GB |
| Formatted Capacity (GB) | 36.7 | 73.5 | 147.1 |
| Bytes per Sector | 512 | 516 | 518 |
| Interface 3Gbps Serial Attached SCSI ( SAS ) | |||
| Average Read/Write (ms) | 3.0/3.4 | 3.1/3.5 | 3.4/3.8 |
| Track-to-Track Read/Write (ms) | 0.3/0.5 | 0.3/0.5 | 0.3/0.5 |
| Full stroke Read/Write (ms) | 8.0/9.0 | 8.0/9.0 | 8.0/9.0 |
| Maximum Sustained Transfer Rate (MB/sec) | 98 | 98 | 98 |
| Operating Temperature (°C) | 5 to 55 | 5 to 55 | 5 to 55 |
| Non-Condensing Humidity (%) | 5 to 95 | 5 to 95 | 5 to 95 |
| Non-Operating Temperature (°C) | -40 to 70 | -40 to 70 | -40 to 70 |
| Idle Power (W) | 6.8 | 8.4 | 13 |
| Width max (inches/mm) | 4/101.6 | 4/101.6 | 4/101.6 |
| Length max (inches/mm) | 5.787/147 | 5.787/147 | 5.787/147 |
| Height max (inches/mm) | 1.028/26.1 | 1.028/26.1 | 1.028/26.1 |
| Weight max (lb/kg) | 2.0/0.91 | 2.0/0.91 | 2.0/0.91 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
