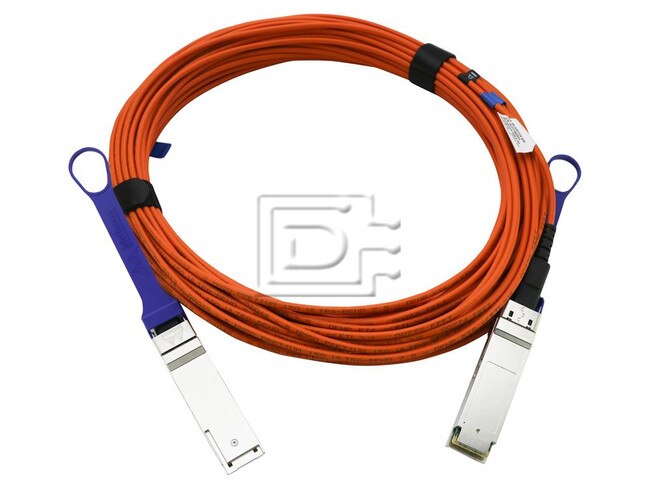

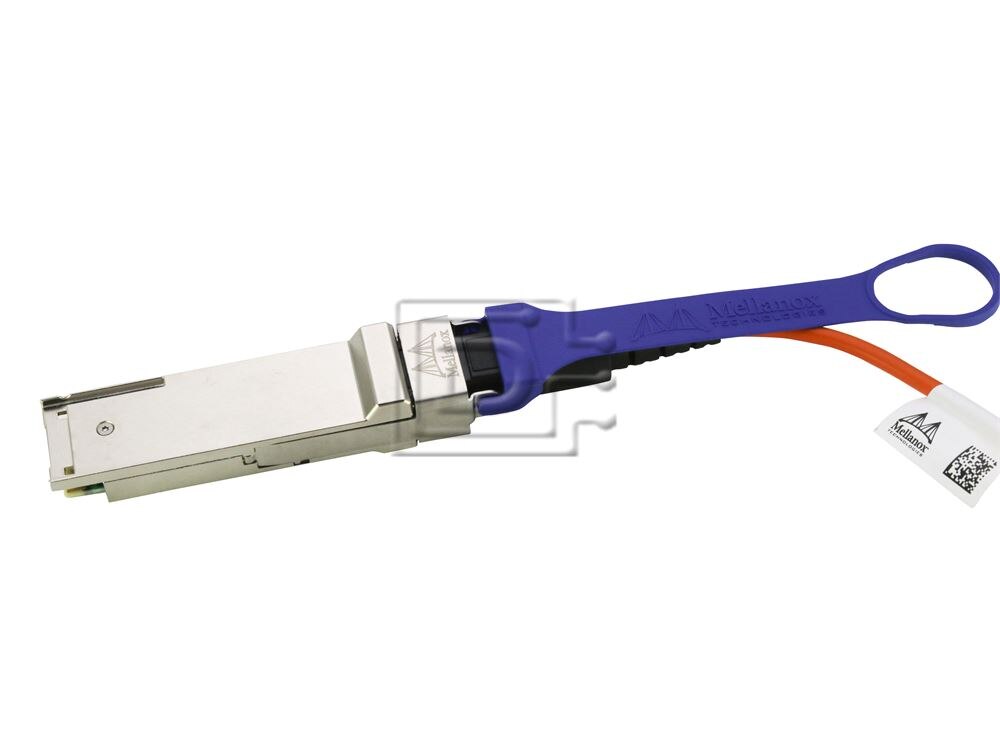

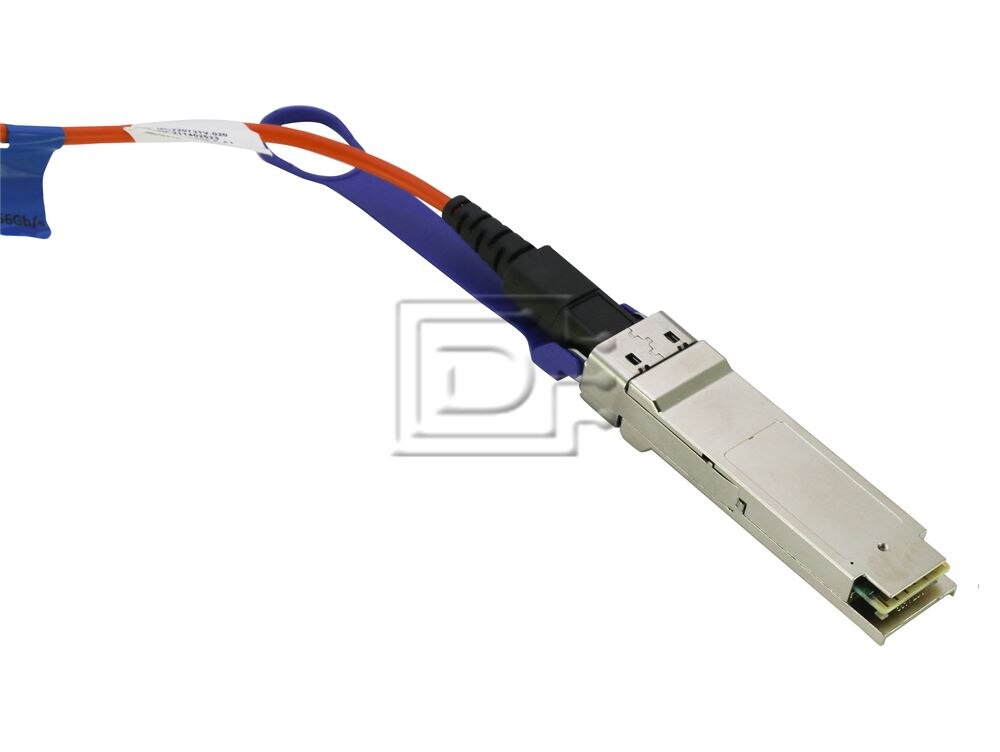

Mellanox MC220731V-020 20m active fiber cable

Mellanox Part #/MPN: MC220731V-020

DiscTech Item #: MEL-MC220731V-020-BN-OE


Interface Types: SFP, GBIC

Mellanox MC220731V-020 20m active fiber cable - Brand New

Mellanox MC220731V-020 10m / 20 Meter active fiber cable, VPI / Virtual Protocol Interconnect, up to FDR / Fourteen Data Rate 56 GbE, QSFP+ / Quad Small Form-Factor Pluggable Plus - Brand New

56Gb/s QSFP+ Active Optical Cable

Mellanox MC220731V is a family of VCSEL-based (Vertical Cavity Surface-Emitting Laser) QSFP+ active optical cable (AOC) designed for use in 40GbE Ethernet and 56Gb/s Virtual Port Interconnect (VPI) systems. This family of AOCs offers high port density and configurability, as well as a longer reach than passive copper cables in data centers. Since the AOC is hot pluggable, it is easy to install and replace.

The MC220731V family has a standard SFF-8685 compliant QSFP+ port on the electrical side towards the host system.

MC220731V AOCs contain four multi-mode fibers (MMF) optical transceivers per end, each operating at data rates of up to 14.0625Gb/s. The transmitters have input equalizers compensating for signal attenuation across the host PCB, and the receivers have programmable output amplitude and pre-emphasis.

Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.


  • Up to 56Gb/s data rate
  • 1W maximum power consumption
  • SFF-86855 and SF-8436 compliant
  • Operating case temperature of 0-70°C
  • 3.3V power supply
  • BER better than 1E-15
  • Hot pluggable
  • Up to 100 meters in length
  • Standard multimode fiber
  • RoHS compliant
  • Plenum rated (OFNP)

Mellanox Active Fiber Cable
Standard Model NumberMC220731V-020
Max SpeedFDR
Connector TypeQSFP

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
