Mellanox MFS1S00-H020E QSFP56 to QSFP56 200Gbps 20M / 66FT Active Optical Cable AOC InfiniBand
- Brand NewCondition Levels Explained
The product is brand new.
- In Stock:7Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Interface Types: | QSFP |
| Electrical Interface: | QSFP56 - 200Gbps |
Description

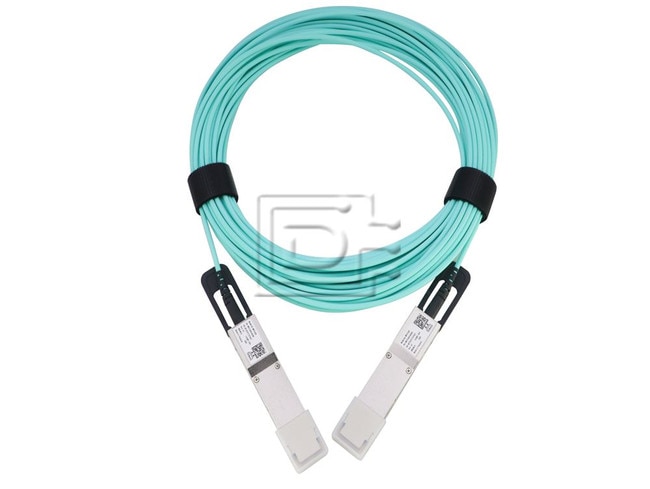

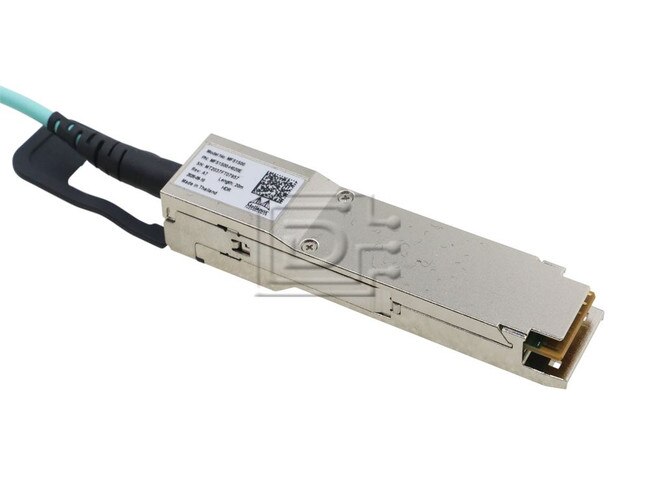

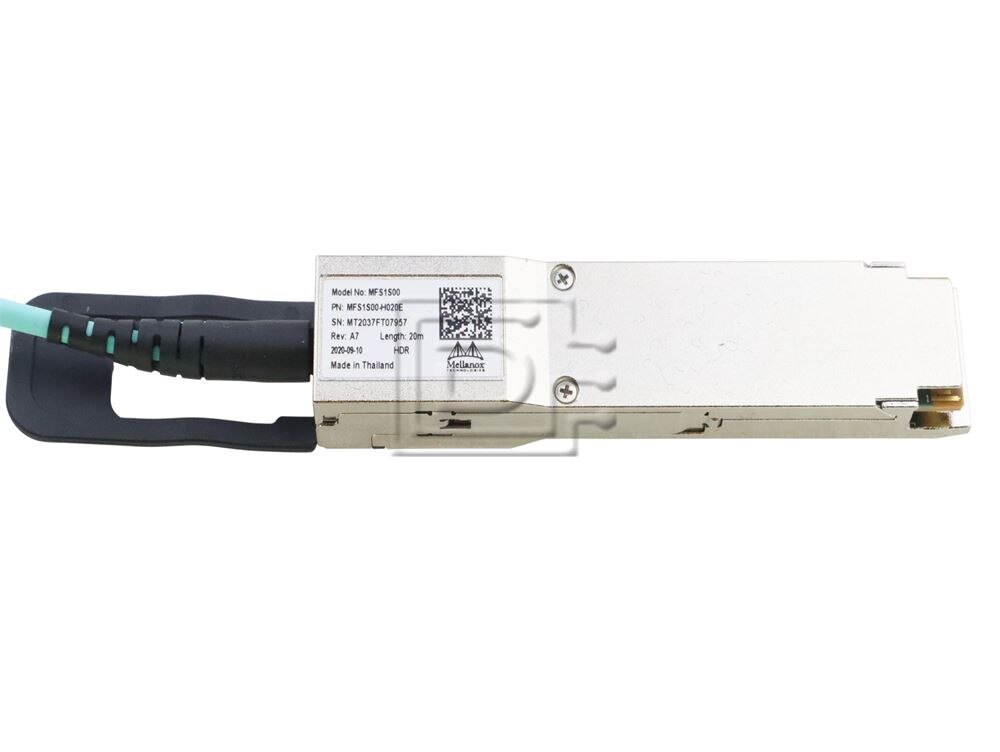

Mellanox MFS1S00-H020E QSFP56 to QSFP56 200Gbps 20M / 66FT Active Optical Cable - Brand New
The Mellanox® MFS1S00-H020E is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. This AOC offers high port density, configurability, and a significantly longer reach compared to passive copper cables in data centers. Its hot-pluggable design ensures easy installation and replacement.
The MFS1S00-H020E features a standard SFF-8665 compliant QSFP56 port on the electrical side connected to the host system. Each end contains four multi-mode fiber (MMF) optic transceivers, each capable of data rates up to 50Gb/s. It provides selectable retiming per lane for both optical transmitters and receivers, supporting rates up to 50Gb/s.
Rigorous production testing guarantees optimal out-of-the-box installation experience, performance, and durability. Mellanox's unique quality active fiber cable solutions offer power-efficient connectivity for data center interconnects. These solutions enable higher port bandwidth, density, and configurability at a low cost while reducing power requirements in data centers.
Specifications
Mellanox® active fiber cable, IB HDR, up to 200Gb/s, QSFP56, LSZH, black pulltab, 20m
Absolute Maximum Ratings
| Parameter | Minimum | Maximum | Units |
|---|---|---|---|
| Supply voltage | -0.3 | 3.6 | V |
| Data input voltage | -0.3 | 3.465 | V |
| Control input voltage | -0.3 | 4.0 | V |
| Damage threshold | 3.4 | --- | dBm |
| Storage temperature | -40 | 85 | °C |
Operational Specifications
| Parameter | Minimum | Typical | Maximum | Units |
|---|---|---|---|---|
| Supply voltage (Vcc) | 3.135 | 3.3 | 3.465 | V |
| Power dissipation (each end, retiming on all lanes) | --- | 4.35 | 4.55 | W |
| Supply noise tolerance (10Hz-10MHz) | 66 | --- | --- | mVpp |
| Operating case temperature | 0 | --- | 70(1) | °C |
| Operating relative humidity | 5 | --- | 85 | % |
Cable Mechanical Specifications
| Parameter | Value | Units |
|---|---|---|
| Diameter | 3 ± 0.2 | mm |
| Minimum bend radius | 30 | mm |
| Length tolerance | m | |
| Length < 5m | +300mm / -0 | |
| 5m ≤ Length < 50m | +500mm / -0 | |
| 50m ≤ Length | +1000mm / -0 | |
| Cable color | Aqua | -- |
Click here to view the manufacturer's item description/brochure
Weight: 0.65 lb
Warranty: 1 Year DiscTech
Condition
Brand New
Warranty
1 Year DiscTech Warranty
