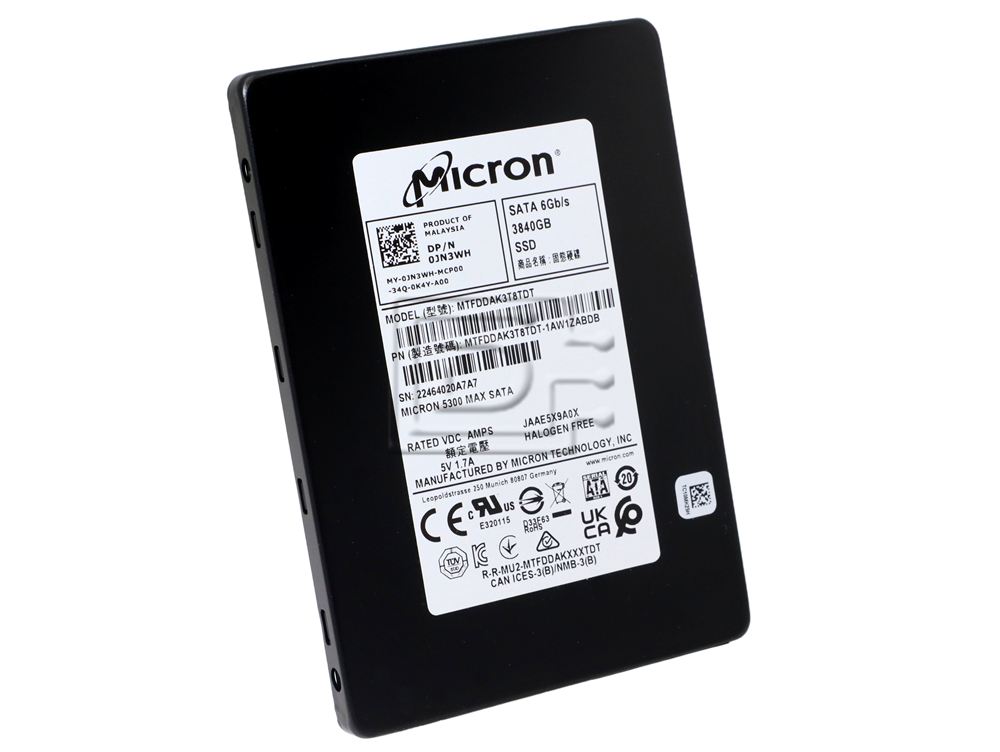

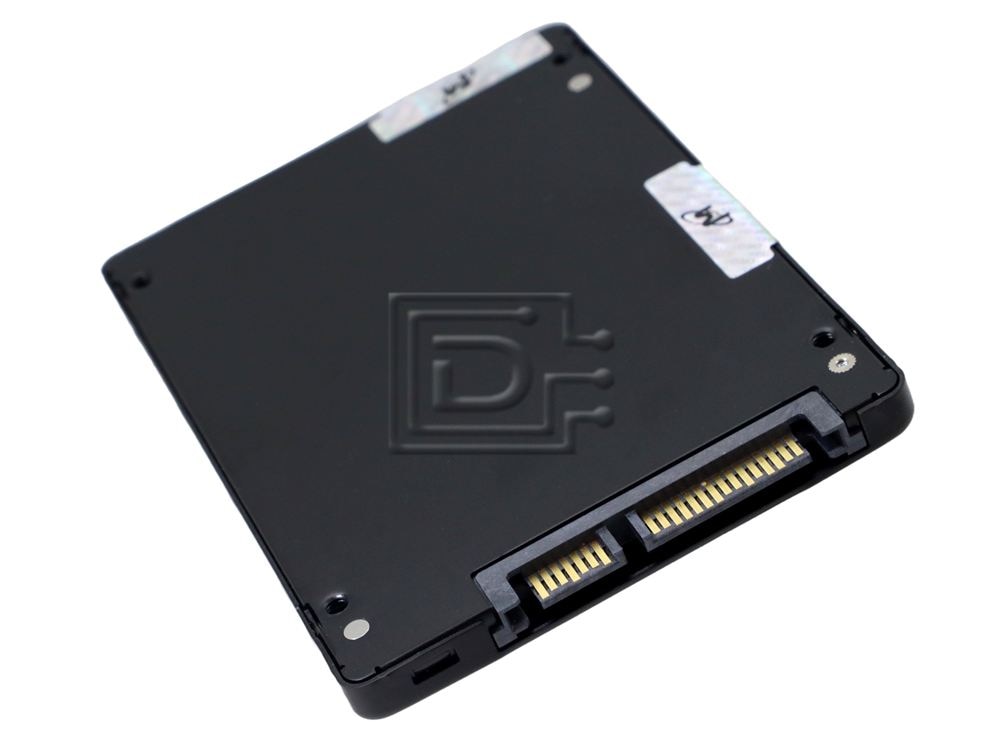

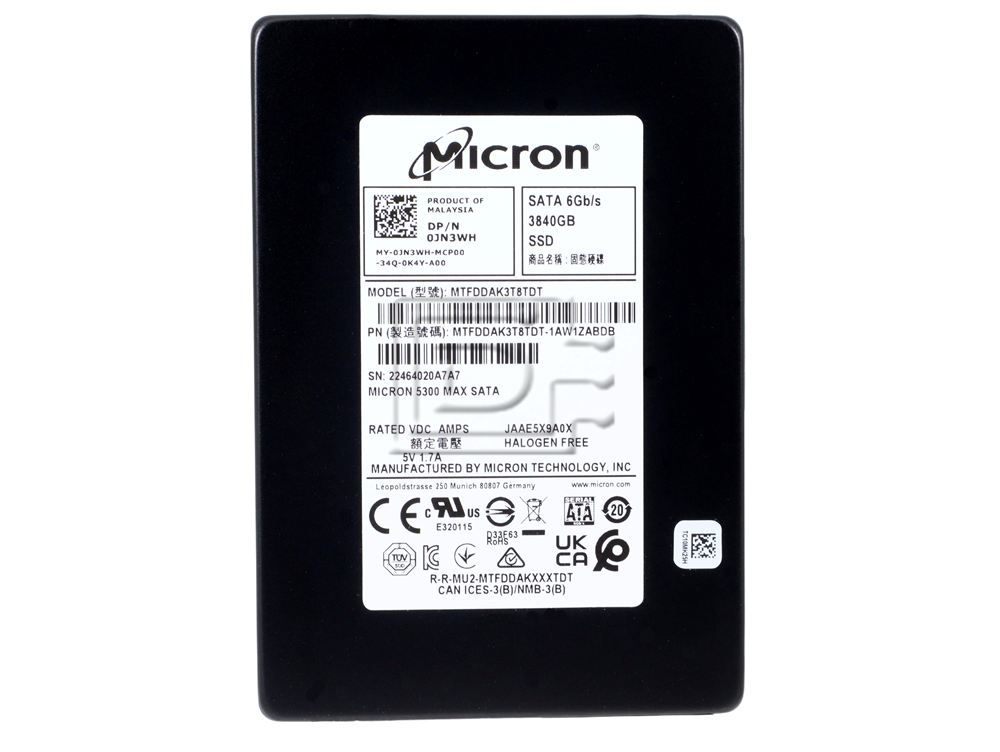

Micron 5300 MAX 3.84TB SATA 6Gbps SED Mixed Use 2.5in SSD MTFDDAK3T8TDT-1AW16ABDB Dell JN3WH
- In Stock:12Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 3.84TB |
| Speed: | Solid State |
| Interface Types: | SATA |
| Form Factor: | 2.5" x 7mm Fits All laptops |
| SSD Endurance DWPD: | Enterprise Mixed Use / MU |
| Electrical Interface: | SATA 600 - 6Gbps |
Description
Dell JN3WH Micron 5300 MAX MTFDDAK3T8TDT-1AW16ABDB 3.84TB SATA 6Gbps SED TCG eSSC Mixed Use 2.5" 7mm 3D TLC Enterprise Solid State Drive SSD - Brand New
Micron 5300 MAX SATA SSD: Enterprise Endurance for Proven SATA Infrastructure
The Micron 5300 MAX series is designed for data centers and enterprise storage environments that need strong mixed-use endurance while continuing to use widely deployed SATA infrastructure. Built with Micron 96-layer 3D TLC NAND and a 6Gb/s SATA interface, the 5300 MAX delivers consistent enterprise performance, high reliability, and robust data protection for server, storage, cloud, virtualization, database, and block/object storage workloads.
Key Features and Benefits
- Enterprise SATA Performance: Delivers up to 540 MB/s sequential read and up to 520 MB/s sequential write performance, maximizing the bandwidth available to SATA storage platforms.
- Mixed-Use Endurance: The 5300 MAX family is optimized for higher-write enterprise workloads, with the 3.84TB model rated for 24,528 TBW.
- 96-Layer 3D TLC NAND: Uses Micron 3D TLC NAND technology for a balance of performance, endurance, and enterprise reliability.
- Enterprise Data Protection: Includes power-loss protection, end-to-end data path protection, SMART monitoring, secure firmware, and adaptive thermal monitoring.
- Security Features: Self-encrypting drive configurations support hardware AES-256 encryption and TCG Enterprise security features when enabled by the host environment.
- Reliable 24/7 Operation: Designed for enterprise server and storage environments with a 3.0 million hour MTTF rating and UBER of less than 1 sector per 10^17 bits read.
- Easy SATA Integration: The 2.5-inch hot-plug capable design allows deployment in existing SATA server and storage systems without moving to a different drive interface.
Best-Fit Applications
- Enterprise servers and storage arrays
- Virtualization and VDI environments
- Online transaction processing and database workloads
- Block and object storage
- Business intelligence and decision-support systems
- Cloud and data center SATA SSD refresh projects
Why Choose Micron 5300 MAX?
Micron 5300 MAX SSDs are a strong choice for customers who need enterprise-class mixed-use endurance, proven SATA compatibility, and solid data protection features in a familiar 2.5-inch drive format. They help extend the life of SATA-based infrastructure while improving responsiveness, consistency, and reliability compared with hard drive storage.
Compatibility
This 2.5-inch SATA solid state drive is compatible with servers, workstations, storage arrays, and hot-swap drive bays that support 2.5-inch 7mm SATA 6Gb/s SSDs. For best results, confirm that the target system, backplane, carrier, and RAID/HBA controller support SATA SSDs, 512-byte sector drives, and the required enterprise drive firmware behavior.
Specifications
| Micron 5300 MAX SSD MTFDDAK3T8TDT-1AW16ABDB Dell JN3WH | |
| Brand | Micron / Dell |
| OEM / Cross Reference Part Number | Dell JN3WH / 0JN3WH |
| Manufacturer Platform | Micron 5300 MAX |
| Manufacturer Part Number | MTFDDAK3T8TDT-1AW16ABDB |
| Capacity | 3.84TB / 3840GB |
| Interface | SATA III |
| Interface Speed | 6Gb/s |
| Form Factor | 2.5-inch, 7mm |
| Flash Memory Technology | Micron 96-layer 3D TLC NAND |
| Endurance Class | Mixed Use |
| Drive Writes Per Day | Approximately 3.5 DWPD over 5 years |
| Total Bytes Written | 24,528 TBW |
| Sector Size | 512-byte |
| Encryption / Security | SED, AES-256 hardware encryption, TCG Enterprise / TCG eSSC |
| FIPS | Not verified |
| Sequential Read | Up to 540 MB/s |
| Sequential Write | Up to 520 MB/s |
| Random Read IOPS | Up to 95,000 IOPS |
| Random Write IOPS | Up to 34,000 IOPS |
| Latency | Random read 175µs to 200µs; random write 100µs to 650µs, configuration dependent |
| Mean Time To Failure | 3.0 million device hours |
| Unrecoverable Bit Error Rate | <1 sector per 1017 bits read |
| Hot-Plug Support | Yes, 2.5-inch model |
| Enterprise Features | Power-loss protection, end-to-end data path protection, SMART, secure firmware, adaptive thermal monitoring, RAIN |
| Idle Power | 1.5W average |
| Sequential Write Power | 3.8W average |
| Sequential Read Power | 2.5W average |
| Operating Temperature | 0°C to 70°C |
| Dimensions | 100.45mm x 69.85mm x 7.00mm |
| Weight | <70g |
Alternate MPNs: JN3WH 0JN3WH MTFDDAK3T8TDT MTFDDAK3T8TDT-1AW16ABYY
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
