Micron 5300 MAX MTFDDAK3T8TDT-1AW15ABYY / MTFDDAK3T8TDT-1AW12ABMA 3.84 TB SATA Solid State Disk

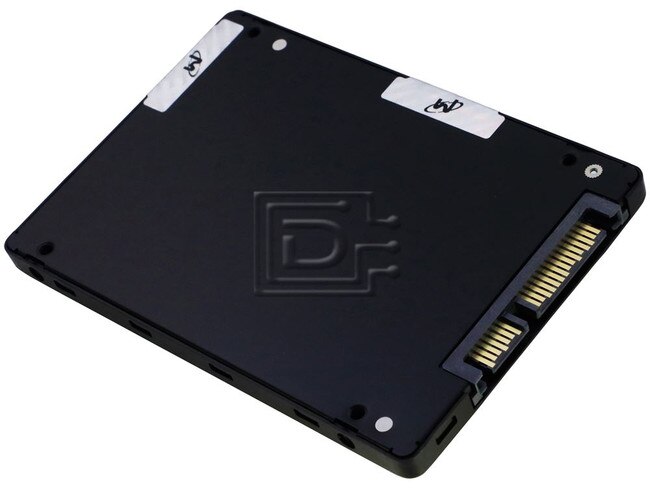

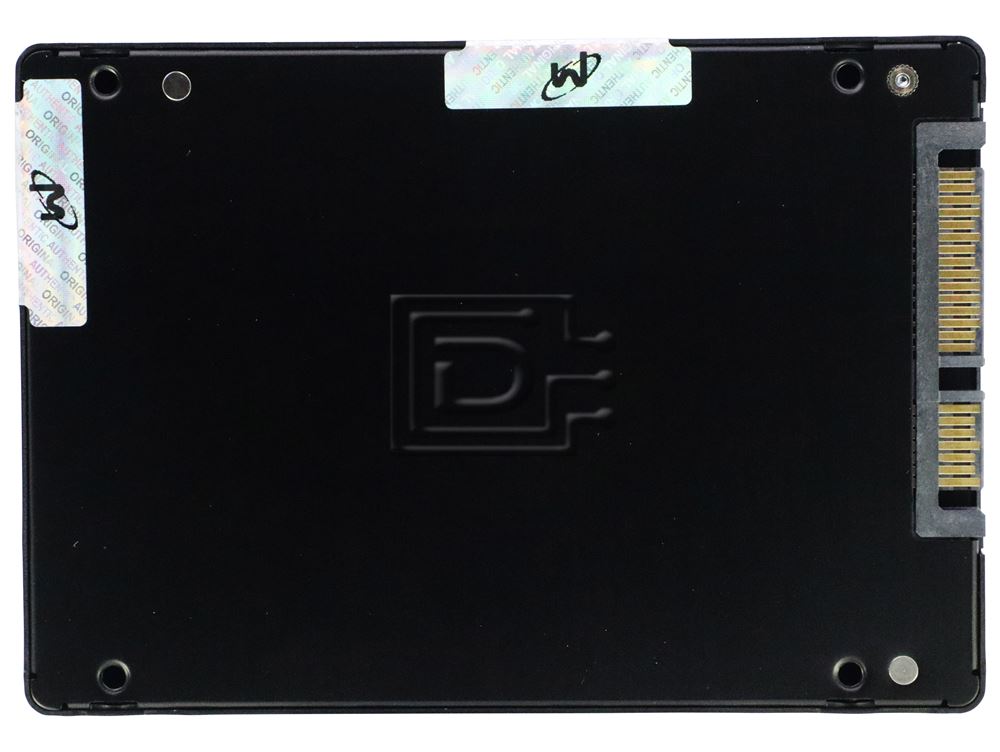

Micron MTFDDAK3T8TDT-1AW12ABMA MTFDDAK3T8TDT-1AW15ABYY SATA Solid State Drive Image 1 imageMicron MTFDDAK3T8TDT-1AW12ABMA MTFDDAK3T8TDT-1AW15ABYY SATA Solid State Drive Image 2 imageMicron MTFDDAK3T8TDT-1AW12ABMA MTFDDAK3T8TDT-1AW15ABYY SATA Solid State Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$695.00

Capacity:3.84TB
Speed:Solid State
Interface Types:SATA
Form Factor:2.5" x 7mm Fits All laptops
SSD Endurance DWPD:Enterprise Mixed Use / MU
Electrical Interface:SATA 600 - 6Gbps
Click to see more 3.84TB SATA Solid State Drives

Description

Micron 5300 MAX MTFDDAK3T8TDT-1AW15ABYY / MTFDDAK3T8TDT-1AW12ABMA / Dell W6G21 0W6G213.84 TB 2.5" 6Gbps 3D NAND TLC Mixed-Use Tcg-opal SATA Solid State Drive - Brand New

Micron 5300 MAX MTFDDAK3T8TDT-1AW12ABMA / Dell W6G21 0W6G213.84TB / 3840GB 2.5" 6.0 Gb/s eTLC / Enterprise Triple Level Cell MU / Mixed-Use 3-5 DWPD / Drive Writes Per Day SATA / Serial ATA SSD / Solid State Drive - Brand New

The SSD is designed to use the SATA interface efficiently during both READs and WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption and extended reliability.

Micron 5300 SSD with TCG Opal encryption: These SEDs are well suited for server and storage platform boot-up. A TCG Opal drive provides pre-boot authentication (PBA) for secure server password entry before the OS boot process starts.

Features

  • Micron® 3D TLC NAND Flash
  • Three performance/endurance levels
    • BOOT
    • PRO
    • MAX
  • TCG Enterprise compliant self-encrypting drive (SED)
  • SATA 6 Gb/s interface
  • ATA modes supported
    • PIO mode 3, 4
    • Multiword DMA mode 0, 1, 2
    • Ultra DMA mode 0, 1, 2, 3, 4, 5, 6
  • 512-byte sector size support
  • Hot-plug capable
  • Native command queuing support with 32-command slot support
  • ATA-8 ACS-3 revision 5 command set compliant
  • ATA security feature command set and password login support
  • Security erase command set: fast and secure erase
  • Performance (steady state)
    • Sequential 128KB read: Up to 540 MB/s
    • Sequential 128KB write: Up to 520 MB/s
    • Random 4KB read: Up to 95,000 IOPS
    • Random 4KB write: Up to 75,000 IOPS
  • Quality of Service
    • Read/Write (99.9%): 200µs/300µs
    • Read/Write (99.999%): 1000µs/700µs
  • Endurance : Total bytes written (TBW)
    • Up to 24528TB
  • Reliability
    • MTTF: 3.0 million device hours
    • Static and dynamic wear leveling
    • Uncorrectable bit error rate (UBER): <1 sector per 10e17 bits read
    • End-to-end data protection
    • Enhanced power-loss data protection with data protection capacitor monitoring
  • Self-monitoring, analysis, and reporting technology (SMART) command set
  • Capacity (unformatted): 240GB, 480GB, 960GB, 1920GB, 3840GB, 7680GB
  • Mechanical:
    • 2.5-inch x 7.0mm form factor
  • RoHS-compliant package
  • Secure field-upgradeable firmware with digitally signed firmware image
  • Power consumption:
    • <3.9W(TYP, 5V only)
  • Operating temperature
    • Commercial (0°C to 70°C)

Compatibility

This drive is compatible with servers and arrays that accept 2.7" x 7mm Slim Line SATA drives

Specifications

Micron 5300 MAX
Model NumberMTFDDAK3T8TDT-1AW15ABYY / MTFDDAK3T8TDT-1AW12ABMA / Dell W6G21 0W6G21
Technical Specification
BrandMicron
ManufacturerMicron Enterprise SSD
Model5300 MAX
Capacity3.84TB / 3840GB
Encryption DetailsTcg-opal
Form Factor2.5in (6.4cm)
Sequential Read (128KB transfer)540
3.0W
Sequential Write (128KB transfer)520
3.9W
Random Read (4KB transfer)95,000
Random Write (4KB transfer)34,000
Random 70/30 R/W (4KB transfer)60,000
Read latency (99.9%)250µs
Write latency (99.9%)200µs
Read latency (99.999%)700µs
Write latency (99.999%)500µs
Drive Lifetime (Total Bytes Written)24,528TB DWPD: 3-5
Voltage Input

Symbol

  • V12
  • V5


Min

  • 10.8V
  • 4.5V


Max

  • 13.2V
  • 5.5V
Operating temperatureMin: 0°C
Max: 70°C
Non Operating temperatureMin: -40°C
Max: 85°C
Rate of temperature changeMax: 20°C/hour
Relative humidity (non-condensing)Min: 5%
Max: 95%
Min Operating Temperature32°F
Non-operating shock1500G/0.5ms
Non-operating vibration5–800Hz at 3.13 Grms
Uncorrectable Bit Error Rate<1 sector per 10e17 bits
MTTF3.0 million
Idle Average1.5W
Flash Type3D TLC
Dimensions (W x L x H)69.85mm x 100.45mm x 7.00mm

Alternate MPNs: MTFDDAK3T8TDT-1AW15ABYY

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
