Micron Part #/MPN: MTFDDAK7T6TDS-1AW12ABMA
DiscTech Item #: MIC-MTFDDAK7T6TDS-1AW12ABMA-BN-OE-DEG
- Brand New
- Warranty:1 Year DiscTech
- In Stock:64Need more?
Enterprise Grade
Capacity: 7.68TB
Speed: Solid State
Interface Types: SATA
Form Factor: 2.5" x 7mm Fits All laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Electrical Interface: SATA 600 - 6Gbps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive / RI

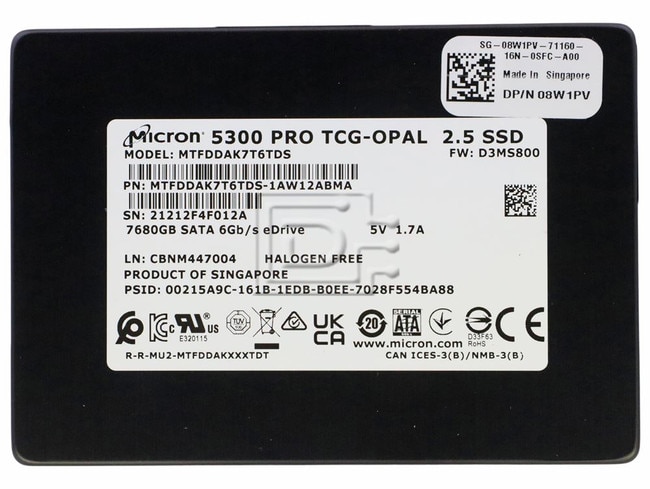

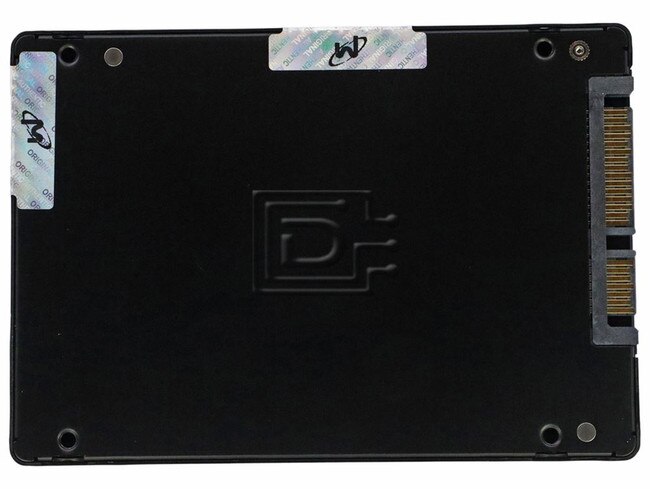

Micron MTFDDAK7T6TDS-1AW12ABMA 5300 PRO / Dell 8W1PV / 7.68TB 2.5 7mm Read Intensive SED Enterprise SATA SSD - Brand New OEM
Micron MTFDDAK7T6TDS-1AW12ABMA 5300 PRO / Dell 8W1PV / 7.68TB 2.5 7mm Read Intensive SED Enterprise SATA SSD - Brand New OEM
The Micron 5300 Self-Encrypting Drive: Solid and Secure
The Micron© 5300 SSD is available in models that include Micron’s solid, secure firmware features plus 256-bit hardware encryption that follows the Trusted Computing Group’s (TCG’s) Security Subsystem Class (SSC) Enterprise specification for storage devices for servers and data center applications.
The Micron 5300 self-encrypting drive, or “SED,” supports three modes of encryption protection, each operating with the drive’s on-board AES-256 encryption engine:
• TCG Enterprise1: Provides a higher level of security and manageability than ATA Security. It supports the industry standard from TCG, with the capability to manage multiple passwords and encryption keys for each drive.
• TCG Opal1: Supports pre-boot authentication (OS-range unlocking for boot-up) and other TCG Opal-specific features.
• ATA Security: Provides basic protection by locking access to the drive using the ATA password, most frequently set and managed by the host system BIOS or UEFI.
Micron 5300 SEDs meet industry standards set by TCG. Encryption is implemented in XTS mode, improving upon previously deployed Cipher Block Chaining (CBC) modes.
ALT MPN: MTFDDAK7T6TDS-1AW1 / 4FR0V / 04FR0V
Compatibility:
This SSD will work in any system that supports 7.68TB 2.5" SATA drives.
| Micron 5300 PRO Series 7.68TB Enterprise SATA SSD | |
|---|---|
| Model Number | MTFDDAK7T6TDS-1AW12ABMA |
| Alt Model Numbers | MTFDDAK7T6TDS |
| Interface | SATA 6Gb/s |
| Capacity | 7.68TB |
| Block | 512k |
| SED Encryption | SED TCG eSSC |
| NAND | Micron 96-layer 3D TLC NAND |
| Form Factor | 2.5" x7mm |
| Type | Enterprise |
| 99.9% Latency | Random read. 175us to 200us; Random write 100us to 650us |
| Interface transfer rate (MB/s, max) | 600 |
| Sustained transfer rate Read / Write (MB/s, typical) | 540 / 520 |
| Random Read (K IOPS) | 95K |
| Random Write (K IOPS) | 11K |
| Endurance | Read Intensive |
| TBW | 9110 Lifetime |
| DWPD | 0.65 |
| Availability (hrs/day x days/wk) | 24x7 |
| MTBF | 3 million device hours |
| Requirements | +5V, +12V |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 8W1PV 08W1PV
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
