Micron 9300 Max 3.2TB Mixed Use PCIe 3.0 NVMe U.2 2.5in 15mm 3DWPD Enterprise SSD MTFDHAL3T2TDR DPN V84RX

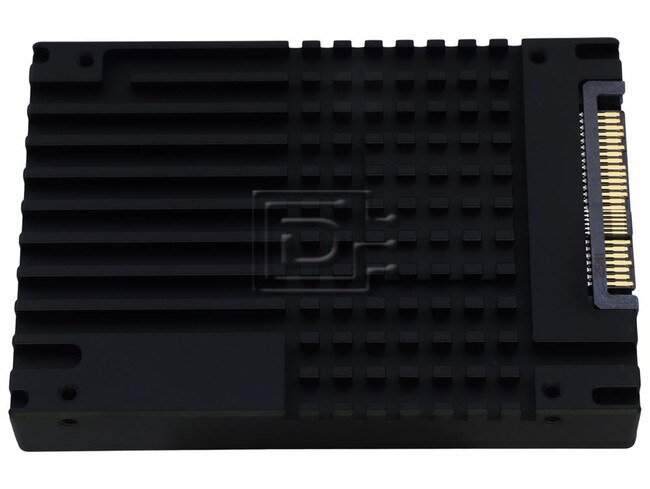

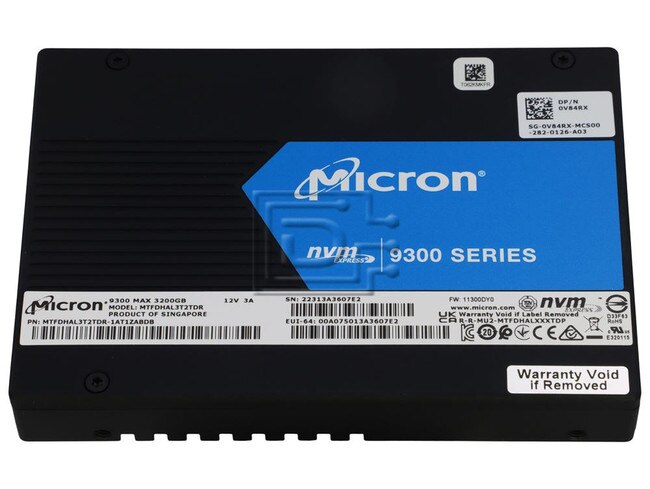

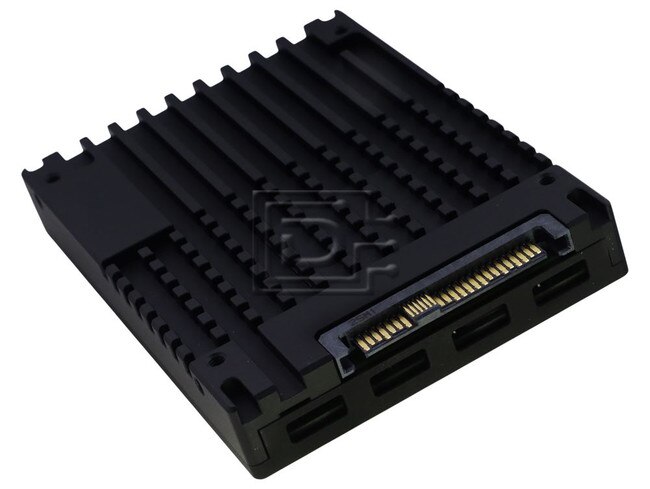

Micron MTFDHAL3T2TDR-1AT1ZABYY V84RX 0V84RX MTFDHAL3T2TDR-1AT1ZABYY 3.2TB U.2 MU SSD 9300 Max Micron Dell Image 1 imageMicron MTFDHAL3T2TDR-1AT1ZABYY V84RX 0V84RX MTFDHAL3T2TDR-1AT1ZABYY 3.2TB U.2 MU SSD 9300 Max Micron Dell Image 2 imageMicron MTFDHAL3T2TDR-1AT1ZABYY V84RX 0V84RX MTFDHAL3T2TDR-1AT1ZABYY 3.2TB U.2 MU SSD 9300 Max Micron Dell Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Special Order - Call for Lead Time
    Special Order - Call for Lead Time

    This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$499.00

Capacity:3.2TB
Speed:Solid State
Interface Types:NVMe U.2
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Mixed Use / MU
Electrical Interface:PCIe 3.0 16GBps
Click to see more 3.2TB NVMe U.2 Solid State Drives

Description

Micron 9300 Max MTFDHAL3T2TDR-1AT1ZABDB / MTFDHAL3T2TDR-1AT1ZABYY 3.2TB 2.5" U.2 3D TLC Mixed-Use PCIe 3.0 NVMe Solid State Drive – Brand New OEM

Enterprise-Grade Storage Performance - Micron 9300 Max

Key Specifications

▪ Form Factor: 2.5" U.2 (15mm)

▪ Interface: PCIe 3.0 x4 NVMe

▪ NAND Type: 3D TLC

▪ Endurance: Mixed Use 3 DWPD

▪ Power Efficiency: 28% Better vs Previous Gen

Performance Highlights

▪ Seq. Read/Write: Up to 3.5GB/s

▪ 4K Random Read: 800K IOPS

▪ Avg. Write Latency: <20μs

▪ Namespaces: Up to 32

Ideal For

▪ AI/ML Training

▪ OLTP Databases

▪ NoSQL Clusters

▪ High-Frequency Trading

▪ Big Data Analytics

Technical Breakdown

Uncompromising Performance

▪ Sustained sequential read/write speeds up to 3.5GB/s

▪ Industry-leading low latency (sub-20μs write latency)

▪ 4KB random read performance: 800,000 IOPS

Enterprise Features

▪ 32 NVMe namespaces for multitenant environments

▪ TCG Enterprise encryption support

▪ Power loss protection

Endurance & Reliability

▪ 3 Drive Writes Per Day (DWPD) rating

▪ 2M hours MTBF

▪ Advanced error correction (LDPC)

Compatibility

This drive is compatible with servers and arrays that accept 2.5” 15mm SFF PCIe NVMe drives

Specifications

9300 MAX
Model NumberMTFDHAL3T2TDR-1AT1ZABDB
Key Specifications
SSD FamilyMAX
Form FactorU.2
Capacity3.2TB / 3200GB
Performance

Seq Read (MB/s)

  • 3500

Seq Write (MB/s)

  • 3100

Rand Read (K IOPS)

  • 835

Rand Write (K IOPS)

  • 210
Endurance (Terabytes Written in PB18.6
Mixed-Use
3 Drive Writes Per Day
Basic Attributes

Interface

  • PCIe Gen3 x4 NVMe

Form Factor

  • U.2 (2.5-inch, 15mm)

NAND

  • Micron 64-layer 3D TLC NAND

Average Latency

  • Random read: 86µs
  • Random write: 11µs
Reliability

Mean Time to Failure

  • 2 million device hours

UBER

  • < sector per 1017 bits read
Environmental Characteristics

Power

  • Sequential read: 14W MAX
  • Sequential write: 21W MAX

Operating Temp

  • 0-70°C
Physical Characteristics

Size (L x W xH)

  • 100.45mm x 70.10mm x 15.00mm

Weight

  • <235g
Advanced Features
  • Up to 32 NVMe namespaces
  • crypto erase
  • Flex Capacity feature
  • powerloss protection (for data in flight and at rest)
  • enterprise data path protection (user and metadata)
  • Storage Executive SSD management tool
  • secure signed firmware
Click here to view the manufacturer's item description/brochure

Alternate MPNs: V84RX 0V84RX MTFDHAL3T2TDR-1AT1ZABYY

Weight: 1.5 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
