Micron Part #/MPN: MTFDDAT256MBF
DiscTech Item #: MIC-MTFDDAT256MBF-RF-OE
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:6Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Capacity: 256GB
Speed: Solid State Memory
Interface Types: SATA 1.8in Mini-SATA / MSATA
Form Factor: 1.8inx3.5mm Ultrathin Caseless
Sector Size: 512 / 512e
Sustained Throughput: 560/510
Average Seek Time: 120/30 µs
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

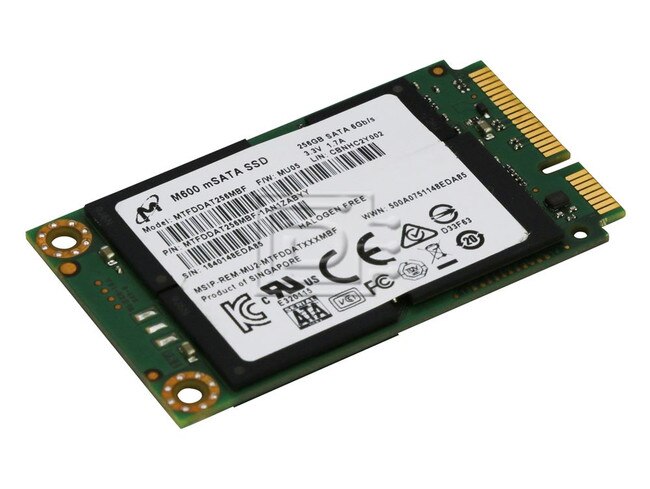

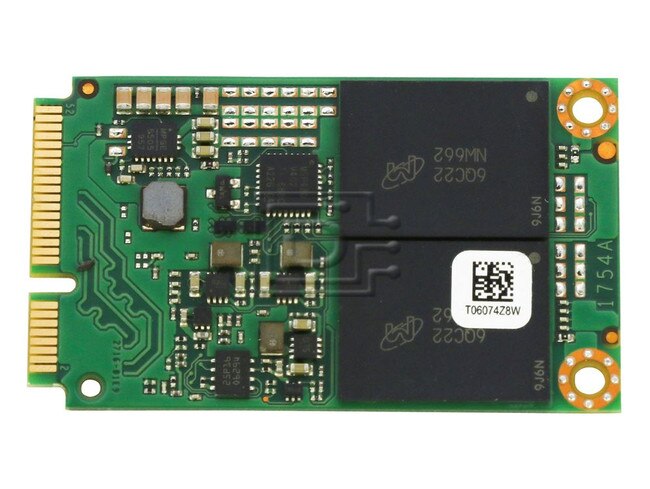

Micron M600 MTFDDAT256MBF / MTFDDAT256MBF-1AN1ZABYY 256GB 1.8" 6Gbps 512 mSATA SSD - Refurbished
Micron MTFDDAT256MBF / MTFDDAT256MBF-1AN1ZABYY M600 Series 256GB 1.8" 6.0 Gb/s MLC / Multi Level Cell NAND Flash 512-byte Consumer / 0.428-DWPD mSATA / Mini-Serial ATA SSD / Solid State Drive - Refurbished
General Description:
Micron’s solid state drive (SSD) uses a single-chip controller with a SATA interface on
the system side and eight channels of Micron NAND Flash internally. Packaged in an
HDD replacement enclosure, the SSD integrates easily in existing storage infrastructures.
The SSD is designed to use the SATA interface efficiently during both READs and
WRITEs while delivering bandwidth-focused performance. SSD technology enables enhanced boot times, faster application load times, reduced power consumption, and extended reliability.
The self-encrypting drive (SED) features a FIPS-compliant, AES-256 encryption engine,
providing hardware-based, secure data encryption, with no loss of SSD performance.
This SED follows the TCG/Opal specification for trusted peripherals.
When TCG/Opal features are not enabled, the device can perform alternate data encryption by invoking the ATA security command set encryption features, to provide fulldisk encryption (FDE) managed in the host system BIOS. TCG/Opal and ATA security
feature sets cannot be enabled simultaneously.
The data encryption is always running; however, encryption keys are not managed and
the data is not secure until either TCG/Opal or ATA security feature sets are enabled.
Compatibility:
This drive is compatible with servers and arrays that accept 1.8" mSATA drives.
| Micron M600 NAND mSATA SSD | |
|---|---|
| Model Number | MTFDDAT256MBF / MTFDDAT256MBF-1AN1ZABYY |
| Specification | |
| Capacity | 256GB |
| Category | PCs and Notebooks |
| Model | Micron M600 |
| Interface | mSATA 6 Gb/s |
| Sequential read (MB/s) | 560 |
| Sequential write (MB/s) | 510 |
| Random Read (IOPS) | 100K |
| Random Write (IOPS) | 88K |
| Read/Write Latency | 120/30µs |
| Mean Time to Failure (MTTF) | 1.5 million hours |
| Power consumption (Idle) | 70 mW |
| Power consumption(Active) | 150 mW |
ROHS Compliant
Alternate MPNs: MTFDDAT256MBF-1AN1ZABYY
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
