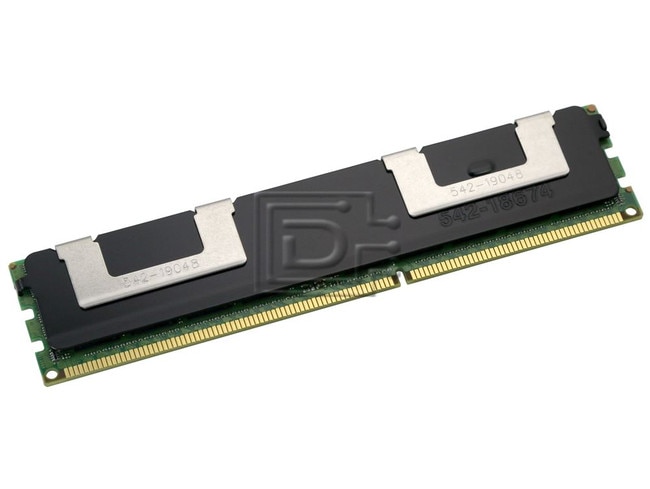

Micron MT72KSZS4G72PZ-1G4E2HE 32GB RAM PC3-10600R DDR3-1333MHz Certified ECC Memory Module
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
RAM is highly allocated and pricing is volatile currently. Call for quote & availability
| Interface Types: | DDR3 DIMM 240pin |
| Form Factor: | DDR3 RDIMM |
| Electrical Interface: | PC3-10600 |
| RAM: | 32GB |
Description
Micron MT72KSZS4G72PZ-1G4E2HE 32GB PC3-10600 DDR3-1333MHz CL9 240-Pin RDIMM Certified ECC RAM Memory Module - Brand New
Micron MT72KSZS4G72PZ-1G4E2HE 32GB PC3-10600 DDR3-1333MHz CL9 240-Pin RDIMM Certified ECC / Error Correction Code RAM / Random Access Memory Memory Module - Brand New
1.35V DDR3L SDRAM RDIMM
MT72KSZS4G72PZ - 32GB
- DDR3L functionality and operations supported
- 240-pin, registered dual in-line memory module (RDIMM)
- Fast data transfer rates: PC3-10600
- 32GB (4 Gig x 72)
- Heat spreader
- VDD = 1.35V (1.283–1.45V)
- VDD = 1.5V (1.425–1.575V)
- Backward compatible with standard 1.5V DDR3 systems VDDSPD = 3.0–3.6V
- Nominal and dynamic on-die termination (ODT) for data and strobe signals
- Quad rank, using 4Gb or 8Gb 1.35V TwinDie™ devices
- On-board I2C temperature sensor with integrated serial presence-detect (SPD) EEPROM
- 8 internal device banks
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Gold edge contacts
- Halogen-free
- Fly-by topology
- Terminated control, command, and address bus
Specifications
| Micron | |
|---|---|
| Part Number | MT72KSZS4G72PZ-1G4E2HE |
| Technology | DDR3 SDRAM |
| Density | 32GB |
| RoHS | Green |
| Comp. Count | 72 |
| Depth | 4Gb |
| Width | x72 |
| Op Temp | 0C to +95C |
| Data Rate | 1333 MT/s |
| Speed | PC3-10600 |
| CL | CL = 9 |
| Voltage | 1.35V |
| Comp. Config | 2Gb x 4 |
| ECC | ECC |
| Module Rank | Quad Rank |
| Register/td> | Parity |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
