Micron Part #/MPN: MTA18ASF2G72AZ-2G3
DiscTech Item #: MIC-MTA18ASF2G72AZ-2G3-NP-OE
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: DDR4 DIMM 288pin
Form Factor: DDR4 UDIMM
Electrical Interface: PC4-19200
On-Board Cache: 16GB
Voltage: 1.2V
Compatible Systems: Dell 13th Gen. R730/T630

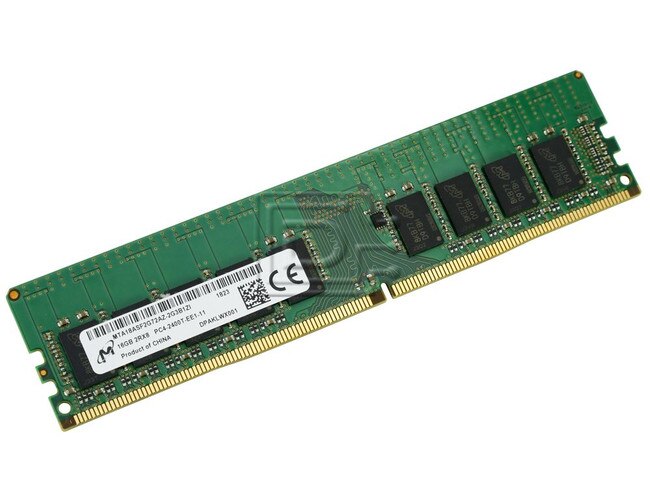

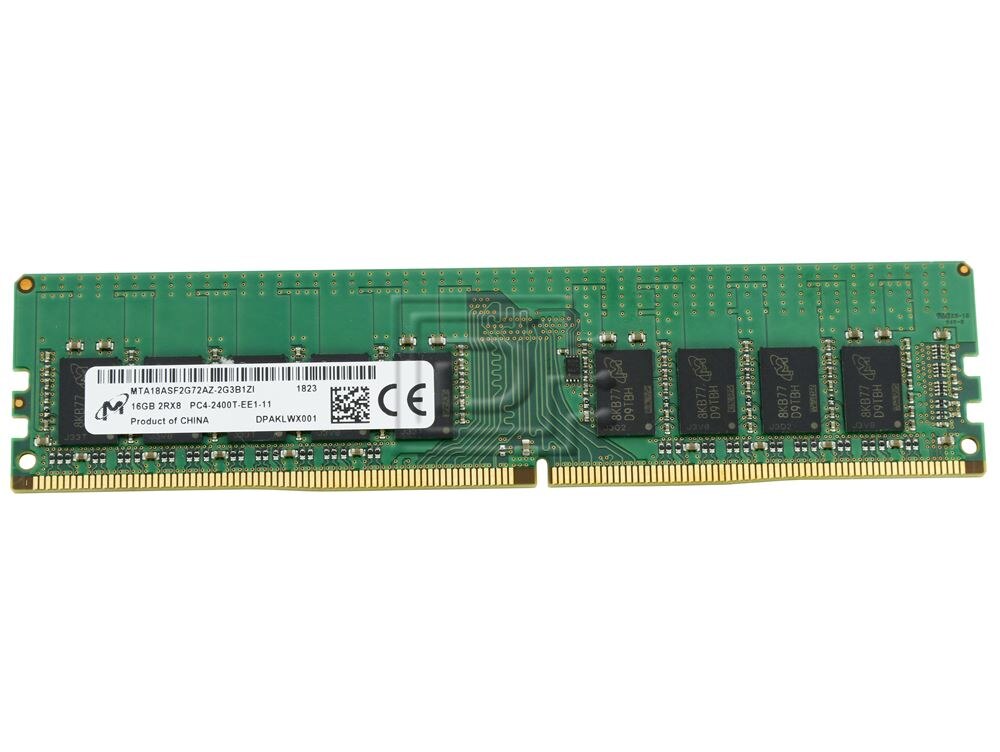

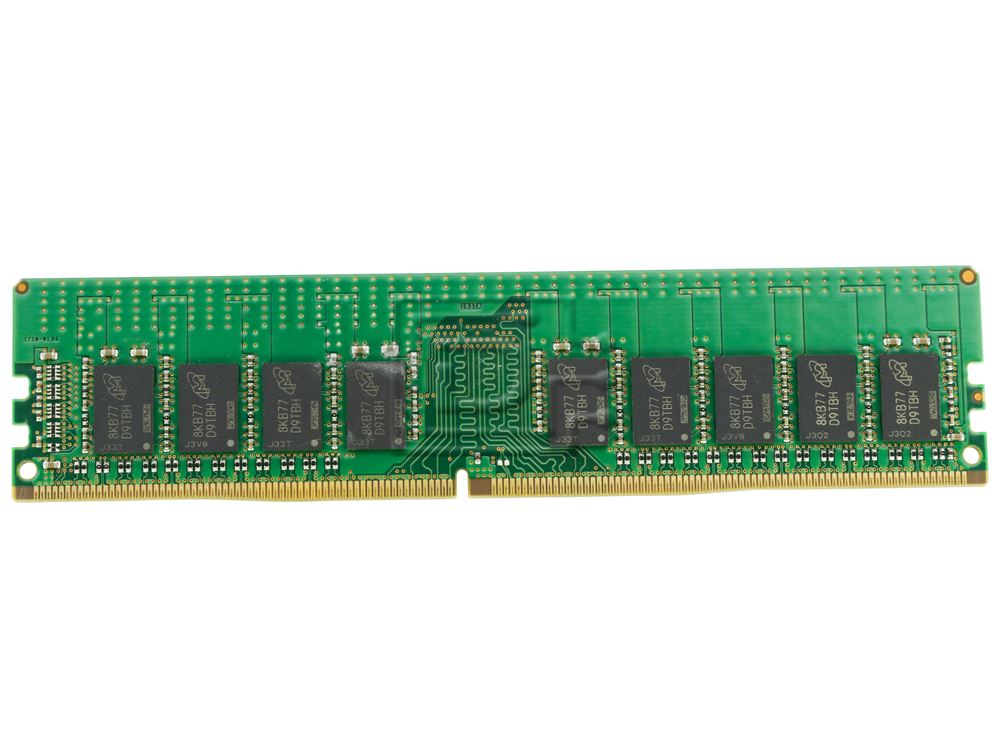

Micron MTA18ASF2G72AZ-2G3 / MTA18ASF2G72AZ-2G3B1 16GB DDR4 PC4-19200 2400MHz CL17 Unbuffered 2Rx8 ECC uDIMM 288-Pin Server RAM Memory Module - New Pull
Micron MTA18ASF2G72AZ-2G3 / MTA18ASF2G72AZ-2G3B1 / MTA18ASF2G72AZ-2G3A1 16GB DDR4 PC4-19200 2400MHz CL17 Unbuffered Dual Rank x8 ECC uDIMM 288-Pin Server RAM Memory Module - New Pull
New Crucial® DDR4 2400 MT/s Server Memory is now Micron
Features
• DDR4 functionality and operations supported as
defined in the component data sheet
• 288-pin, unbuffered dual in-line memory module
(UDIMM)
• Fast data transfer rates: PC4-3200, PC4-2666, or
PC4-2400
• 16GB (2 Gig x 72)
• VDD = 1.20V (NOM)
• VPP = 2.5V (NOM)
• VDDSPD = 2.5V (NOM)
• Supports ECC error detection and correction
• Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Dual-rank
• On-board I2C temperature sensor with integrated
serial presence-detect (SPD) EEPROM
• 4 internal device bank groups with 4 banks per
group produce 16 device banks
• Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
• Selectable BC4 or BL8 on-the-fly (OTF)
• Gold edge contacts
• Halogen-free
• Fly-by topology
• Terminated control, command, and address bus
Compatibility:
This memory module is compatible with servers supporting DDR4 unBuffered ECC memory
Micron 16GB DDR4-2400 uDIMM | |
---|---|
Part# | MTA18ASF2G72AZ-2G3B1 |
Product Specifications | |
Brand | Micron |
Form Factor | uDIMM |
Total Capacity | 16GB |
Specs | |
ECC | ECC |
Speed | 2400 MT/S |
Voltage | 1.2V |
DIMM Type | Registered |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: MTA18ASF2G72AZ-2G3B1 MTA18ASF2G72AZ-2G3A1
Weight: 0.5 lb
Warranty: 1 Year DiscTech
