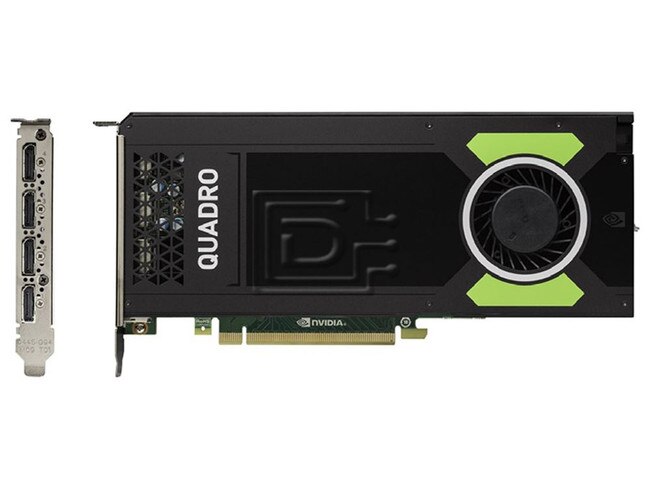

NVIDIA Quadro M4000 / YR7H5 8GB GDDR5 PCIe 3.0 x16 Quad Displayport GPU Graphics Card

NVIDIA Part #/MPN: M4000

DiscTech Item #: NVI-M4000-RF-OE-DEL

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: PCIe, DVI-D, DisplayPort, VGA

Electrical Interface: PCIe - v3.0 - 16GBps

On-Board Cache: 16GB

Wattage/VA: 180W

Resolution: 4096x2160

NVIDIA Quadro M4000 / YR7H5 8GB GDDR5 PCIe 3.0 x16 Quad DisplayPort GPU Graphics Card - Refurbished

NVIDIA Quadro M4000 / YR7H5 8GB GDDR5 PCIe 3.0 x16 Quad DisplayPort Graphics Card - Refurbished



  • Four DisplayPort 1.4 Connectors
  • DisplayPort with Audio
  • VGA Support
  • 3D Stereo Support with Stereo Connector
  • NVIDIA GPUDirect™ Support
  • Quadro Sync Compatibility
  • NVIDIA nView® Desktop Management Software Compatibility
  • HDCP 2.2 Support
  • NVIDIA Mosaic

Get real interactive expression with NVIDIA®  Quadro - The world’s most powerful workstation graphics.

The NVIDIA Quadro M4000 is accelerated by NVIDIA Maxwell™ GPU architecture, letting you easily tackle your most demanding visualization workloads with extreme performance and the flexibility of a single-slot form factor. 8 GB of GDDR5 GPU memory with fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there’s a new display engine that drives up to four 4K resolution displays natively with DisplayPort 1.2 support for ultrahigh resolutions like 4096 x 2160 @ 60 Hz with 30-bit color. Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock up to 16 4K displays in a
single system.
Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.


The NVIDIA M4000 graphics card is compatible with a variety of workstation-class systems that meet the card's system requirements, including but not limited to:

Dell Precision 5820 TowerDell Precision 7820 TowerDell Precision 7920 Tower
Dell Precision T7810Dell Precision T7610

GPU Memory8 GB GDDR5
Memory Interface256-bit
Memory BandwidthUp to 192 GB/s
NVIDIA CUDA® Cores1664
System InterfacePCI Express 3.0 x16
Max Power Consumption120 W
Thermal SolutionActive
Form Factor4.4” H × 9.5” L,  Single Slot, Full Height
Display Connectors4x DP 1.2
Max Simultaneous Displays4 direct,  DP 1.2 Multi-Stream
Max DP 1.2 Resolution4096 x 2160 @ 60 Hz
Max DVI-D DL Resolution2048 × 1536 @ 85 Hz
Graphics APIsShader Model 5.0
OpenGL 4.5
DirectX 12.0
Compute APIsCUDA, DirectCompute, OpenCL™

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 699-5G413-0500-100 900-5G413-0100-000 00MKC 000MKC 490-BDNN YR7H5 0YR7H5

Weight: 3 lb

Warranty: 1 Year DiscTech
