NVIDIA Part #/MPN: P100
DiscTech Item #: NVI-P100-BN-OE
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Interface Types: PCIe
Electrical Interface: PCIe - v3.0 - 16GBps
On-Board Cache: 16GB
Wattage/VA: 250W

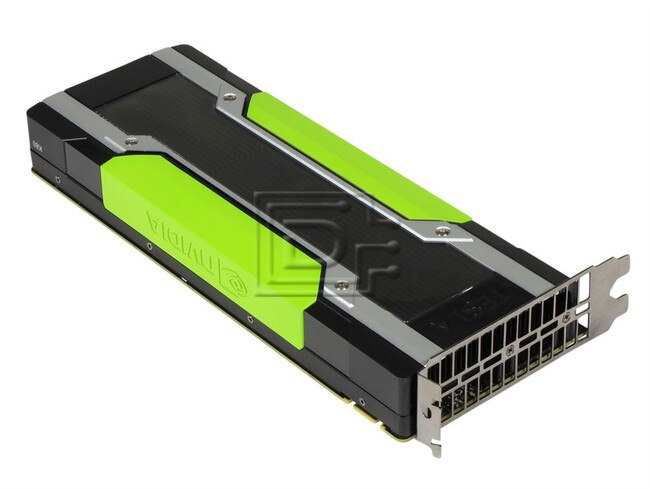

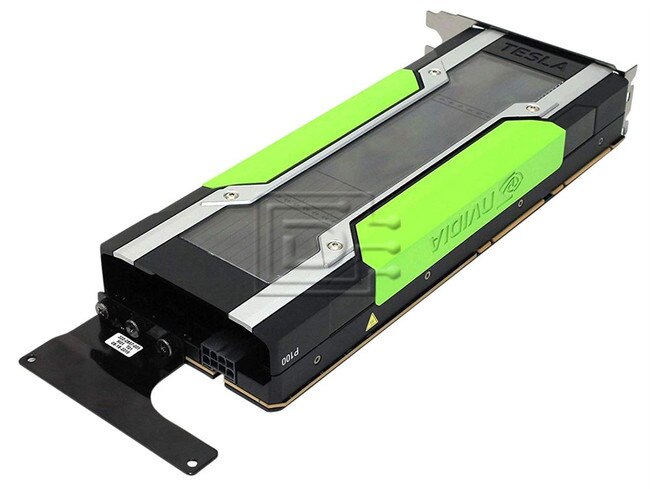

NVIDIA Tesla P100 900-2H400-0300 / 699-2H400-0201-530 / 868199-001 / 868585-001 / Q0E21A 16GB DDR PCIe Dual-Slot GPU Accelerator Graphic Card - Brand New
NVIDIA Tesla P100 900-2H400-0300 / 699-2H400-0201-530 / 868199-001 / 868585-001 / Q0E21A 16GB DDR PCI Express / PCIe 3.0 Dual-Slot Graphics Processing UnitGPU Accelerator Graphic Card - Brand New
NVIDIA TESLA P100 GPU ACCELERATOR
The NVIDIA® Tesla® P100 GPU Accelerator for PCIe is a dual-slot 10.5 inch PCI Express Gen3 card with a single NVIDIA® Pascal™ GP100 graphics processing unit (GPU). It uses a passive heat sink for cooling, which requires system air flow to properly operate the card within its thermal limits. The Tesla P100 PCIe supports double precision (FP64), single precision (FP32) and half precision (FP16) compute tasks, unified virtual memory and page migration engine.For performance optimization, NVIDIA GPU Boost™ feature is supported. By adjusting the GPU clock dynamically, maximum performance is achieved within the power cap limit.
Tesla P100 PCIe boards are shipped with ECC enabled by default to protect the GPU’s memory interface and the on-board memories. ECC protects the memory interface by detecting any single, double, and all odd-bit errors. The GPU will replay any memory transaction that have an ECC error until the data transfer is error-free. ECC protects the DRAM content by fixing any single-bit errors and detecting double-bit errors. There is no replay associated with ECC. The Tesla P100 PCIe with HBM2 memory has native support for ECC and has no ECC overhead, both in memory capacity and bandwidth.
For more information on compute capabilities, HBM2, unified virtual memory, and page migration engine visit NVIDIA official website.
The Tesla P100 for PCIe is available in two memory configurations:
- Tesla P100 PCIe with 16GB HBM2
- Tesla P100 PCIe with 12GB HBM2
As a board design, both the memory configurations are identical and this product brief covers both configurations.
| NVIDIA TESLA P100 GPU ACCELERATOR | |
|---|---|
| Model# | 900-2H400-0300 |
| Alt Model# | 699-2H400-0201-530 868199-001 868585-001 Q0E21A |
| Product Specifications | |
| Total board power | 250 W |
| PCI Device IDs | Device ID: |
| NVIDIA CUDA cores | 3584 |
| GPU clocks | Base |
| VBIOS | EEPROM size |
| PCI Express interfaces | PCI Express 3.0 ×16 Lane and polarity reversal supported |
| Power connectors and headers | One CPU 8-pin auxiliary power connector |
| Weight | Board |
| Memory Specifications | |
| Maximum memory clock | 725 MHz |
| Memory size | 16GB HBM2 |
| Memory bus width | 4096-bit |
| Peak memory bandwidth | Up to 732 GB/s |
| Software Specifications | |
| Compatibility mode supported | |
| Base address | BAR0: |
| PCI class code | 0x03 - Display Controller |
| PCI sub-class code | |
| ECC support | Supported (Enabled by default) |
| SMBus (8-bit address) | |
| SMBus direct access | Supported |
| SMBPBI (SMBus Post Box Interface) | Supported |
| Board Environment and Reliability Specifications | |
| Operating temperature | 0 °C to 45 °C |
| Storage temperature | 40 °C to 75 °C |
| Operating humidity | 5% to 90% relative humidity |
| Storage humidity | 5% to 95% relative humidity |
| Mean time between failures (MTBF) | Uncontrolled environment: |
| Thermal Specifications | |
| Total board power | 250 W |
| GPU shutdown temperature | 85 °C |
| GPU slowdown temperature (50% clock slowdown) | 82 °C |
| GPU maximum operating temperature | 80 °C |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 900-2H400-0300 699-2H400-0201-530 868199-001 868585-001 Q0E21A
Weight: 3.5 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
