NETGEAR Part #/MPN: ANT224D10
DiscTech Item #: NET-ANT224D10-BN-1Y
Item is out of stock. Please call for alternatives.
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

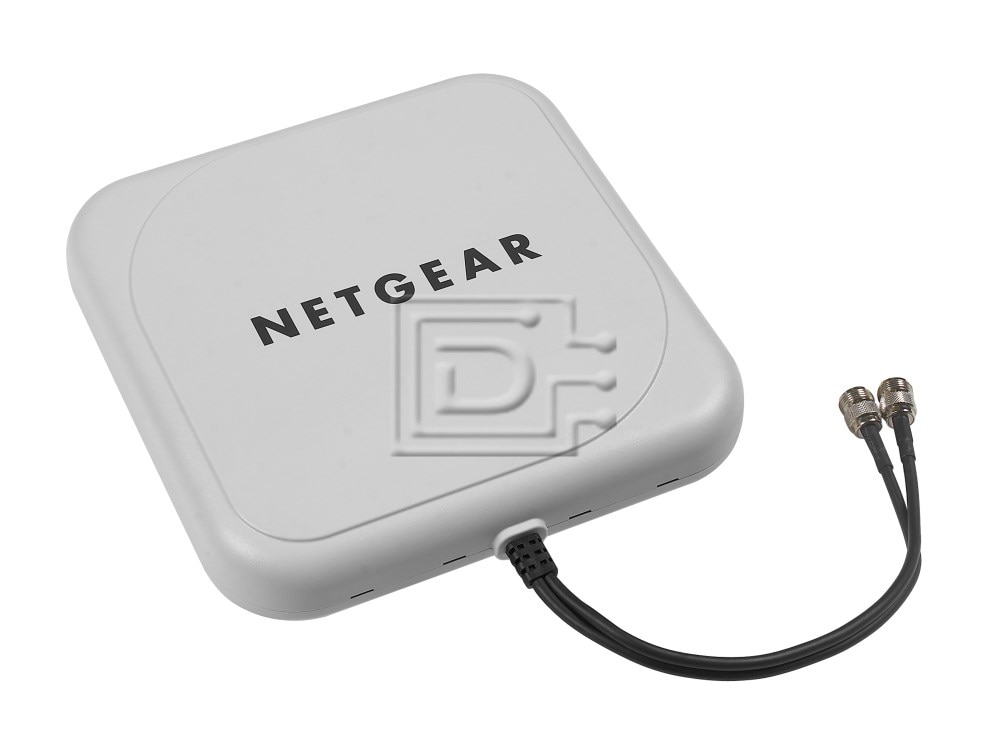

NetGear ProSAFE ANT224D10 10dBi 2x2 Indoor/Outdoor Directional Antenna - Brand New
NetGear ProSAFE ANT224D10 10dBi 2x2 Indoor/Outdoor Directional Antenna - Brand New
High speed. Big range. Serious durability.
Optimal for building-to-building deployments outdoors or floor-to-floor connectivity indoors, boost your RF signal in a specific direction for long range point-to-point connections with ProSAFE®10 DBI Directional antenna at wireless 802.11n speeds.
Optimize WLAN Range and Power with the ProSAFE® 10 dBi 2x2 Indoor/Outdoor Directional Antenna
The ANT224D10 2.4 GHz antenna provides extended range connectivity for point-topoint wireless bridges at wireless 802.11n speeds. With a maximum range of 8.5 KM, the ANT224D10 enables high speed connections for building-to-building deployments. Additionally, this antenna can be used indoors for floor-to-floor connectivity or to provide a narrow beam of coverage. Due to the multiple streams of traffic in the 802.11n specification, this antenna requires two antenna cables, which are available in a variety of lengths. It includes several mounting options and comes with wall/pole mounting hardware. Cables are sold separately.
NETGEAR ProSafe® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.
| ProSAFE® 10 DBI Antenna | |
|---|---|
| Model/Part No. | ANT224D10 |
| Wireless Signal | IEEE 802.11g |
| Typical Application | Indoor/Outdoor |
| Maximum outdoor Range | 8.5 km (5.28 miles) |
| Frequency Range | 2400 - 2500 MHz |
| Gain | 10 dBi |
| Beam Width | Horizontal 33° Vertical 32° |
| Polarization | Linear; Vertical |
| Operating Temperature | -30° to 80° C (-22° to 176° F) |
| Dimensions | 240 x 240 x 40 mm (9.45 x 9.45 x 1.57 in) |
| Weight | 0.7 kg (1.54 lb) |
| Connectors | |
| Package Contents | |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 2 lb
Warranty: 1 Year Manufacturer
Brand New
The product is brand new.
1 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
