NETGEAR Part #/MPN: FS116P
DiscTech Item #: NET-FS116P-BN-FW
Item is out of stock. Please call for alternatives.
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:Factory Warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Fast - 100Mbps
On-Board Cache: 2MB
Bays/Ports/Slots: 16
Voltage: 48V

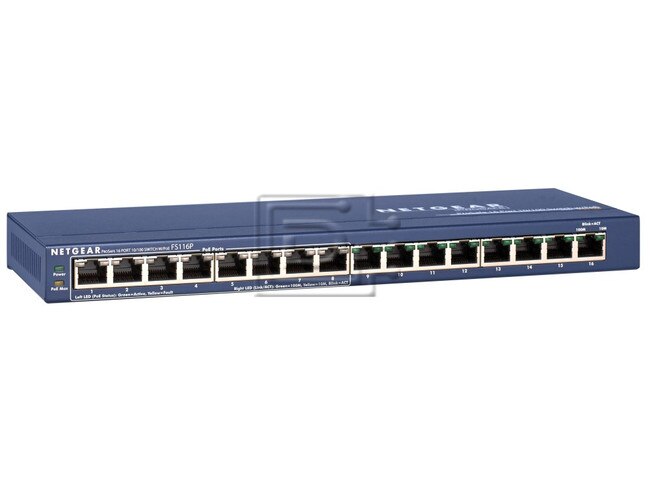

NetGear ProSAFE Fast Ethernet Unmanaged Switch Series FS116P 16-Port 10/100 Desktop Switch with 8-Port PoE - Brand New
NetGear ProSAFE Fast Ethernet Unmanaged Switch Series FS116P 16-Port 10/100 Desktop Switch with 8-Port PoE - Brand New
The ProSAFE FS116P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The sixteen Fast Ethernet ports can be used for any 10/100 Mbps link and eight of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to 802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the ProSAFE FS116P automatically determines PoE requirements, speed, duplex, and cable type using AutoUplink™.
The affordably priced ProSAFE FS116P delivers PoE to any small business network that wants to simplify the installation of VoIP phones, wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the ProSAFE FS116P is ideal for small business network that want to inexpensively use PoE to deploy IP phones, wireless access points and IP-based network surveillance cameras.
Flexible - Choose to plug in up to 16 Ethernet or Fast Ethernet devices and mix in up to eight 802.3af IP-based devices like wireless access points or IP-based network surveillance cameras. Place these 802.3 af-compliant devices where they belong - high up on walls and ceiling for maximum coverage - or anywhere else you need them. Power and data are carried over standard CAT-5 cabling.
Plug and Play - The standards-based ProSAFE FS116P senses and adjusts for network speed and cabling type automatically for easy integration into your existing 10/100 Ethernet network. For PoE, the switch automatically detects 802.3af compliant devices and supplies power as needed. Front panel LEDs keep you informed of switch and PoE status.
Quiet and Compact - Engineered for compact convenience, the FS116P is only 1-inch high and 4-inches deep with a durable metal case that is easily positioned on your desktop or a wall, using the included mounting hardware. The fanless design quietly integrates in your small office environment.
Energy Efficient - FS116P supports the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further saves energy when a short cable (<100m) is used.
Fast Ethernet Unmanaged Switch Series | |
---|---|
Model/Part No. | FS116P |
Speed | 10/100Mbps Fast Ethernet |
Number of Ports | 16 |
PoE Ports | 8 |
Total PoE Budget | 70W |
Loop Detection | N/A |
Short Cable Power Saving | Yes |
Energy Efficient Ethernet Support (IEEE802.3az) | Yes |
Jumbo Frame Support | N/A |
Queue WRR Ratio | 8:4:2:1 |
MAC Table Size | 8K |
Packet Buffer Size | 2Mb |
IEEE 802.1p QoS | Yes |
Dimensions (W x D x H) @mm | 286 x 102 x 27 |
Weight (kg) | 0.828 |
Max Power COnsumption | 80W |
Max Operating Temperature | 40C |
MTBF (hours) | 546,673 |
FCC Class | A |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: FS116Pv2
Weight: 2 lb
Warranty: Factory Warranty
Brand New
The product is brand new.
Factory Warranty Warranty
