NETGEAR Part #/MPN: GS105
DiscTech Item #: NET-GS105-BN-FW
Item is out of stock. Please call for alternatives.
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:Full Manufacturer WarrantyProduct Warranties Explained
The product has the full manufacturer warranty. If the item is new, then you will be covered for the full term of the warranty. If the item is not new, then the warranty period depends on the manufacture date of the item.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45
Electrical Interface: Ethernet Gigabit - 1Gbps
On-Board Cache: 128KB
Bays/Ports/Slots: 5
Voltage: 12V

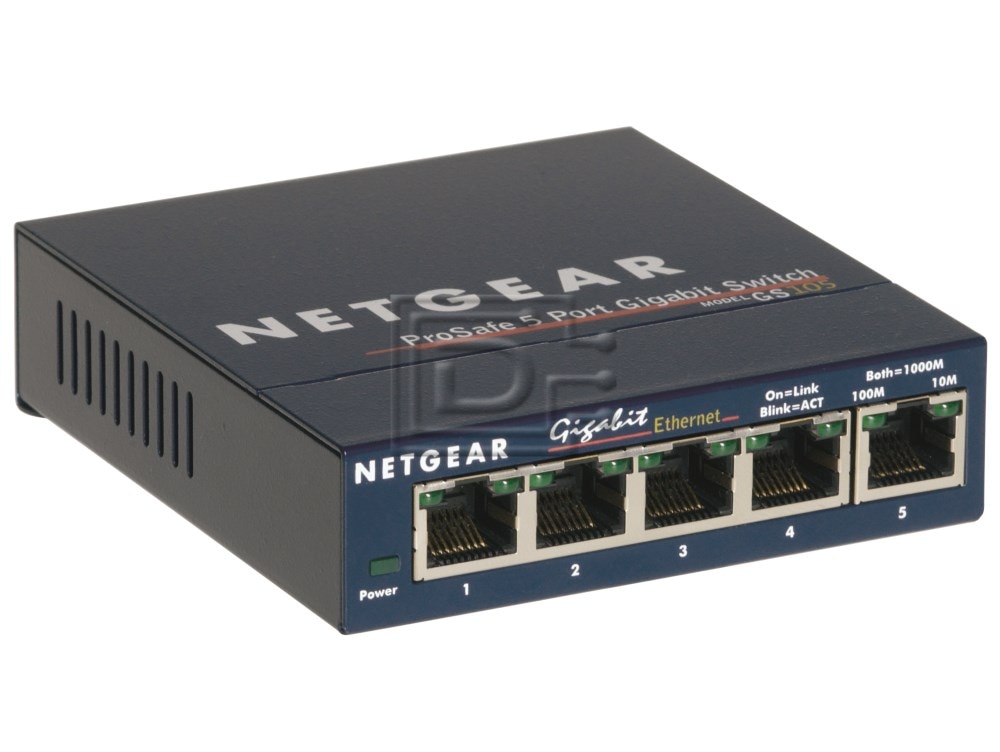

NetGear ProSAFE Gigabit Unmanaged Switch Series GS105 / GS105v5 5-Port 10/100/1000 Gigabit Ethernet Desktop Switch - Brand New
NetGear ProSAFE Gigabit Unmanaged Switch Series GS105 5-Port 10/100/1000 Gagibit Ethernet Desktop Switch - Brand New
Alt Model/Part No.: GS105v5
Instant Connectivity with Reliable Performance
The NETGEAR® ProSAFE® Gigabit Unmanaged Switch series helps businesses cost-effectively expand their network to Gigabit speeds and higher port counts. The GS105 and GS108 Gigabit Ethernet switches come with 5 and 8 Gigabit copper ports in a desktop metal case and is wall-mountable. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Plug and Play
- The standards-based ProSAFE Gigabit switches senses and adjusts for network speed and cabling type automatically. Easily integrates into your existing Ethernet network - no matter if it is running at 10/100Mbps or Gigabit speed
- Simple set up with no software or configuration needed
- Front panel LEDs keep you informed of power status, link speed and link activities
Traffic Prioritization
- Prioritize mission-critical applications such as voice and video Support IEEE 802.1 p and DSCP-based QoS for delivering data based on priority and type
High Quality and Reliable Performance
- Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
- Durable metal case and long product life (shown by MTBF numbers)
Energy Efficient
- Both GS105 and GS108 support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active ports or when there is no link or no activity detected. It can further save energy when a short cable (<100m) is used. Energy savings lead directly to cost savings in operation.
| Gigabit Unmanaged Switch Series | |
|---|---|
| Model/Part No. | GS105 |
| Alt Model/Part No. | GS105v5 |
| Speed | 10/100/1000Mbps Gigabit Ethernet |
| Number of Ports | 5 |
| PoE Ports | N/A |
| Total PoE Budget | N/A |
| Loop Detection | N/A |
| Short cable power saving | N/A |
| Energy Efficient Ethernet Support (IEE802.3az) | Yes |
| Jumbo Frame Support | Yes |
| Queue WRR Ratio | 1:2:4:8 |
| MAC Table Size | 4K |
| Packet buffer size | 128KB |
| IEEE 802.1p QoS | N/A |
| Dimensions (W x D x H) @mm | 99 x 102 x 27 |
| Weight (kg) | 0.264 |
| Max Power Consumption | 3.67W |
| Max Operating Temperature | 50° C |
| MFBF (hours) | 8,815,772 |
| FCC Class | B |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: GS105v5
