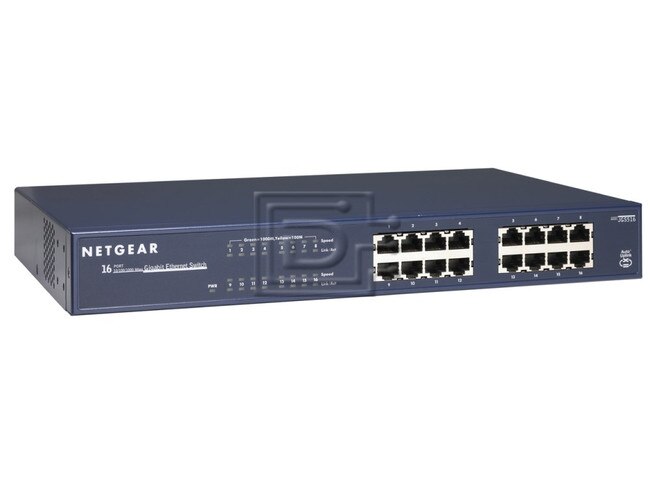

NetGear JG516 16-Port Ethernet Switch


DiscTech Item #: NET-JGS516-BN-FW


Item is out of stock. Please call for alternatives.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Item is out of stock. Please call for alternatives.

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 256KB

Bays/Ports/Slots: 16

U Height: 1U

Voltage: 110-240V Multi

NetGear ProSAFE Gigabit Unmanaged Series JGS516 / JGS516v2 16-Port 10/100/1000 Gigabit Ethernet Switch - Brand New

NetGear ProSAFE Gigabit Unmanaged Switch Series JGS516 / JGS516v2 16-Port 10/100/1000 Gigabit Ethernet Switch - Brand New

Alt Model/Part No.: JGS516v2

Take Gigabit to the Desktop

  • 16 or 24 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port
  • Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
  • Easily combine new or existing 10-, 100- and 1000Mbps devices within your network
  • 802.1p QoS support for prioritizing voice and video in the network
  • Jumbo Frame Support up to 9KB


  • Each port delivers up to 2000Mbps of network speed (full duplex)
  • Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
  • 16 or 24 switched ports provide bandwidth for PCs, servers or switches
  • Auto Uplink™ automatically adjusts for straight-through or crossover cables
  • Plug and play—begins working as soon as it is powered on • Integrates 10-,100- and 1000Mbps devices into your network
  • Compact size for desktop or for mounting in a standard 19-inch rack
  • Secure, durable metal housing includes a Kensington locking slot for theft prevention
  • Backed by a NETGEAR Lifetime Warranty
  • Honors TOS/802.1p prioritization
  • Up to 50% lower power consumption
  • Auto power-down mode saves energy when port is unused
  • Auto green mode detects cable length and adjusts power usage to save energy
  • Packaging manufactured with at least 80% recycled materials

Gigabit Unmanaged Switch Series
Model/Part No.JGS516
Alt Model/Part No.JGS516v2
Speed10/100/1000Mbps Gigabit Ethernet
Number of Ports16
PoE PortsN/A
Total PoE BudgetN/A
Loop DetectionN/A
Short cable power savingN/A
Energy Efficient Ethernet Support (IEE802.3az)Yes
Jumbo Frame Support9KB
Queue WRR Ratio1:2:4:8
MAC Table Size8K
Packet buffer size256KB
IEEE 802.1p QoSYes
Dimensions (W x D x H) @mm328 x 169 x 43
Weight (kg)1.47
Max Power Consumption11.8W
Max Operating Temperature50° C
MFBF (hours)441,123
FCC ClassA

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: JGS516v2

Weight: 2.5 lb

Warranty: Factory Warranty

Brand New
