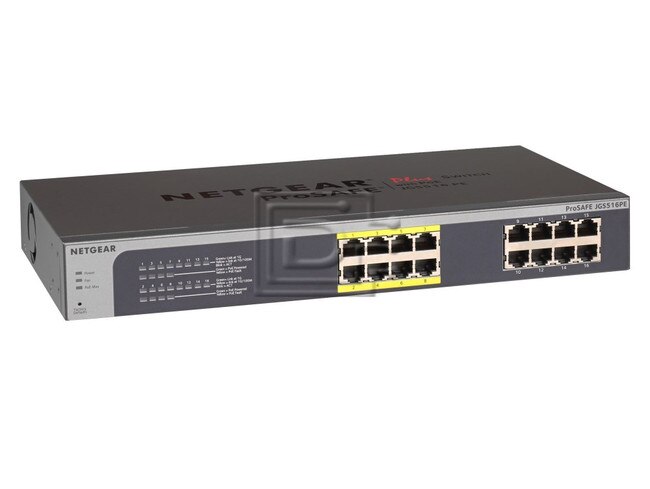

NetGear JGS516PE 16-Port Ethernet Switch


DiscTech Item #: NET-JGS516PE-BN-FW


Item is out of stock. Please call for alternatives.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Item is out of stock. Please call for alternatives.

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 6Mb

Bays/Ports/Slots: 16

U Height: 1U

Voltage: 110-240V Multi

NetGear ProSAFE JGS516PE 16-Port Gigabit Web Managed Plus Ethernet Switch with 8-Port PoE - Brand New

NetGear ProSAFE JGS516PE 16-Port Gigabit Web Managed Plus Rackmount Ethernet Switch with 8-Port PoE - Brand New

Control and Configure Beyond Plug-and-Play Connectivity
Today’s growing businesses rely more on their network to carry out mission-critical business activities. Deployment of VoIP and IP surveillance needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches.

NETGEAR® ProSAFE® Gigabit Web Managed (Plus) Switches meet this growing need by providing fundamental network features such as VLANs, QoS, and IGMP Snooping that will help optimize the performance of business networks. ProSAFE Web Managed (Plus) switches come in a variety of configurations ranging from 5 port desktop to 24 port rackmount. Some models support Power-over-Ethernet (PoE) and can power devices such as IP phones, IP surveillance cameras and wireless access points with just an Ethernet cable; perfect for low cost PoE deployments. ProSAFE Web Managed (Plus) Switches are the perfect upgrade from the plug-and-play unmanaged switch, delivering essential networking features at a very affordable price.


  • Enable network configuration and management at the price point of Unmanaged Switches
  • Gigabit connection delivers up to 2000 Mbps of dedicated, non-blocking bandwidth per port
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Flexible management via PC-based Utility Tool
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto “denial-of-service” (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Loop detection and broadcast storm controls
  • IGMP snooping v1, v2 and v3 support for multicast optimization
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Port trunking for bigger uplink bandwidth
  • Jumbo frame support
  • Energy Efficient Ethernet (IEEE802.3az) support for maximum power savings

Gigabit Web Managed (Plus) Switch Series
Model/Part No.JGS516PE
Gigabit Ports16
10 Gbps PortN/A
Number of PoE Ports8
Total PoE Power Budget (Watts)85
Max MAC Entries16K
Buffer Size6Mb or 768KB
VLAN (Number Supported)100
Number of LAGs & Number of Members8 LAGs & 2 to 4 members
Supported Multicast Groups64
Max Number of Source Ports Allowed (Many to 1)15
  • Internal
  • 100-240V, 50-60Hz, 1.5A max
  • Max Consumption (Watts)110
    Acoustic Noise Level @25C (dBA)24.5
    Operating Temperature0° to 50° C
    Weight (kg)1.67Kg
    Dimensions (W x D x H) mm328 x 169 x 43
    Electromagnetic Compliance (A or B)A

    Click here to view the manufacturer's item description/brochure

    Weight: 4 lb

    Warranty: Factory Warranty

    Brand New

    Condition Levels Explained

    The product is brand new.

    Factory Warranty Warranty
