NETGEAR Part #/MPN: M4100-50G
DiscTech Item #: NET-M4100-50G-BN-FW
Item is out of stock. Please call for alternatives.
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:Factory Warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, SFP
Electrical Interface: Ethernet Fast - 100Mbps
Bays/Ports/Slots: 50
U Height: 1U
Voltage: 12V

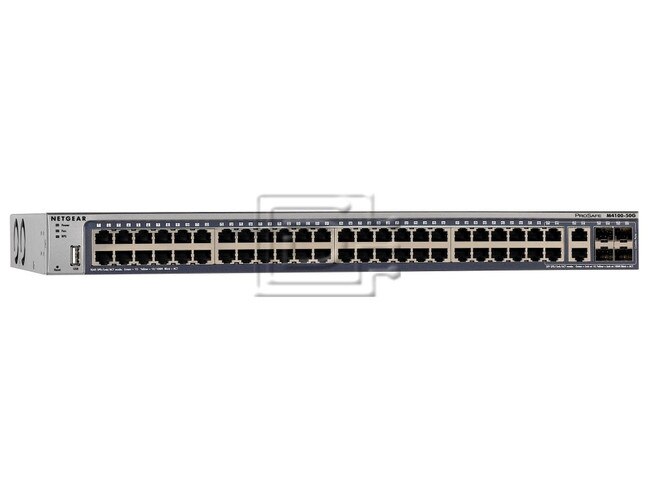

NetGear ProSAFE Intelligent Edge M4100 Series M4100-50G / GSM7248 50-Port Gigabit Managed Switch - Brand New
NetGear ProSAFE Intelligent Edge M4100 Series M4100-50G / GSM7248 50-Port Gigabit Rackmount Managed Switch - Brand New
Alt Model Number: GSM7248, GSM7248v2h2, GSM7248-v2h2
ProSAFE Intelligent Edge Managed Switches
The Intelligent Edge M4100 series switches are NETGEAR fully managed switches for 100M/1G access layer in SMB, Small Enterprise and Campus networks.
The M4100 series delivers the best combination of performance, security and convergence at a high-value price point - unlike competitive, entry-level "SMB" solutions
Redundant power supply options (RPS), full PoE+ external power supply options (EPS), Private VLANs, LLDP-MED and MVR take a scalable, future-proof approach to delivering network services for Wireless access points, IP phones and IP cameras infrastructures.NETGEAR Intelligent Edge M4100 series key features:
- Broad portfolio of access layer solutions, ranging from 12 ports to 50 ports Fast and Gigabit Ethernet
- 802.3af PoE and 802.3at PoE+ best fit, ranging from 120W to 1,440W power budget per switch
- IPv4 routing in Layer 2+ package (L3 static routing) with IPv4/IPv6 ACLs and QoS
- High value L2/L3 tables with 16K MAC, 512 ARP/NDP, 9K jumbo frames, 1K VLANs, 64 static L3 routes
- Redundant power supply option for uninterruptible operation (RPS)
- External power supply option for PoE and PoE+ full-power applications (EPS)
- Green Ethernet compliance for maximum power efficiency
NETGEAR Intelligent Edge M4100 series software features:
- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol detection
- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
- IPv4/IPv6 Multicast filtering with IGMP and MLD snooping, Querier mode and MVR for simplified video deployments
- Advanced classifier-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) inbound security and prioritization
NETGEAR Intelligent Edge M4100 series link aggregation and channeling features:
- Flexible Port-Channel / LAG (802.3ad) implementation for maximum compatibility, fault tolerance and load sharing with any type of Ethernet channeling
- Including static (selectable hashing algorithms) or dynamic LAGs (LACP)
NETGEAR Intelligent Edge M4100 series management features:
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
- Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN implementation
- Selectable serial RS232 DB9 and Mini-USB port for management console
- Standard USB port for local storage, configuration or image files
- Dual firmware image and configuration file for updates with minimum service interruption
- Industry standard command line interface (CLI) for IT admins used to other vendors commands
- Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
- Single-pane-of-glass NMS300 management platform with mass-configuration support
Intelligent Edge M4100 Series | |
---|---|
Model/Part No. | M4100-50G |
Alt Model/Part No. | GSM7248 GSM7248v2h2 GSM7248-v2h2 |
Model Description | 50 ports Gigabit, Layer 2+ software package |
RJ45 Ports | 50 x 10/100/1000 |
Fiber SFP (100/1000) | 4 x SFP |
Power over Ethernet (Poe/PoE+) | N/A |
PoE Budget (Watts) | N/A |
Redundant Power Supply | RPS |
Powered by PoE+ (Passthrough) | N/A |
Feature Set | Layer 2+ (static routing) |
Form Factor | Rack 1U - Standalone |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: GSM7248 GSM7248v2h2 GSM7248-v2h2
Weight: 8 lb
Warranty: Factory Warranty
Brand New
The product is brand new.
Factory Warranty Warranty
