NETGEAR Part #/MPN: M7300-24XF
DiscTech Item #: NET-M7300-24XF-BN-FW
Item is out of stock. Please call for alternatives.
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:Factory Warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: Ethernet RJ45, SFP
Electrical Interface: Ethernet 10Gigabit - 10Gbps
On-Board Cache: 16MB
Bays/Ports/Slots: 24
U Height: 1U
Voltage: 110-240V Multi

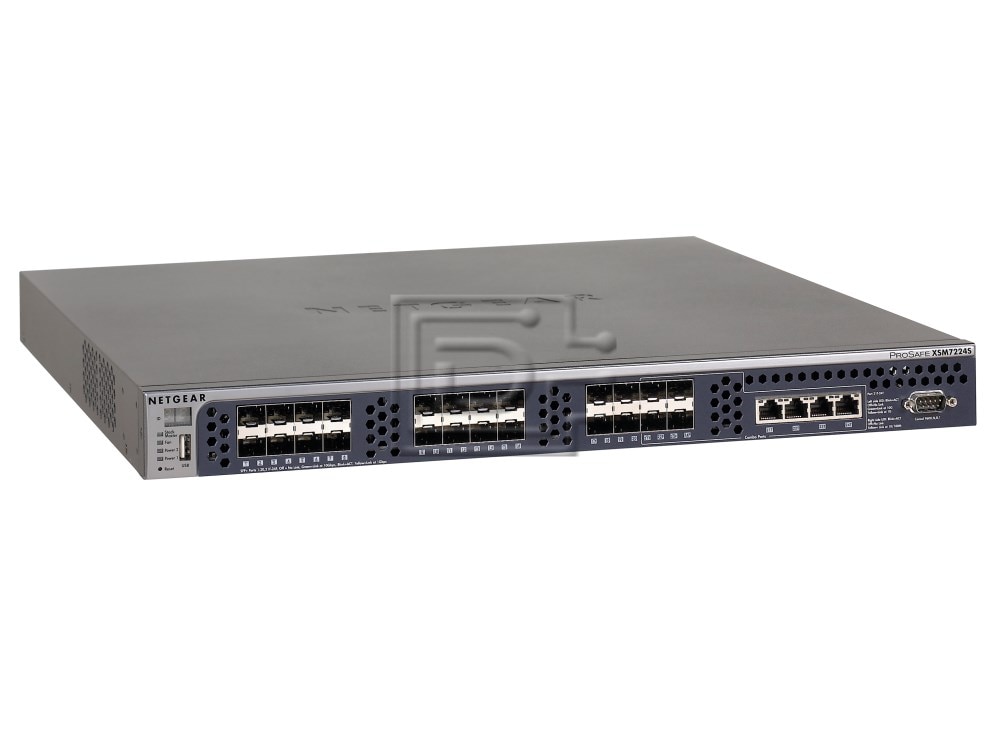

NetGear ProSAFE M7300-24XF / XSM7224S 24-Port 10Gigabit SFP+ Managed Switch - Brand New
NetGear ProSAFE M7300-24XF / XSM7224S 24-Port 10Gigabit SFP+ Rackmount Managed Switch - Brand New
Alt Model Number: XSM7224S
ProSAFE 10 Gigabit Managed Switches
The 10 Gigabit Aggregation M7100 series switches are NETGEAR affordable fully managed switches for 1G/10G server access layer in campus and enterprise networks, and for high-density, high-performance 10GbE backbone architectures. The M7100 series delivers pure line-rate performance for top-of-rack virtualization or convergence, without having to pay the exorbitant acquisition and maintenance costs associated by other networking vendors. NETGEAR 10 Gigabit Aggregation solutions combine latest advances in hardware and software engineering for higher availability, lower latency and stronger security, at a high-value price point. Like all NETGEAR products, the M7100 series delivers more functionality with less difficulty: Auto-iSCSI optimization, Private VLANs and Local Proxy ARP take the complexity out of delivering network services for virtualized servers and 10 Gigabit infrastructures.
NETGEAR 10Gigabit M7100 series key features:
- Line-rate 10G Copper "Base-T" switch solution with low latency
- 24 ports 10GBase-T (RJ45) supporting Fast Ethernet, Gigabit Ethernet and 10 Gigabit speeds for server and network progressive upgrade
- 4 ports SFP+ for 1G/10G fiber uplinks and other DAC connections
- IPv4 routing in Layer 2+ package (static routing) with IPv4/IPv6 ACLs and QoS
- Enterprise-class L2/L3 tables with 32K MAC, 6K ARP/NDP, 1K VLANs, 128 static L3 routes
- Two redundant, hot-swap power supplies (one PSU comes with the switch; second optional PSU is ordered separately)
- Two removable fan trays and front-to-back cooling airflow for best compatibility with data center hot aisle / cold aisle airflow patterns
- Auto-EEE Energy Efficient Ethernet associated with Power Back Off for 15% to 20% less consumption when short copper cables
NETGEAR 10 Gigabit M7100 series software features:
- Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization, iSCSI flow acceleration and automatic protection / QoS
- Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol detection
- Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration
- IPv4/IPv6 Multicast filtering with IGMP and MLD snooping, Querier mode and MVR for for simplified video deployments
- Advanced classifier-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
- Unidirectional Link Detection Protocol (UDLD) prevents forwarding anomalies
NETGEAR 10 Gigabit M7100 series link aggregation and channeling features:
- Flexible Port-Channel / LAG (802.3ad) implementation for maximum compatibility, fault tolerance and load sharing with any type of Ethernet channeling
- Including static (selectable hashing algorithms) or dynamic LAGs (LACP)
- Multi Chassis Link Aggregation (MLAG) between two M7100 switches overcomes limitations of Spanning Tree, increasing bandwidth while preserving redundancy
NETGEAR 10 Gigabit M7100 series management features:
- DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
- Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN implementation
- Selectable serial RS232 DB9 and Mini-USB port for management console
- Standard USB port for local storage, configuration or image files
- Dual firmware image and configuration file for updates with minimum service interruption
- Industry standard command line interface (CLI) for IT admins used to other vendors commands
- Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
ProSAFE® 10 Gigabit Managed Switches | |
---|---|
Model/Part No. | M7300-24XF |
Alt Model/Part No | XSM7224S |
RJ45 Ports | 4 x 10GBASE-T |
Fiber SFP+ (1000/10G) | 24 x SFP+ |
Power over Ethernet | N/A |
PoE Budget (Watts) | N/A |
Redundant Power Supply | Dual hot swap PSUs |
Feature Set | |
Form Factor | Rack 1U - Stackable |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: XSM7224S
Weight: 14 lb
Warranty: Factory Warranty
Brand New
The product is brand new.
Factory Warranty Warranty
