NetGear ProSAFE Outdoor Dual Band Antenna Bundle Kit

NETGEAR Part #/MPN: ANT24501B

DiscTech Item #: NET-ANT24501B-BN-1Y


$85.00

Item is out of stock. Please call for alternatives.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$85.00

Item is out of stock. Please call for alternatives.


Interface Types: N-Plug Male

NetGear ProSAFE ANT24501B 2.4 & 5 GHz Outdoor Dual Band Omni Antenna Bundle Kit - Brand New

NetGear ProSAFE ANT24501B 2.4 & 5 GHz Outdoor Dual Band Omni Antenna Bundle Kit - Brand New

High gain and flexible in deployment for wireless access
Each bundle kit comes with quantity 2 of 2.4 GHz (5 dBi) and quantity 2 of 5 GHz (7 dBi) antennas. Optimal for providing omni directional wireless access with the WND930 Outdoor Access Point. Leveraging the internal directional antenna for point to point mesh while providing wireless client access around the Outdoor Access Point with the ANT24501B antenna bundle.

The ANT24501B antenna bundles provides omni directional access with extended range for client connectivity in a hotspot deployment scenario. Simply connect the 2.4 and 5 GHz antennas to the WND930 Outdoor Access Point to achieve optimum performance at wireless 802.11n speed. Each antenna bundle comes with 2 units of 2.4 GHz antennas (5 dBi) and 2 units of 5 GHz antennas (7 dBi). The small form factor the lightweight antennas allows the installation to be simple and intuitive. The ANT24501B antenna bundle is rated to operate in outdoor deployment in extreme environmental condition that matches the specification of the WND930 Outdoor Access Point.

NETGEAR ProSafe® line of antennas and accessories for 802.11b, 802.11g and 802.11n devices give you multiple options for maximizing the reach and performance of your wireless infrastructure devices. Every WLAN deployment is unique. With both directional and omni-directional antennas, indoor and outdoor options, low-loss cables, mounting hardware, and other accessories, installers can customize a wireless solution that meets the requirements of even the most challenging applications.

NETGEAR Outdoor Dual Band Omni Antenna Bundle Kit
Model/Part No.ANT24501B
Wireless Mode802.11 a/b/g/n
Typical ApplicationOutdoor for wireless client access
Frequency range2.4 to 2.5 GHz and 4.9 to 5.85 GHz
Gain5 dBi (2.4 GHz) and 7 dBi (5 GHz)
Beam WidthHorizontal 360 o Vertical 11 o
PolarizationLinear; Vertical
Operating Temperature-20°C to +60°C
Dimensions215 x 22 x 11 mm (8.5 x 0.9 x 0.4 in)
Weight0.2 kg (0.4 lb)
ConnectorsN-Plug Male
Package Contents

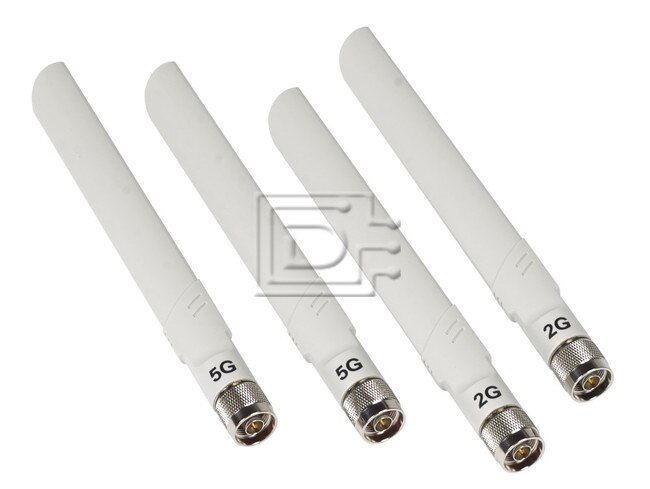

  • 2 x 2.4 GHz omni directional antennas
  • 2 x 5 GHz omni directional antennas
  • Installation guide

  • Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1 lb

    Warranty: 1 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    1 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
