NetGear RR4312X0-20000S 12-Bay NAS Array

NETGEAR Part #/MPN: RR4312X0-20000S

DiscTech Item #: NET-RR4312X0-20000S-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Interface Types: SATA, eSATA External, USB 3.0 3.1 3.2, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Encryption/SED Supported

Electrical Interface: Ethernet Gigabit - 1Gbps

On-Board Cache: 16GB

Bays/Ports/Slots: 12

U Height: 2U

Wattage/VA: 550W

Voltage: 110-240V Multi

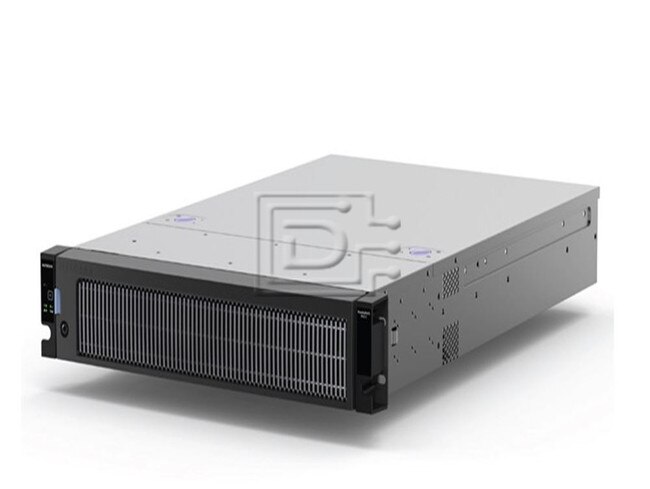

NetGear ReadyNAS 4312X RR4312X0-20000S 3.5Ghz 16GB 2U 12-Bay Diskless iSCSI SAN/NAS Array -Rackmount -  Brand New

NetGear ReadyNAS 4312X RR4312X0-20000S 3.5Ghz 16GB 2U 12-Bay Diskless iSCSI SAN/NAS Array -Rackmount

ReadyNAS 3312 and 4312X are best-in-class high performance network attached storage systems. The RR4312X has two built-in 10 Gigabit Ethernet interfaces to further meet the storage demands of next generation business networks. Featuring an architecture powered by blazing fast quad-core 5th generation Intel Xeon processors along with DDR4 ECC memory that is expandable up to 64GB, the RR3312 and RR4312 are the no compromise, high performing data storage systems of choice for businesses that need the very best in capacity, performance and security.

ReadyNAS brings state-of-the-art data storage and protection technologies in an affordable and easy-to-use system to the SMB. All ReadyNAS are built on the revolutionary ReadyNAS OS 6 operating system and next-gen BTRFS file system. A best-in-class 5 levels of data protection - X-RAID, Unlimited Snapshots, Bit rot protection, real-time anti-virus and easy offsite replication work in concert to securely protect your data from common risks.

All ReadyNAS systems utilize proprietary ReadyCLOUD technology. With ReadyCLOUD, remotely accessing and sharing files in your own secure private cloud has never been easier. No VPN setup, no port forwarding, no dynamic DNS required.

Designed specifically for the unique needs of business users, RR3312 and RR4312X are virtualization-ready with iSCSI support, thin provisioning capability and VMware certified.

To maximize storage capacity, an SAS expansion card (RRSASEXP-10000S) can be purchased separately for expansion support. Expansion chassis from NETGEAR, EDA2000 and EDA4000, offer 12 and 24 bay expansion, respectively.

Product Type:   SAN/NAS Storage System


Number of Hard Drives Supported:   12
Number of Hard Drives Installed:   0
Total Hard Drive Capacity Supported:   144 TB
Number of Solid State Drive Supported:   12
Number of Solid State Drive Installed:   0
Total Solid State Drive Capacity Supported:   144 TB
Flash Memory Capacity:   256 MB

Processor & Chipset

Processor Manufacturer:   Intel
Processor Type:   Xeon
Processor Model:   E3-1245 v5
Processor Core:   Quad-core (4 Core)
Processor Speed:   3.50 GHz


Standard Memory:   16 GB
Memory Technology:   DDR4 SDRAM

Network & Communication

Ethernet Technology:   10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays:   12
Number of 2.5"/3.5" Bays:   12


Controller Type:   Serial ATA
RAID Supported:   Yes


Total Number of USB Ports:   2
Number of USB 3.0 Ports:   2
Network (RJ-45):   Yes
Number of Network (RJ-45) Ports:   4
eSATA:   Yes


Operating System:   ReadyNAS OS 6.2

Management & Protocols

Protocols:   Bonjour
Protocols:   CIFS/SMB
Protocols:   DHCP
Protocols:   HTTPS
Protocols:   iSCSI
Protocols:   LACP
Protocols:   SSH
Protocols:   TCP/IP
Protocols:   WEBDAV
Protocols:   AFP
Protocols:   DLNA
Protocols:   FTP
Protocols:   HTTP
Protocols:   IPv4
Protocols:   IPv6
Protocols:   NFSv3
Protocols:   NTP
Protocols:   RSync
Protocols:   SMB
Protocols:   SMB 3.0
Protocols:   SMTP
Protocols:   SNMP
Protocols:   SSL/TLS
Protocols:   UPnP

Power Description

Number of Power Supplies Installed:   2
Maximum Power Supply Wattage:   550 W
Redundant Power Supply:   Yes

Physical Characteristics

Height:   3.5"
Width:   17.5"
Depth:   27.8"
Form Factor:   Rack-mountable
Rack Height:   2U
Weight (Approximate):   26.37 lb

ReadyNAS 4312X
Standard Model NumberRR4312X0-20000S
CPUIntel® Xeon E3-1245v5 3.5GHz
Quad Core, Hyper Threaded Processor,
Max Turbo Speed 3.9GHz
Memory16GB DDR4 ECC
Memory Expansion64GB DDR4
Drive Bays12
Drive Types SupportedSATA/SSD 2.5” or 3.5”
Hot Swappable DrivesYes
eSATA Ports2
SAS Ports for Expansion Chassis(sold separately)2
Gigabit LAN Ports4
10Gbps LAN Optical SFP+0
10Gbps LAN Copper 10GBase-T2
USB Ports2x USB3.0
Power SupplyDual Redundant Internal 550 W; input
100-240V AC, 50-60Hz
Fan (mm)3 x 80
Dimensions DxWxH (mm)707 x 445 x 88
Weight (diskless) (kg)11.96 / 26.37lb
Software and Functionality
Certification and CompatibilityVMware vSphere ESXi 6.0
Cloud-discovery, Setup and ManagementYes
Data Protection with Unlimited SnapshotsYes
Web-managed Replication for Disaster RecoveryYes
Real-time AntivirusYes
iSCSI and Thin ProvisioningYes

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: RR4312X0

Weight: 12.5 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
