Netgear AX742 24G/48G Stacking Kit for M5300 Series Switches

NETGEAR AX742 Stacking Module Image 1 imageNETGEAR AX742 Stacking Module Image 2 imageNETGEAR AX742 Stacking Module Image 3 imageNETGEAR AX742 Stacking Module Image 4 imageNETGEAR AX742 Stacking Module Image 5 image
  • New Pull
    Condition Levels Explained

    The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$385.00

Item is out of stock. Please call for alternatives.

Bays/Ports/Slots:48
Voltage:12V

Description

Netgear AX742 24G/48G Stacking Kit for M5300 Series Switches Rear I/O Bays - New Pull

Netgear AX742 24G/48G Stacking Kit for M5300 Series - New Pull

24G/48G Stacking Kit for M5300 Series

Stacking kit for M5300 series switches rear I/O bays

AX742 Stacking Kit is cost-effective preferred method for local Virtual Chassis Stacking using both rear I/O bays. When some switches are distant, affordable SFP+ (AX743) and 10GBase-T (AX745) I/O modules allow for fiber or copper distant connections, still leveraging rear bays zero-touch stacking functionality.

  • For deployment convenience, M5300 series two rear I/O bays are pre-configured for stacking mode in factory default settings, allows for zero-touch stacking as soon as back connectivity is detected.
  • Copper, fiber can be mixed and matched for stacking interconnect.
  • One AX742 Stacking Kit per M5300 switch for local, dual ring topology

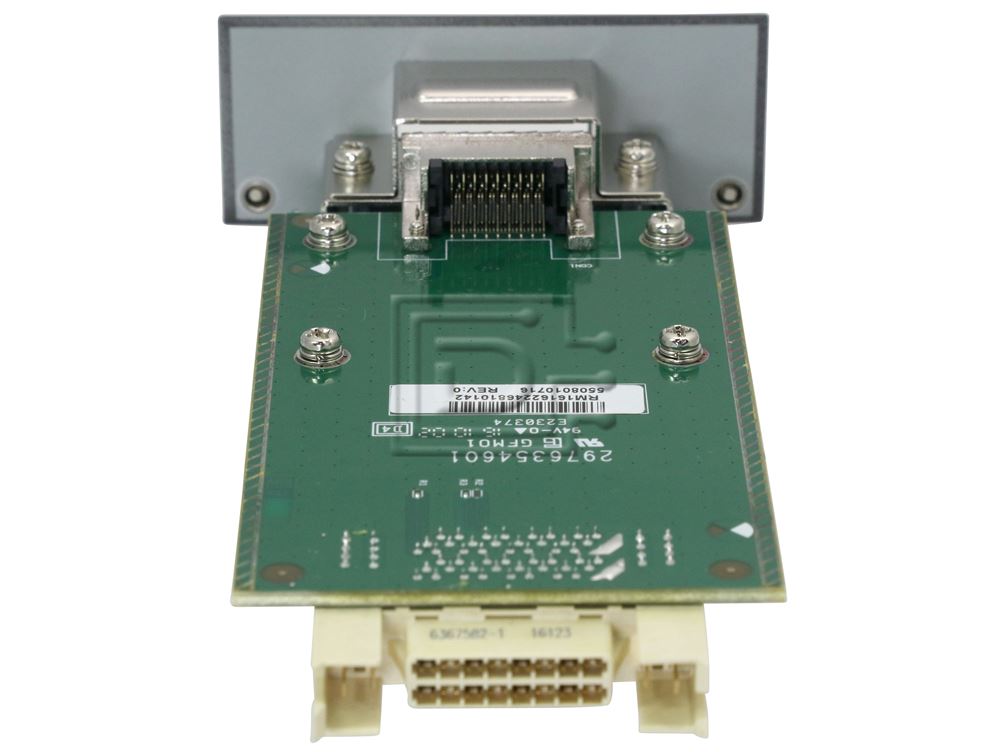

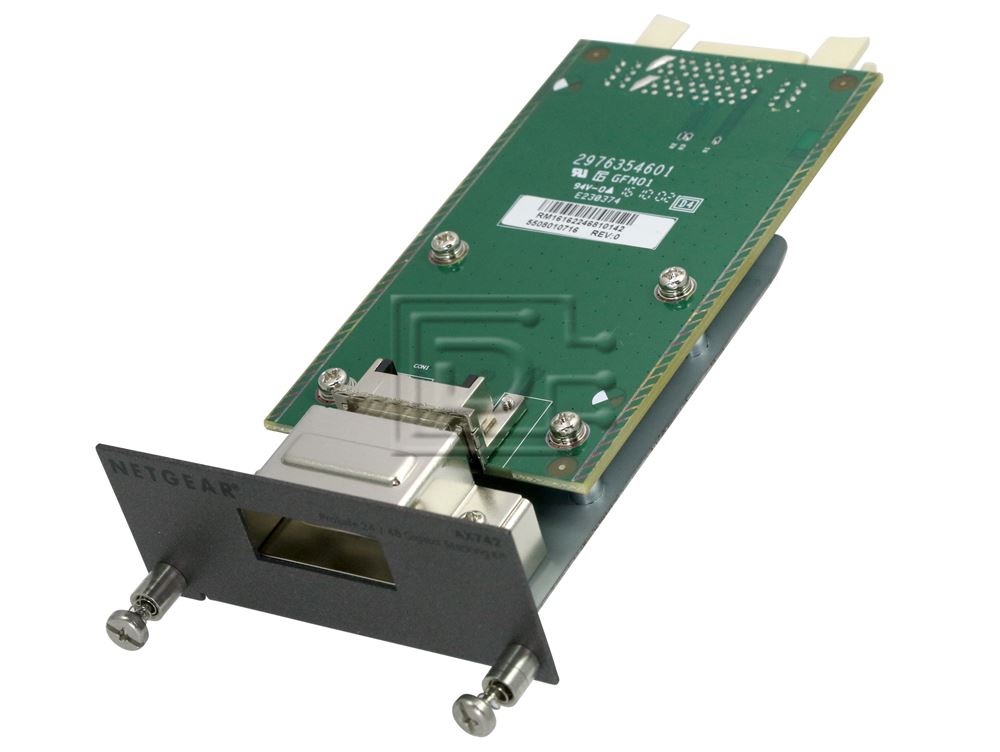

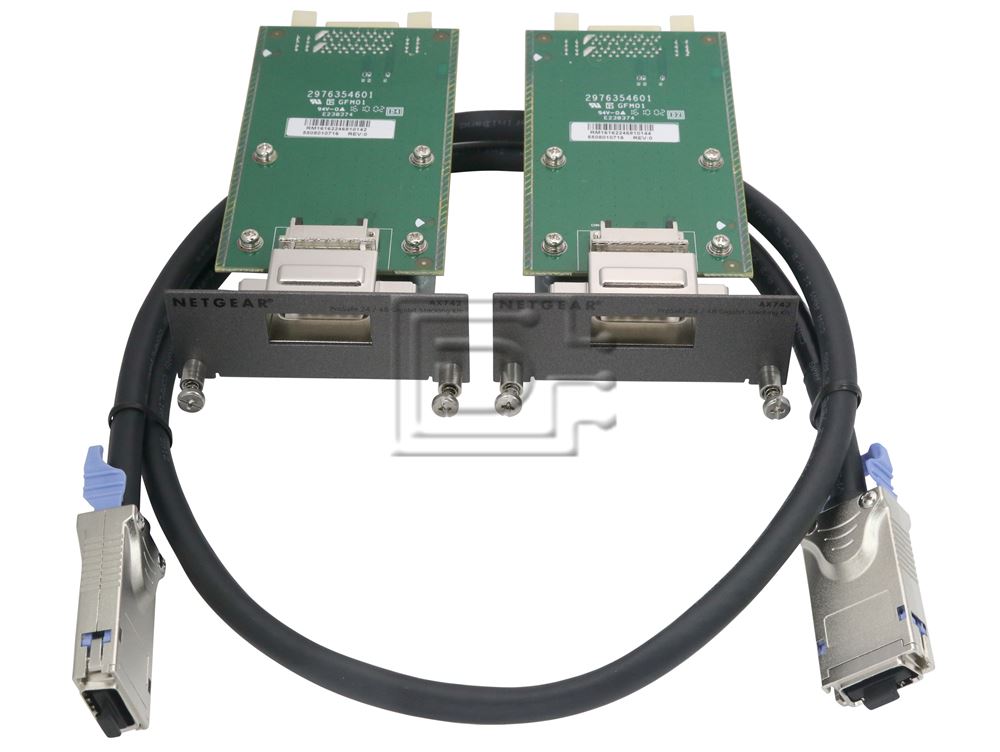

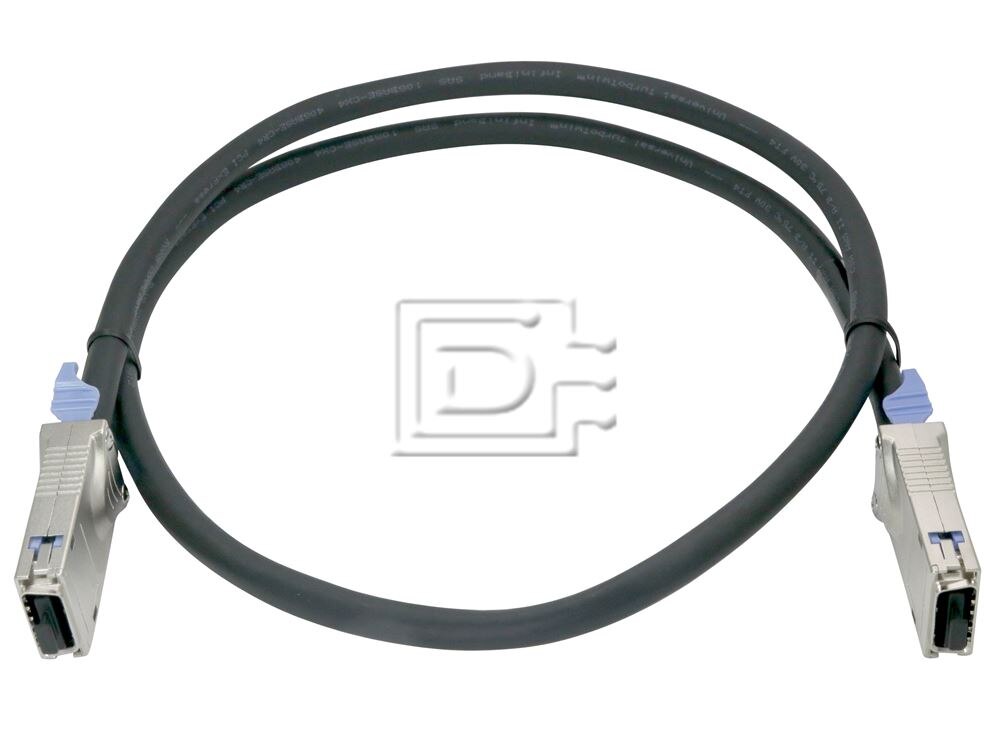

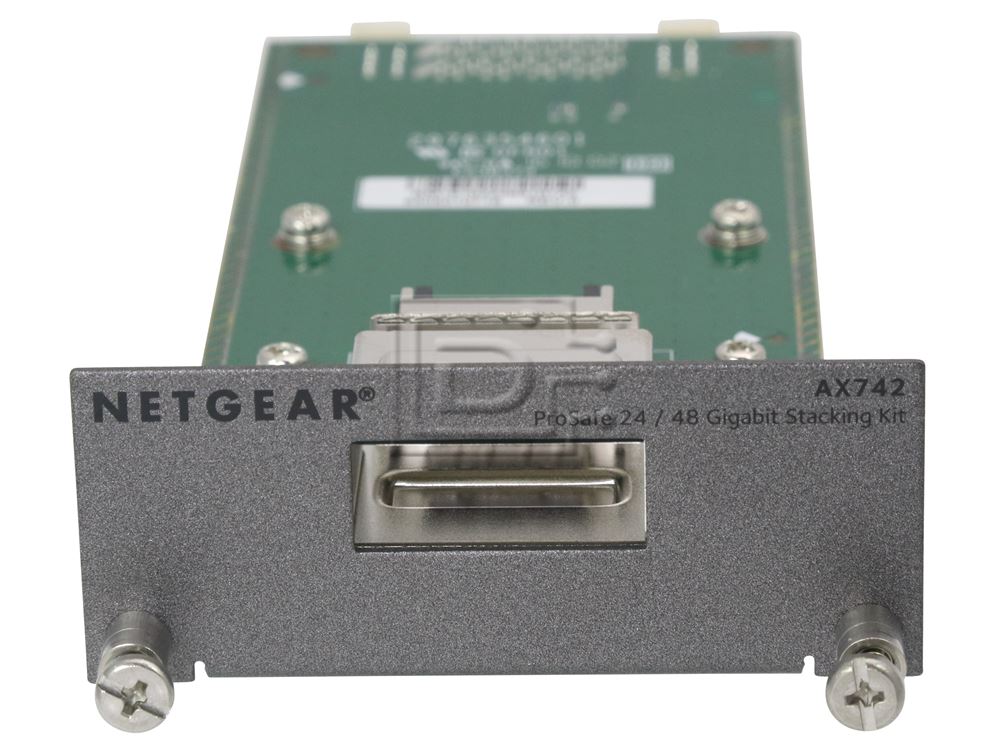

  • AX742 is a bundle: 2 CX4 I/O modules AX744 + 1 stacking CX4 cable (1m - 3.3 ft)
  • Latest IEEE 802.3ak 10GBASE-CX4 specifications (infiniband)
  • Each I/O module half-duplex speed is 12 Gbps (24 Gbps full duplex) with 1m cable
  • Dual ring stacking interconnect is 48 Gbps per switch (384 Gbps per stack) when one AX742 kit per switch (two I/O modules)
  • Longer cable may be used (standard infiniband CX4 cable)
  • Ordering Part Number (Worldwide): AX742

Compatibility

Netgear M5300 Network Switches Rear I/O Bays

Specifications

AX742 24G/48G Stacking Kit
Model/Part No.AX742
For use with Model/Part No. M5300 Switches

Model DescriptionStacking kit for M5300 series rear I/O bays
IncludesAX742 is a bundle: 2 CX4 I/O modules AX744 + 1 stacking CX4 cable (1m - 3.3 ft)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 3 lb

Warranty: 1 Year DiscTech

Condition

New Pull

Warranty

1 Year DiscTech Warranty
