OCZ Technology Part #/MPN: D2CSTK251M3T-0240
DiscTech Item #: OCZ-D2CSTK251M3T-0240-BN-3Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 240GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx9mm Fits Most laptops
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: Up to 550
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

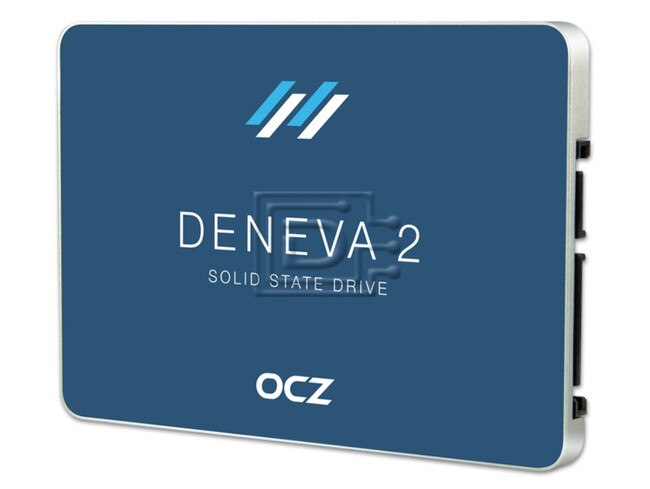

OCZ D2CSTK251M3T-0240 240GB 2.5in 6Gbps Deneva 2 C Series SED Enterprise SATA MLC SSD - Brand New
OCZ D2CSTK251M3T-0240 240GB 2.5" 6.0 Gbps Deneva 2 C Series, Self-Encrypting, Serial ATA, Multi-Level Cell, Enterprise, Solid State Disk Drive - Brand New
Increase Productivity & Application Performance
OCZ Deneva 2 SSDs are designed and manufactured to solve today's enterprise storage challenges and address the limitations hard drive technology imposes on IT infrastructures. The Deneva 2 Series delivers the industry's best performance while meeting the stringent reliability, security, and economical needs of enterprise storage environments including cloud storage, web-serving, and data warehousing. Providing a lucrative option for datacenters, Deneva 2 maximizes IOPS per dollar enabling increased data throughput with lower power consumption and a smaller operating footprint.
Features
- Leading-edge SATA 6Gb/s storage solution designed to dramatically increase productivity and application performance
- Cost-effective MLC-based design with best-in-class endurance and reliability
- 128-bit AES-compliant Encryption
Raising the Bar in Performance
- Delivers the performance of hundreds of hard disk drives in a single server
- Over 550 MB/s of throughput
- Up to 80,000 4K random write IOPS
Reliable, Longer-Lasting and Secure
- Data fail recovery ensures superior reliability
- Intelligent block management and wear-leveling for increased endurance
- Advanced security with 128-bit AES encryption support
- Strong error correction for enhanced data integrity
Flexible Design with a Wide Array of Configurations
- Deneva 2 comes in an industry-standard 2.5" model; however, its unique architecture can be tailored to fit specific applications
Cost-Savings that Other SSD Lines Cannot Deliver
- Alternative flash options provide a greater spectrum of price per IOPS
- Support for next generation NAND flash geometries
Compatibility:
This drive is compatible with any server that accepts 2.5" x 9mm (Fits in ALL laptops) SATA SSD.
Drive Model | D2CSTK251M3T-0240 |
---|---|
Model | Deneva 2 C Series |
IDEMA Capacity | 240GB |
Raw Capacity | 256GB |
Write Endurance (4K RW) | 85 TBW |
Write Endurance (128K SW) | 710 TBW |
Physical | |
Interface | Serial ATA (SATA) 6Gb/s |
NAND Components | 19nm Multi-Level Cell (MLC) |
Form Factor | 2.5 inch |
Height (mm/in) | 9.2/0.36 |
Width (mm/in) | 69.75/2.75 |
Length (mm/in) | 100/3.94 |
Weight (g/lb) | 83/0.18 |
Performance | |
Read Bandwidth | Up to 550 MB/s |
Write Bandwidth | Up to 520 MB/s |
4K Random Read Operations (Compressible) | 45,000 IOPS |
4K Random Write Operations (Compressible) | 34,000 IOPS |
4K Random Read Operations (Incompressible) | 42,000 IOPS |
4K Random Write Operations (Incompressible) | 2,200 IOPS |
Enviromental | |
Power Consumption | Idle 0.9W, Active ~ 2.35W |
Operating Temperature | 0°C ~ 70°C |
Storage Temperature | -45°C ~ 85°C |
Certifications | CE, FCC, KCC, C-Tick, BSMI, VCCI, RoHS |
Relability/Security | |
MTBF | 2 million hours |
Data Safe Recovery Technology | Provide data recovery in case of block failure vie LSI RAISE technology |
Data Path Protection | ECC: Up to 24 bits correctable per 512-byte sector |
Data Reliability | Read Unrecoverable Bit Error Rate (UBER) 1 sector per 1016 bits read |
Product Health Monitoring | Self-Monitoring, Analysis and Reporting Technology (SMART) Support with enterprise attributes |
Data Encryption | 128-bit AES-compliant |
Additional Features | |
Performance Optimization | TRIM (requires OS support) |
Write Protection Circuit | Protection for data corruption |
Temperature Sensor | Temperature Monitoring & Logging |
Secure Erase | Enabled via OCZ Toolbox (Windows and Linux versions) |
In Rush Current | New OCZ power design with improved in rush current protection |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 3 Year Manufacturer
Brand New
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
