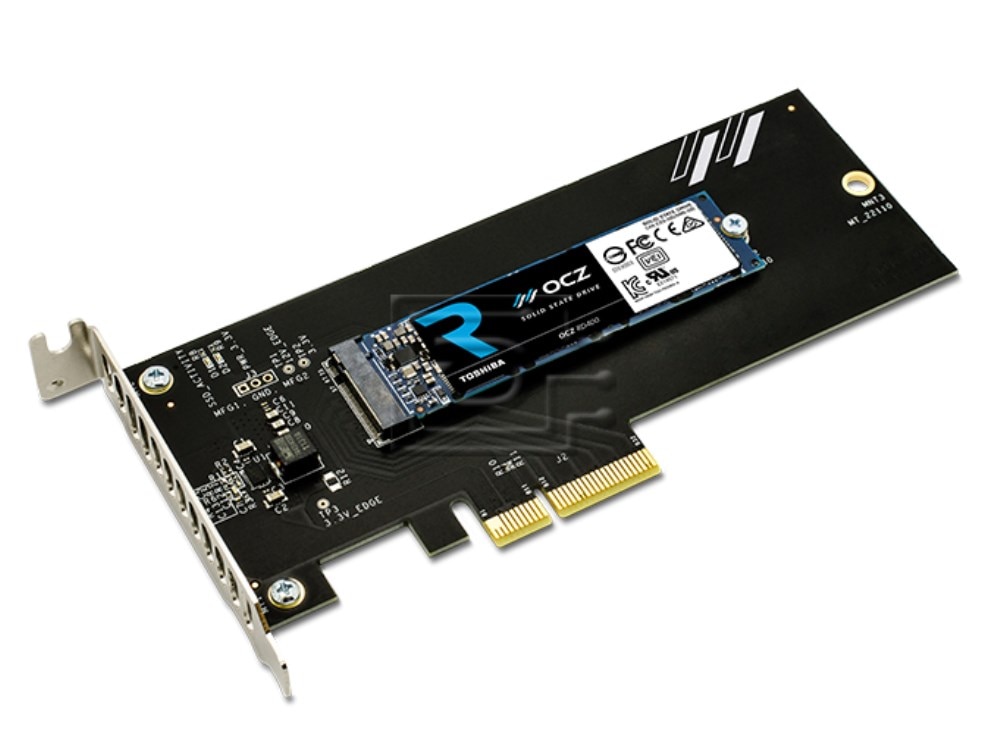

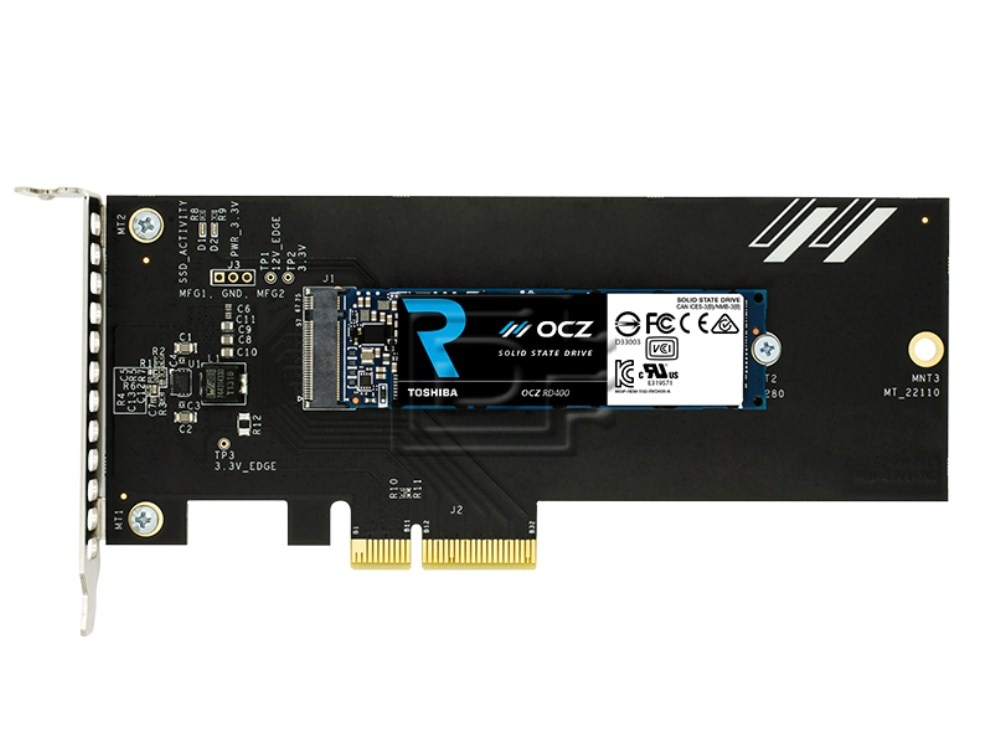

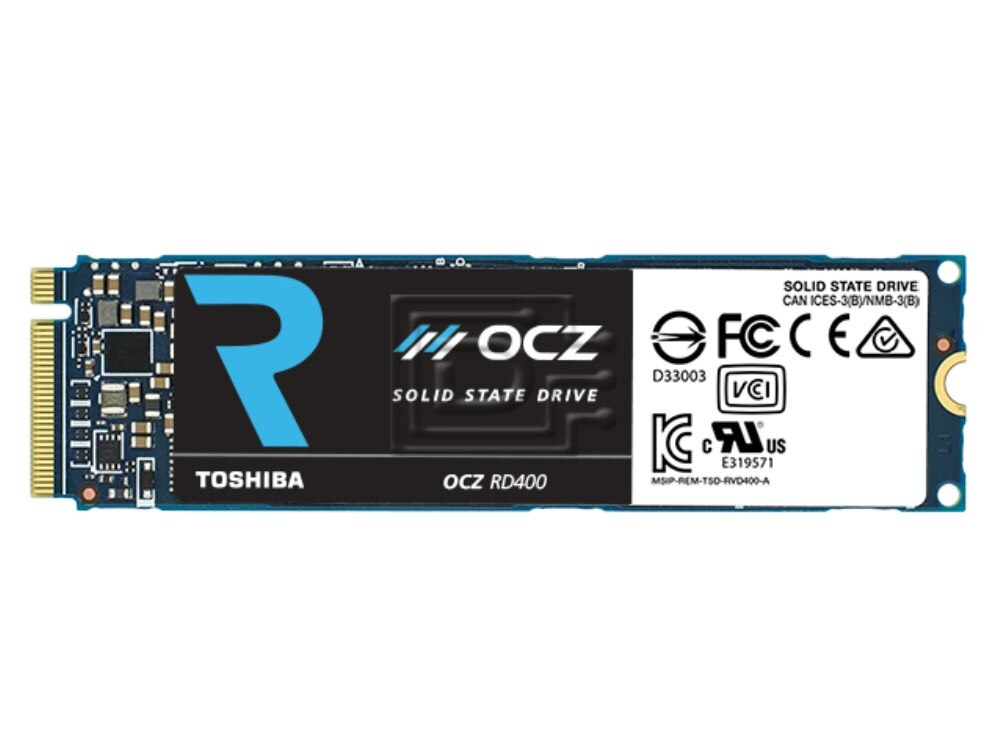

OCZ RD400A RVD400-M22280-256G-A 256GB M.2 2280 Consumer MLC PCIe 3.1 NVMe 1.1b SSD w/ AIC

OCZ Technology Part #/MPN: RVD400-M22280-256G-A

DiscTech Item #: OCZ-RVD400-M22280-256G-A-BN-5Y

$199.00

Brand New
Warranty:5 Year Manufacturer
Low Stock:Call for ETA

Back

$199.00

Capacity: 256GB

Speed: Solid State

Interface Types: PCIe

Form Factor: HHHL (Half-Height/Half-Length)

Sector Size: 512 / 512e

Sustained Throughput: 2600/1150

Electrical Interface: PCIe - v3.0 - 16GBps

SSD Type: MLC

SSD Endurance DWPD: Consumer / Value

OCZ RD400A RVD400-M22280-256G-A 256GB M.2 2280 126GBps Consumer 0.3-DWPD MLC PCI Express / PCIe 3.1 NVMe 1.1b SSD w/ AIC - Brand New

OCZ RD400A RVD400-M22280-256G-A 256GB M.2 2280 126GB/s Consumer 0.3 Drive Writes Per Day Multi-Level Cell Peripheral Component Interconnect Express 3.1 Non-Volatile Memory Express 1.1b Solid State Disk Drive with Add in Card - Brand New

RD400/400A Series
The SSD for enthusiasts and hardcore gamers

Overview
Introducing a new breed of enthusiast storage, the OCZ RD400 NVM Express® M.2 solid state drive series, designed to propel high-end computing into a new realm of possibilities. The OCZ RD400 PCIe Gen3 x4 outperforms SATA SSDs by over 4.5 times in sequential read (up to 2,600 MB/s) , and over 3 times in sequential write performance (up to 1,600 MB/s) so your system won’t be deprived of the storage bandwidth your data-intensive workload requires. The OCZ RD400’s next generation NVMe® interface provides a more responsive PC experience and shorter storage latency than that of today’s traditional hard disk drives and SATA SSDs. Along with high performance, the OCZ RD400 is designed for mobile, desktop, or workstation applications.

Game-changing Storage
TOSHIBA’s new OCZ RD400 SSD redefines high performance storage for enthusiasts and hardcore gamers that feel held back by commodity storage hardware. With over 200,000 IOPS @4 KiB of random read performance at your beck and call, the OCZ RD400 will be your next high-end system.

Get in the PCI Express Lane
Why keep using an interface that was designed for hard disk drives? PCI Express revolutionizes flash storage for tomorrow’s high-speed computing age. The OCZ RD400 boosts bandwidth and puts your data in the fast lane leaving SATA SSDs in the dust.

NVM Express
Utilizing NVMe technology, the OCZ RD400 reduces latency in your system’s I/O path between the drive and your CPU, resulting in smooth and responsive performance.

Good Things Come in Small Packages
The OCZ RD400’s compact M.2 2280 form factor packs in high performance and up to 1024 GB of storage capacity enabling high-end desktop speeds to exist not only in your notebook, but directly on your motherboard without taking up a PCIe slot.

Flexibility for the Future
If you want to harness the power of NVMe now but don’t want to upgrade your motherboard yet, the OCZ RD400 is available with an M.2 PCIe adaptor add-in-card. This option allows your investment to go the distance when you opt for an M.2 platform in the future.

Features

NVMe Compliant - Say good bye to legacy storage buses
PCIe Performance - Surpass the SATA bottleneck once and for all.
M.2 2280 Compliant - Latest SSD form factor for your next gen system build.
Low Power Mode - Requires less power when drive is in standby mode.
Custom Drivers - RD400/400A utilizes custom high performance drivers
1024GB Storage - Store loads of data on up to 1024GB of SSD capacity
SSD Utility SSD Management Software - The SSD Utility was designed to help your OCZ drive thrive and lets you be in control of maintenance, monitoring, SSD tuning, OS tuning and more!

Compatibility:

This drive is compatible with any server that accepts M.2 x 80mm PCIe drives.

OCZ RD400/400A Series
SPECIFICATIONS
Model Number	RVD400-M22280-256G-A
PERFORMANCE
Sequential Read Speed	Up to 2,600 MB/s
Sequential Write Speed	Up to 1,150 MB/s
Random Read (4 KIB)	Up to 210,000 IOPS
Random Wrtite (KIB)	Up to 140,000 IOPS
ENDURANCE
TBW (Total Bytes Written)	148 TB
Daily Usage Guidelines	81 GB/day
PHYSICAL
Capacity	256GB
Form Factor	M.2 2280+AIC
Interface	PCI Express Base Specification Revision 3.1 (PCIe) Maximum Speed: 32 GT/s (PCIe Gen3x4L) Command: NVM Express Revision 1.1b (NVMe)
NAND Flash Memory Type	MLC
Dimension (L x W x H)	128GB, 256GB, 512GB: 80 x 22 x 2.23 mm 1024GB: 80 x 22 x 3.58 mm AIC: 157.64 x 105.51 x 17.2 mm
Drive Weight	128GB: 6.8 g(typ) 256GB, 512GB: 7.2 g(typ) 1024GB: 8.6 g(typ) AIC: 63 g(typ)
POWER REQUIREMENTS
Supply Voltage	128GB, 256GB, 512GB, 1024GB: 3.3 V +/- 5% AIC: 12 V +/- 5%
Power Consumption (Active)	128GB, 256GB, 512GB: 6.0 W (typ.) 1024GB and AIC: 6.4 W (typ.)
Power Consumption (Power State 5)	128GB, 256GB, 512GB, 1024GB and AIC: 6.0 mW (typ.)
ENVIRONMENTAL
Operating Temperature	0 °C to 70 °C
Storage Temperature	-40 °C to 85 °C
Shock Resistance	9.8 km/s2 {1000 G} (0.5 ms)
Vibration	Operational: 21 m/s {2.17 Grms} (Peak, 7 to 800 Hz) Non-operational: 30 m/s {3.13 Grms} (Peak, 5 to 800 Hz)
Certification	UL/cUL FCC CE RCM KC BSMI VCCI ISED
RELIABILITY / SECURITY
MTBF	1.5 Mhours
Product Health Monitoring	Self-Monitoring, Analysis and Reporting Technology (SMART) Support
COMPATIBILITY
PCI Express	Compatible with PCI Express® Base Specification Revision 3.1
Operating Systems	Windows® 10 Windows® 8.1 Windows® 7 Linux® Fedora 21 Mint 17.1 ElementaryOS Freya OpenSUSE 13.2 Ubuntu 14.04 Ubuntu 14.10
Connector Type	M.2: M.2 M key socket AIC: PCIe slot
Targeted Applications	Client desktops and laptops
ADDITIONAL
Performance Optimization	TRIM Idle Time Garbage Collection
Software	SSD management software: SSD Utility and Command Line Online Update Tool (CLOUT)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 5 Year Manufacturer

Brand New

5 Year Manufacturer Warranty

OCZ RVD400-M22280-256G-A 256GB PCIe Solid State Drive
