OCZ Technology Part #/MPN: ZD4RPFC8MT320-3200
DiscTech Item #: OCZ-ZD4RPFC8MT320-3200-BN-OE
- Brand New
- Warranty:1 Year DiscTech
- Low Stock:Call for ETA
Enterprise Grade
Capacity: 3.2TB
Speed: Solid State
Interface Types: PCIe
Form Factor: FHHL (Full-Height/Half-Length)
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: Up to 2900
Electrical Interface: PCIe - v2.0 - 8GBps
SSD Type: MLC
SSD Endurance DWPD: Consumer / Value

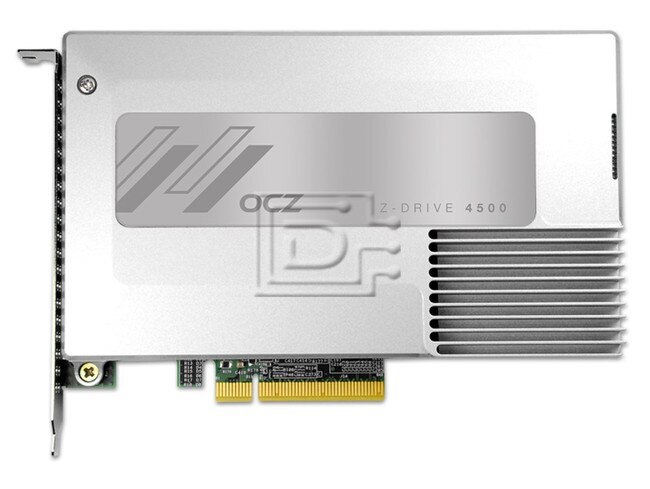

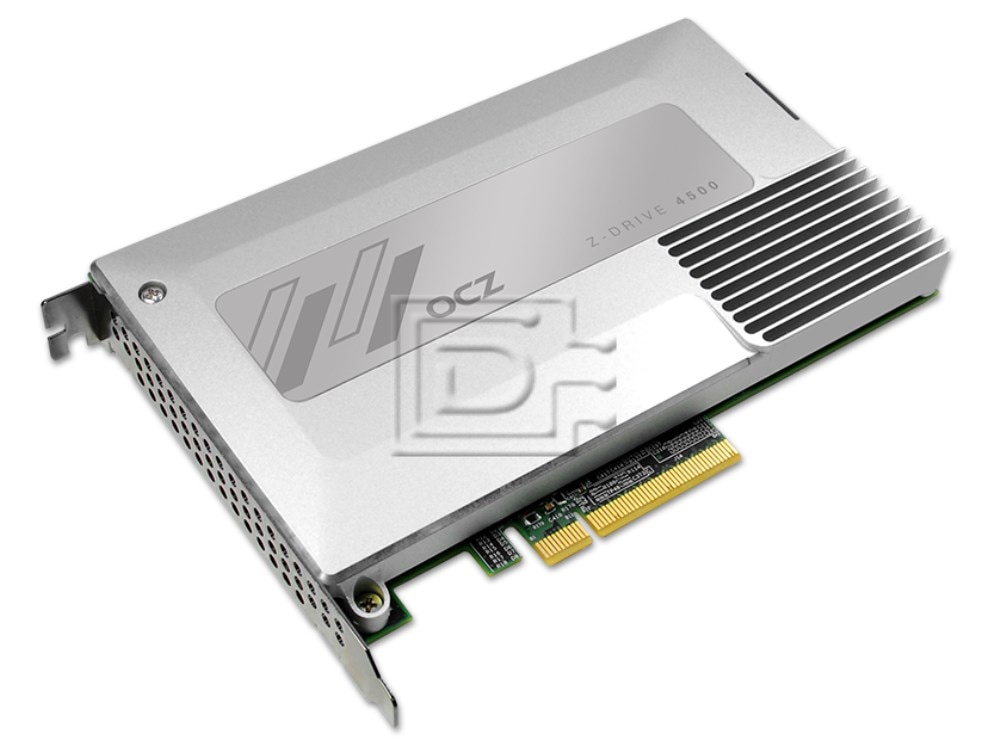

OCZ ZD4RPFC8MT320-3200 3.2TB Z-Drive 4500 SED PCIe eMLC SSD - Brand New
OCZ ZD4RPFC8MT320-3200 3200GB Z-Drive 4500 SED PCIe Enterprise Multi-Level Cell Solid State Disk Drive - Brand New
It’s storage that evolves with your ever-changing data center. More than just a high-performing SSD, the new Z-Drive 4500 is a full-featured flash solution that integrates robust performance, reliability, data protection, and monitoring functions for critical enterprise applications and demanding big data environments. Z-Drive 4500 also includes the latest software features to deliver low-latency flash resources across your infrastructure, and OCZ’s proprietary Virtualized Controller Architecture (VCA) Technology coupled with proven controller technology enables industry-leading sustained performance. As OCZ’s most advanced PCIe edge card to date, Z-Drive 4500 offers a complete acceleration, caching, and flash management solution for your enterprise storage applications./p>
Z-Drive 4500 Features
- Leading MLC-based enterprise PCIe edge card performance driven by OCZ VCA Technology
- Integrates with powerful OCZ software solutions supporting Windows application acceleration (through OCZ WXL Software) and flash virtualization (through OCZ VXL Software)
- Features a more robust design over previous Z-Drive R4 models
- Bootable as a direct-attached device
- Delivers temperature sensing and thermal throttling to maintain consistent operating conditions even under adverse temperature variances
- Provides complete power loss data protection, end-to-end data protection, advanced ECC and other capabilities that extend drive life and protect data
- New SSD casing for a more stable and cooler thermal environment
- Installation drivers support package files (RPM, DEB) that automate the deployment process
- Data compression, Data de-duplication, and AES 128bit encryption
Compatibility:
This drive is compatible with any server that accepts Full-Height/Half-Length PCIe drives
| Drive Model | ZD4RPFC8MT320-3200 |
|---|---|
| Model | Z-Drive 4500 |
| Capacity | 3200GB |
| Raw Capacity | 4096GB |
| Write Endurance | 2500TBW min |
| Physical | |
| Interface | PCI Express Gen. 2 x8 |
| NAND Components | Multi-Level Cell (MLC) |
| Storage Controller | VCA 2.0 (Virtualized Controller ArchitectureTM) |
| Form Factor | Full-Height/Half-Length (FH/HL) |
| Height (mm/in) | 21.6/0.85 |
| Width (mm/in) | 180.9/7.122 |
| Length (mm/in) | 126.3/4.972 |
| Weight (g/lb) | 350/0.8 |
| Performance | |
| Max Read | Up to 2,900 MB/s |
| Max Write | Up to 2,200 MB/s |
| Sustained Random 4K Reads | Up to 252,000 IOPS |
| Sustained Random 4K Writes | Up to 76,000 IOPS |
| Sustained Random 8K Reads | Up to 155,000 IOPS |
| Sustained Random 4K Writes | Up to 31,000 IOPS |
| Enviromental | |
| Power Consumption | 20W Idle, 22.8W Active |
| Operating Temperature | 0°C ~ 55°C |
| Operating Temperature | -45°C ~ 85°C |
| Airflow Requirement | 300LFM (Linear Feet per Minute) at 25°C 550LFM (Linear Feet per Minute) at 40°C |
| Certifications | RoHS, FCC , CE, BSMI, C-TICK, VCCI, KCC, UL |
| Relability/Protection | |
| MTBF | 2 million hours |
| Endurance Rating | Minimum of 2.5PB/td> |
| Data Path Protection | End-to-end data path protection at every data juncture |
| Data Reliability | Read Unrecoverable Bit Error Rate (UBER) 10 |
| Data Encryption | Data compression, Data de-duplication, and AES 128bit encryption |
| Power Fail Protection | Full in-flight data protection for unexpected system power loss |
| Product Health Monitoring | Self-Monitoring, Analysis and Reporting Technology (SMART) support with enteprise attributes |
| Data Recovery | In case of block failures, RAID mechanisms are used to recover data |
| Relability/Additional Features | |
| Performance Optimization | TRIM (requires OS support) |
| Temperature Sensor | Temperature sensing and thermal throttling without sacrificing performance under normal operation |
| Custom Configuration Options | Allow performance aggregation across multiple cards for increased performance |
| Proprietary Virtualized Controller Architecture (VCA) 2.0 | Virtualizes SSD devices into a massively parallel array of memory Consolidated SMART support |
| Upgradable Firmware | Field-upgradable firmware |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
