OCZ Technology Part #/MPN: ZD4RPFC8MT300-0800

DiscTech Item #: OCZ-ZD4RPFC8MT300-0800-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 800GB

Speed: Solid State Memory

Interface Types: PCIe

Form Factor: Full-Height/Half-Length

Encryption/SED Supported

Sector Size: 512 / 512e

Sustained Throughput: Up to 2,900

Electrical Interface: PCIe - v2.0 - 8GBps

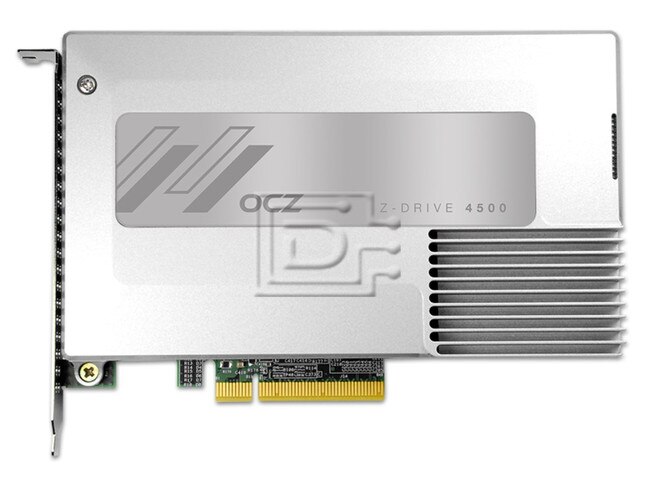

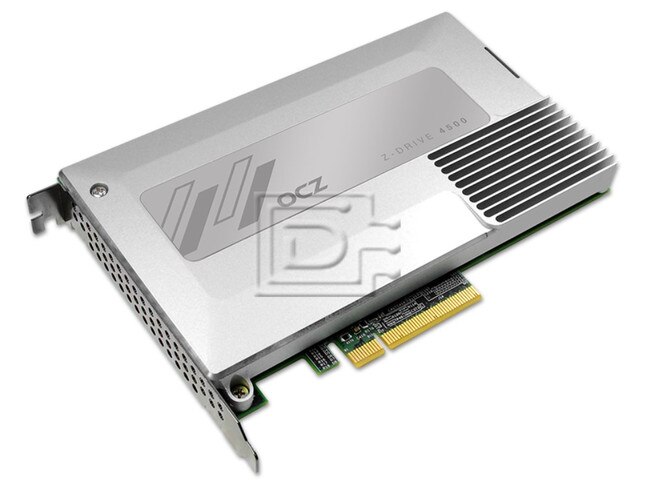

OCZ ZD4RPFC8MT300-0800 800GB Z-Drive 4500 SED PCIe eMLC SSD - Brand New

OCZ ZD4RPFC8MT300-0800 800GB Z-Drive 4500 SED PCIe Enterprise Multi-Level Cell Solid State Disk Drive - Brand New

It’s storage that evolves with your ever-changing data center. More than just a high-performing SSD, the new Z-Drive 4500 is a full-featured flash solution that integrates robust performance, reliability, data protection, and monitoring functions for critical enterprise applications and demanding big data environments. Z-Drive 4500 also includes the latest software features to deliver low-latency flash resources across your infrastructure, and OCZ’s proprietary Virtualized Controller Architecture (VCA) Technology coupled with proven controller technology enables industry-leading sustained performance. As OCZ’s most advanced PCIe edge card to date, Z-Drive 4500 offers a complete acceleration, caching, and flash management solution for your enterprise storage applications./p>

Z-Drive 4500 Features

  • Leading MLC-based enterprise PCIe edge card performance driven by OCZ VCA Technology
  • Integrates with powerful OCZ software solutions supporting Windows application acceleration (through OCZ WXL Software) and flash virtualization (through OCZ VXL Software)
  • Features a more robust design over previous Z-Drive R4 models
  • Bootable as a direct-attached device
  • Delivers temperature sensing and thermal throttling to maintain consistent operating conditions even under adverse temperature variances
  • Provides complete power loss data protection, end-to-end data protection, advanced ECC and other capabilities that extend drive life and protect data
  • New SSD casing for a more stable and cooler thermal environment
  • Installation drivers support package files (RPM, DEB) that automate the deployment process
  • Data compression, Data de-duplication, and AES 128bit encryption


This drive is compatible with any server that accepts Full-Height/Half-Length PCIe drives.

Drive ModelZD4RPFC8MT300-0800
ModelZ-Drive 4500
Raw Capacity1024GB
Write Endurance680TBW min
InterfacePCI Express Gen. 2 x8
NAND ComponentsMulti-Level Cell (MLC)
Storage ControllerVCA 2.0 (Virtualized Controller ArchitectureTM)
Form FactorFull-Height/Half-Length (FH/HL)
Height (mm/in)21.6/0.85
Width (mm/in)180.9/7.122
Length (mm/in)126.3/4.972
Weight (g/lb)350/0.8
Max ReadUp to 2,900 MB/s
Max WriteUp to 2,200 MB/s
Sustained Random 4K ReadsUp to 252,000 IOPS
Sustained Random 4K WritesUp to 76,000 IOPS
Sustained Random 8K ReadsUp to 155,000 IOPS
Sustained Random 4K WritesUp to 31,000 IOPS
Power Consumption18.4W Idle, 20.8W Active
Operating Temperature0°C ~ 55°C
Operating Temperature-45°C ~ 85°C
Airflow Requirement300LFM (Linear Feet per Minute) at 25°C 550LFM (Linear Feet per Minute) at 40°C
CertificationsRoHS, FCC , CE, BSMI, C-TICK, VCCI, KCC, UL
MTBF2 million hours
Endurance RatingMinimum of 0.68PB/td>
Data Path ProtectionEnd-to-end data path protection at every data juncture
Data ReliabilityRead Unrecoverable Bit Error Rate (UBER) 10
Data EncryptionData compression, Data de-duplication, and AES 128bit encryption
Power Fail ProtectionFull in-flight data protection for unexpected system power loss
Product Health MonitoringSelf-Monitoring, Analysis and Reporting Technology (SMART) support with enteprise attributes
Data RecoveryIn case of block failures, RAID mechanisms are used to recover data
Relability/Additional Features
Performance OptimizationTRIM (requires OS support)
Temperature SensorTemperature sensing and thermal throttling without sacrificing performance under normal operation
Custom Configuration OptionsAllow performance aggregation across multiple cards for increased performance
Proprietary Virtualized Controller Architecture (VCA) 2.0Virtualizes SSD devices into a massively parallel array of memory Consolidated SMART support
Upgradable FirmwareField-upgradable firmware
