PNY TECHNOLOGIES Part #/MPN: VCQ5000-PB
DiscTech Item #: PNY-VCQ5000-PB-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: PCIe, DVI-D, VGA
On-Board Cache: 120GB

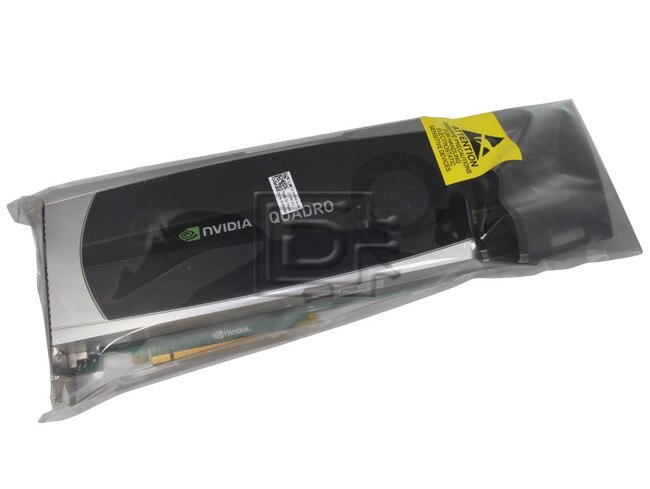

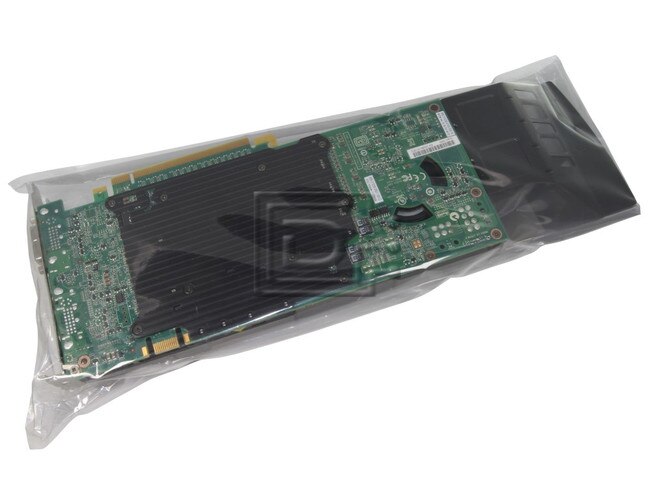

PNY Dell Quadro 5000 2.5GB PCI-E 2.0 x 16 DVI VCQ5000-PB / YMYKM Graphics Card - Brand New
NVIDIA® Quadro® 5000 by PNY - Ultra Fast Application Performance
The NVIDIA Quadro 5000 by PNY offers ECC memory and fast double precision to ensure the accuracy and fidelity of your work. Quadro is designed to run computationally intensive applications such as ray tracing, video processing and computational fluid dynamics; supports DirectX 11.0, OpenGL 4.1 and Shader Model 5.0 hardware acceleration, and drives a variety of display types including: CRTs, Digital Flat Panels, Projectors and HDTVs.
The PNY VCQ5000-PB graphics card also includes a removable PCI bay guide specifically for use in Dell systems.
Alt DPNs : YMYKM / 0YMYKM
Compatibility:
The removable PCI bay guide makes this graphics card compatible with the following Dell systems ...
- External OEMR R5500
- Precision T3500
- Precision R5500
- Precision T3600
- Precision T7600
- Precision T5600
In removing this PCI bay guide, the PNY VCQ5000-PB becomes compatible with any other system using a PCIe x16 expansion slot.
Specifications | |
---|---|
GPU Memory | 2.5 GB GDDR5 |
Memory Interface | 320-bit |
Memory Bandwidth | 120 GB/sec |
CUDA Parallel Processing Cores | 352 |
ECC (Error Correcting Code) | Yes |
High Performance Double Precision | Yes |
Maximum Power Consumption | 150 W |
Energy Star Compliant | Yes |
Physical Dimensions | 4.376” H x 9.50” L Dual Slot |

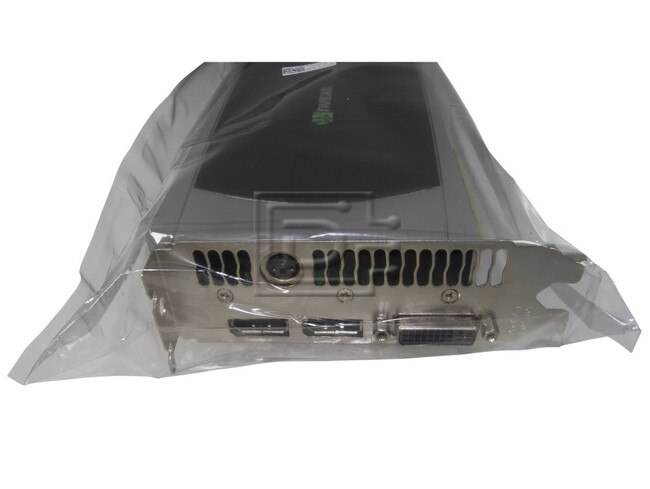

Display Connectors | DVI-DL + DP + DP + ST |
Number of Displays Supported | 2 |
DP | Yes |
DVI | Yes |
VGA | Yes |
Graphics Bus | PCI Express 2.0 x16 |
Thermal Solution | Active |
3D Vision Pro | Support via 3-pin Mini-DIN |
Maximum Digital Resolution | 2560 x 1600 at 60Hz |
Graphics APIs | DirectX 11, OpenGL 4.0 and Shader Model 5.0 |
Compute APIs | NVIDIA CUDA, DirectCompute and OpenCL |
PNY Part Number | VCQ5000-PB |
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA® GigaThread™engine with dual copy engines
- OpenGL 4.1, DirectX 11.0 and Shader Model 5.0
- Optimized compiler for Cg and Microsoft HLSL
- Up to 16K x16K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 128-bit floating point performance
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- DivX (version 3.11 and later), and Flash (10.1 and later)
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA CUDA Parallel Processing Architecture
- API support includes CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- NVIDIA® Parallel DataCache™ hierarchy (configurable L1 and unified L2 caches)
- ECC (Error Correction Code) memory
- 64 KB of RAM (configurable partitioning of shared memory and L1 cache)
- Fully IEEE 754-2008 compliant fast 32- and 64-bit double precision floating point computation
- Dual Warp Scheduler (schedules and dispatches simultaneously instructions from two independent warps)
Advanced Display Features
- 30-bit color (10-bit per each red, green, blue channel)
- Support for any combination of two connected displays
- Dual DisplayPort resolution up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz
- DisplayPort 1.1a with HDCP support
- Single DVI-DL output up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz
- DisplayPort to VGA adapter sold separately, PNY PN 91007808-T
- DisplayPort to DVI-DL adapter sold separately, PNY PN 91008126
- DisplayPort to HDMI adapters available from 3rd parties
- Full OpenGL quad buffered stereo support
- NVIDIA® 3D Vision™ Pro support via dedicated 3-pin mini-DIN stereo bracket
- Underscan/overscan compensation and hardware scaling
- NVIDIA® Mosaic™ multi-display technology
- NVIDIA® nView® multi-display technology
- Support for Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
- HDMI digital audio requires the purchase of a 3rd party DisplayPort to HDMI adapter
DisplayPort and HDMI Digital Audio
- Windows® 7, Vista, XP SP3, Linux®, or Solaris®
- PCIe x16 expansion slot
- 1GB or more of system memory, 2GB recommended
- 200MB of available disk space for full driver installation
- Blu-ray, DVD-ROM or CD-ROM drive
- DisplayPort, DVI or VGA compatible display(s)
Minimum System Requirements
Click here to view the manufacturer's item description/brochure
Alternate MPNs: YMYKM 0YMYKM
Weight: 6 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
