PNY TECHNOLOGIES Part #/MPN: M5000
DiscTech Item #: PNY-M5000-RF-OE
- Refurbished
- Warranty:1 Year DiscTech
- Inventory Is Inbound
Interface Types: PCIe, DVI-D, VGA

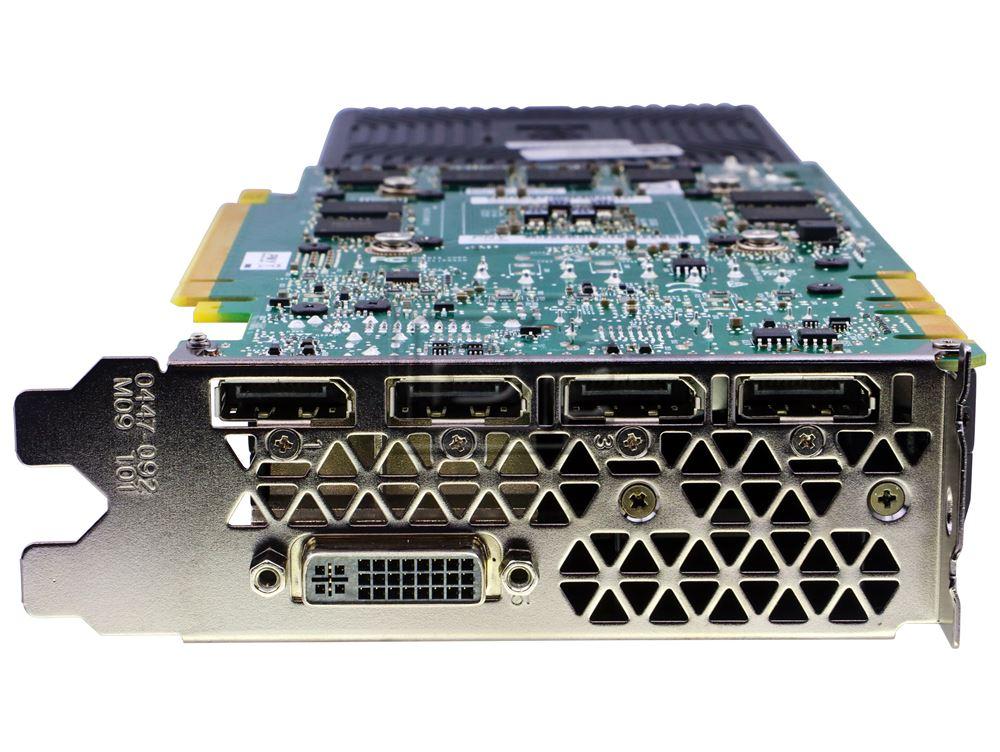

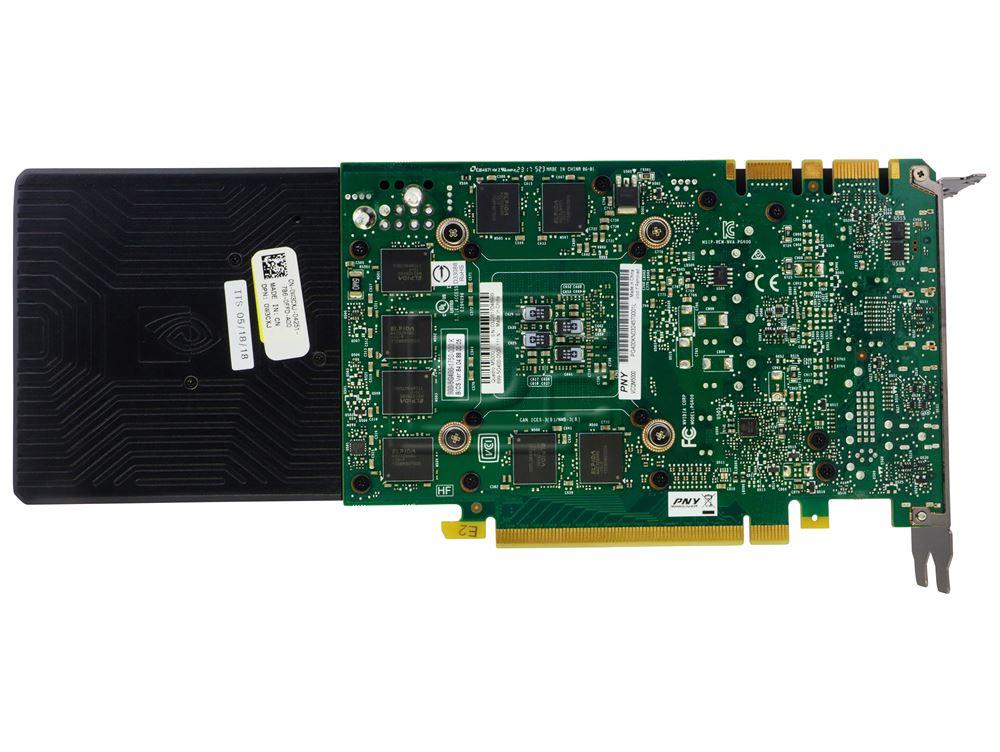

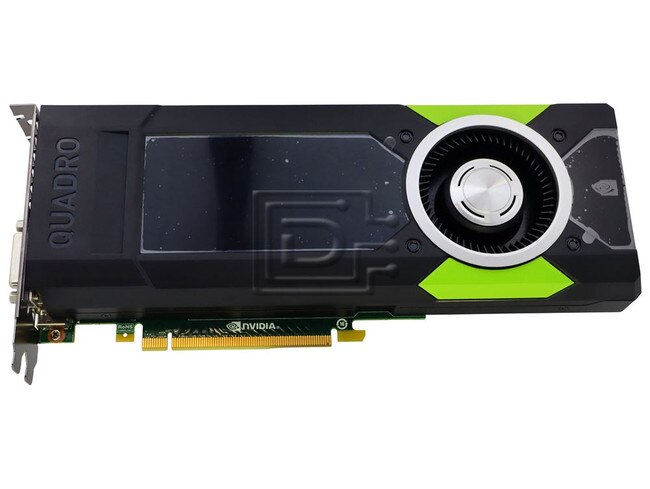

PNY / Nvidia Quadro M5000 8GB GDDR5 PCIe 3.0 x 16 Desktop Graphics Card - Refurbished
PNY / Nvidia Quadro M5000 8GB GDDR5 PCIe 3.0 x 16 Desktop Graphics Card - Refurbished
Get real interactive expression with NVIDIA® Quadro® —the world’s most powerful workstation graphics.
The NVIDIA Quadro M5000, accelerated by NVIDIA’s Maxwell™ GPU architecture, delivers incredible performance within just 150W to let you unleash your creativity and conquer extreme workloads with ease. 8 GB of GDDR5 GPU memory with fast bandwidth allows you to create and render large, complex models and compute massive datasets with ECC support for added reliability. Plus, there’s a new display engine that drives up to four 4K resolution displays natively for ultra-high resolutions like 4096x2160 @ 60 Hz with 30-bit color. Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock multiple displays together1 . Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you’re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
Features
- Four DisplayPort 1.2 Connectors
- DisplayPort with Audio
- VGA Support
- 3D Stereo Support
- NVIDIA GPUDirect™ Support
- Quadro Sync Compatibility
- Stereo Connector
- NVIDIA nView® Desktop Management Software
- HDCP Support
- NVIDIA Mosaic3
Compatibility:
Compatible with any PC that supports 8GB DDR5 4.4” H x 10.5” L Dual Slot, Full Height Graphics cards.
Specifications | |
---|---|
GPU Memory | 8 GB GDDR5 |
Memory Interface | 256-bit |
Memory Bandwidth | 211 GB/sec |
CUDA Parallel Processing Cores | 2048 |
ECC (Error Correcting Code) | Yes |
High Performance Double Precision | Yes |
Maximum Power Consumption | 150 W |
Energy Star Compliant | Yes |
Physical Dimensions | 4.4” H x 10.5” L Dual Slot, Full Height |
Display Connectors | 4x DP 1.2 + DVI-I DL |
Number of Displays Supported | 4 direct, 4 DP 1.2 Multi-Stream |
DP | Yes |
DVI | Yes |
VGA | Yes |
Graphics Bus | PCI Express 2.0 x16 |
Thermal Solution | Active |
3D Vision Pro | Support via 3-pin Mini-DIN |
Maximum Digital Resolution | 4096 × 2160 at 60 Hz |
Graphics APIs | Shader Model 5.0, OpenGL 4.54 , DirectX 12.05 |
Compute APIs | CUDA, DirectCompute, OpenCL™ |
PNY Part Number | Quadro M5000 |
3D Graphics Architecture
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA® GigaThread™engine with dual copy engines
- OpenGL 4.1, DirectX 11.0 and Shader Model 5.0
- Optimized compiler for Cg and Microsoft HLSL
- Up to 16K x16K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 128-bit floating point performance
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- DivX (version 3.11 and later), and Flash (10.1 and later)
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
NVIDIA CUDA Parallel Processing Architecture
- API support includes CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- NVIDIA® Parallel DataCache™ hierarchy (configurable L1 and unified L2 caches)
- ECC (Error Correction Code) memory
- 64 KB of RAM (configurable partitioning of shared memory and L1 cache)
- Fully IEEE 754-2008 compliant fast 32- and 64-bit double precision floating point computation
- Dual Warp Scheduler (schedules and dispatches simultaneously instructions from two independent warps)
Advanced Display Features
- 30-bit color (10-bit per each red, green, blue channel)
- Support for any combination of two connected displays
- Dual DisplayPort resolution up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz
- DisplayPort 1.1a with HDCP support
- Single DVI-DL output up to 2560 x 1600 at 60Hz or 1920 x 1200 at 120Hz
- DisplayPort to VGA adapter sold separately, PNY PN 91007808-T
- DisplayPort to DVI-DL adapter sold separately, PNY PN 91008126
- DisplayPort to HDMI adapters available from 3rd parties
- Full OpenGL quad buffered stereo support
- NVIDIA® 3D Vision™ Pro support via dedicated 3-pin mini-DIN stereo bracket
- Underscan/overscan compensation and hardware scaling
- NVIDIA® Mosaic™ multi-display technology
- NVIDIA® nView® multi-display technology
- Support for Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
- HDMI digital audio requires the purchase of a 3rd party DisplayPort to HDMI adapter
- Windows® 7, Vista, XP SP3, Linux®, or Solaris®
- PCIe x16 expansion slot
- 1GB or more of system memory, 2GB recommended
- 200MB of available disk space for full driver installation
- Blu-ray, DVD-ROM or CD-ROM drive
- DisplayPort, DVI or VGA compatible display(s)
Click here to view the manufacturer's item description/brochure
Alternate MPNs: W3CXJ 0W3CXJ
Weight: 6 lb
Warranty: 1 Year DiscTech
Refurbished
1 Year DiscTech Warranty
