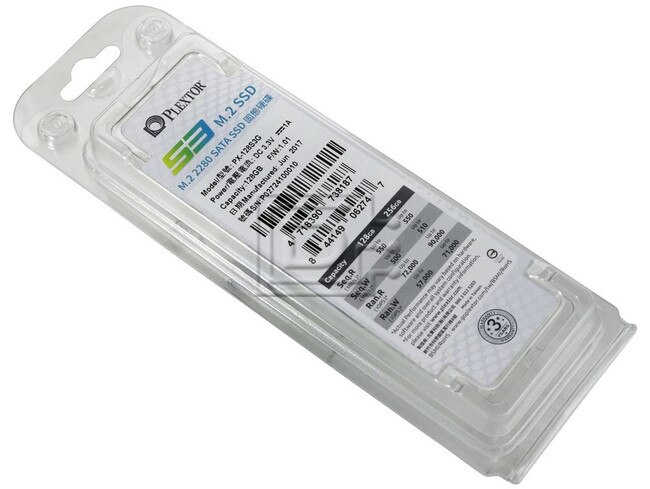

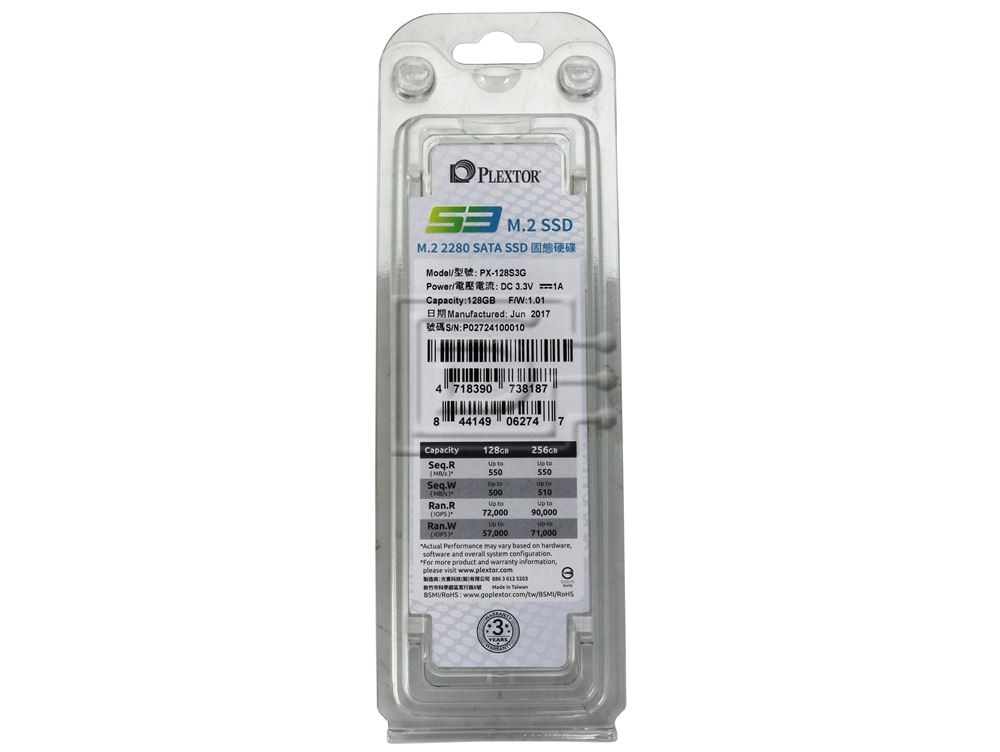

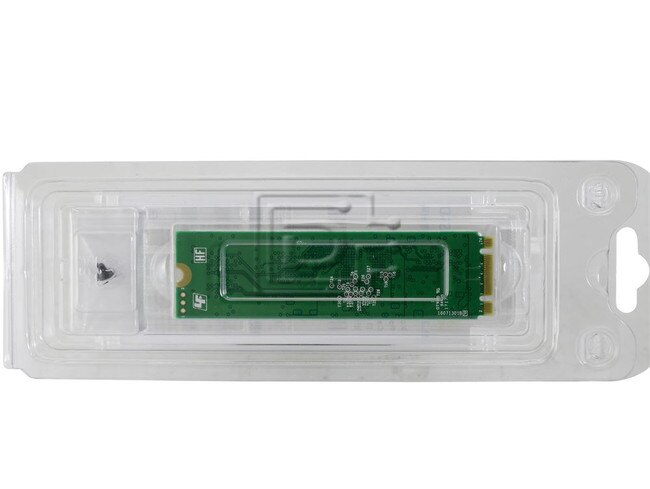

Plextor S3 PX-128S3G 128GB M.2 2280 6Gbps TLC SATA SSD

Plextor Part #/MPN: PX-128S3G

DiscTech Item #: PLX-PX-128S3G-BN-3Y


Capacity: 128GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: M.2 x 80mm

Sector Size: 512 / 512e

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

Plextor S3 PX-128S3G 128GB M.2 2280 6Gbps TLC SATA SSD - Brand New

Plextor S3 PX-128S3G 128GB M.2 2280 6Gbps TLC SATA SSD


  • Up to 550 MB/s Sequential Read
  • Up to 510 MB/s Sequential Write
  • Up to 90K IOPS Random Read
  • Up to 71K IOPS Random Write

New processes for advanced components

Only the latest components were selected for the S3 series namely, Hynix's advanced 14nm process triple level cell NAND flash memory, and SMI 2254 controller. These components combined allows the S3 Series to deliver sequential read/write speeds of 550/510 MB/s with random read/write speeds of 90K/71K IOPS. Compared to the sluggish and traditional hard drives, this is a remarkable level of performance. Despite being entry-level devices, their professional quality standard is nonetheless worth noting.

Real capacity of high speed cache

Use the SSDs full storage capacity! The proprietary industry-leading PlexNitro technology uses SLC cache design, which means the S3 does not need to reserve over-provisioning space, thus leading to accelerated read/write speeds. This means the users can use the full capacity of the drive. Take 128GB SSD as an example: after deducting the over-provisioning space used by other brands, only about 120GB of space will be left. With the PlexNitro performance optimization technology,however, the full 128GB of space can be used, with no reduction at all.


This drive is compatible with any server that accepts M.2 x 80mm SATA drives

Command Set Support:


Plextor (Solid State Drive)
Model NumberPX-128S3G
Alt Model Number
Form FactorM.2 2280
InterfaceSATA III (6 Gb/s) backward compatible to SATA II and I
Size & Weight80 x 22 x 2.3 mm / 3.15 x 0.87 x 0.09 inch,  10g / 0.35oz
Performance [4KB QD32]
Seq. Read up to (MB/s)550
Seq. Write up to (MB/s)510
Random Read up to (IOPS)90k
Read Write up to (IOPS)71k
Endurance (TBW)50
Average Power (mW)
Active Power (W)
Max Read Operating (mW)
Max Write Operating (mW)
MTTF1,500,000 hours
Operating Temperatures0°C ~ 70°C / 32°F ~ 158°F (Operating)
Non-Operating Temperatures-55°C to 85°C
Operating Vibration5.0 gRMS, 10 – 2000 Hz
Non-Operating Vibrations 4.9 gRMS, 7 – 800 Hz
Shock1,500 G @0.5 msec half sine
CertificationFCC, UL, TUV, KC, BSMI, VCCI

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
