PROMISE Part #/MPN: E630FDQS6
DiscTech Item #: PRO-E630FDQS6-BN-3Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel - Internal - Arbitrated Loop ASA II, Ethernet RJ45, PCIe, SFF-8088
Form Factor: 3.5inx1.0in LFF Hard Drive
Electrical Interface: FC-AL - 8Gbps
On-Board Cache: 4GB
U Height: 3U
Voltage: 110-240V Multi

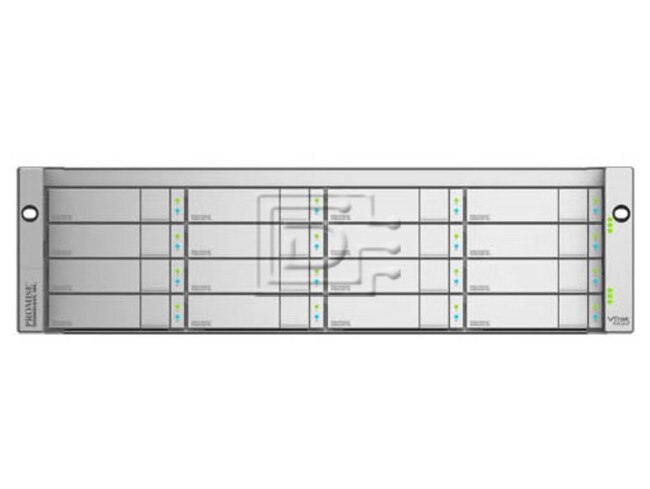

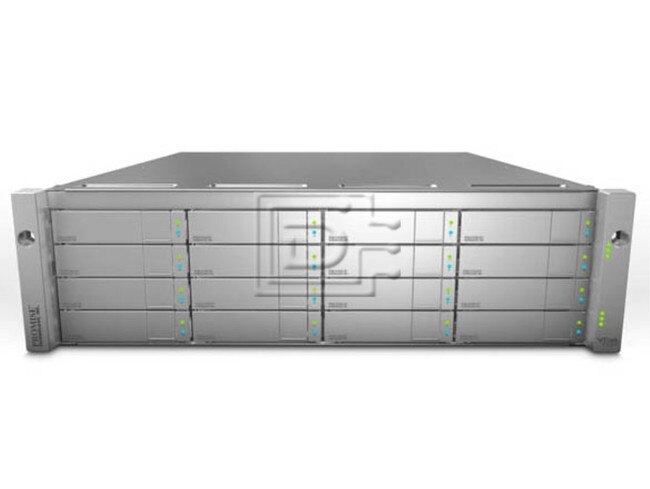

Promise Technology VTrak E630FDQS6 E630F Series 3U 96TB Fiber Channel SAN / NAS RAID Subsystem Storage Array w/ HDDs - Brand New
Promise Technology VTrak E630FDQS6 E630F Series 3U 96TB (16 x 6TB) Fiber Channel Dual-Controller SAN / NAS RAID Subsystem Storage Array with Hard Disk Drives - Brand New
This storage array includes 16x 6TB 7200 RPM NL-SAS hard drives.
Tomorrow’s Performance. Today.
The PROMISE VTrak x30 Series RAID subsystem is a high performance, massively scalable 8G Fibre Channel storage subsystem designed to provide 24/7, 365 enterprise-class availability. Optimized to work within an OS X environment, the VTrak x30 Series offers up to four times more performance than the previous generation delivering up to 5.5 GB/s for reads and 2.4 GB/s for writes.
The VTrak x30 Series RAID solution was developed to meet the mission critical needs of today’s demanding video workflows. At the heart of the PROMISE VTrak x30 Series RAID subsystem is an advanced, high-performance RAID engine developed over the course of two decades. Powered by nextgeneration processing power from Intel, the Xeon C3500 Series processors, the VTrak x30 unleashes tomorrow’s performance, today.
Edit & Playback Video Faster than Ever Before
Faster processor, more memory, faster FC ports is just the beginning. Enhanced cached mirroring design, auto-regeneration of data to mitigate frame drops and optimized disk access all add up to more performance for broadcast and editing environments.
Redesigned WebPAM PROe Management Suite
Designed with simplicity in mind, the all-new WebPAM PROe takes VTrak storage management to a new level. Included are automatic configurations tuned for common applications, non-disruptive software updates, power savings scheduler, performance and power monitoring statistics, drag-and-drop LUN mapping/masking and more. Everything you need is built in, just login through Safari.
Heterogeneous Environments. Always.
PROMISE has a long history of supporting multiple platforms. The VTrak x30 Series supports OS X, Windows and Linux. Extensively tested and qualified across diverse OS and SAN environments such as XSAN and StorNext, the VTrak x30 is built for your enterprise workload.
VTrak x30 Advantages
- Quad 8Gbps FC ports per controller
- Delivers up to four times more performance than previous generation
- High-availability design
- Out-of-the-box support with zero software install required
- Scale up to 9 expansion chassis for a total of 240 drives
- PerfectFlash enables software updates without requiring downtime
- Administer access control through Open Directory & LDAP
- Energy efficient power supplies offering up to 85% power efficiency
- Qualified solution for OS X, XSAN, Final Cut Pro and Adobe Premiere
- Certified for Windows, Linux, and StorNext
- VTrak A-Class storage node support ready
This product supports any mix of SAS and SATA drives simultaneously in the same enclosure.
|Form Factor||3U 16-bay|
|Controller||Dual controller (E630fD)|
|Drives Included||16x 6TB 7200 RPM NL-SAS hard drives|
|Drive Support||Up to 16 3.5”/2.5” HDDs or SSDs (Please refer to compatibility list at www.promise.com)|
NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
|External I/O Ports (per controller)||Four 8Gbps Fibre Channel ports, backwards compatible with 4Gbps and 2 Gbps Fibre Channel|
One external SAS port using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088) to connect up to 9 cascading expansion JBODs
|Data Cache||4GB data cache per controller protected with hot-swappable battery backup unit (BBU)|
|RAID Levels||0, 1, 1E, 5, 6, 10, 50, 60|
|RAID Stripe Size Support||64K, 128K, 256K, 512K and 1MB|
|Hot spares||Global or dedicated with revertible option|
|Max LUNs per subsystem||1024|
|Max LUNs per array||32|
|Supported Operating Systems||Mac OS X 10.7, 10.8 & 10.9, Microsoft Windows Server 2008 R2, Windows Server 2008 R2 SP1, Windows 7, Windows 7 SP1, Windows 8, Windows 8 SP 1, Windows Server 2012, Windows Server 2012 R2, HyperV Server 2012, RedHat Enterprise Linux 6.3 & 6.4, SuSE Linux Enterprise Server 11 SP2 & SP3, VMware ESX Server 5.5|
|Voltage||100-240 Vac Auto-Ranging|
|Current (Maximum)||10A @ 100 VAC; 5A @ 200 VAC|
|Power Conversion Efficiency||>80% @ 110V (>20% load), >80% @ 240V (>20% load)|
|Temperature||Operational: 5° to 35°C, Non-Operational: -40° to 60°C|
Click here to view the manufacturer's item description/brochure
Weight: 82 lb
Warranty: 3 Year Manufacturer
The product is brand new.
