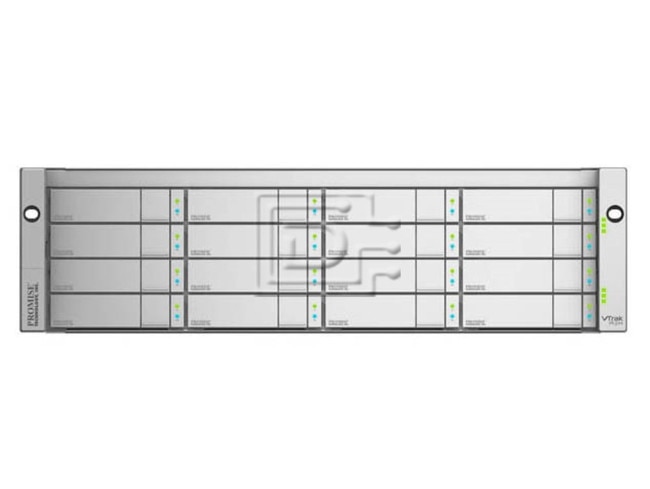

Promise Technology J630SSNX 3U 16-Bay JBOD Expansion Chassis

PROMISE Part #/MPN: J630SSNX

DiscTech Item #: PRO-J630SSNX-BN-3Y

$4,269.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:3 Year Manufacturer
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back
$4,269.00

Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 16

U Height: 3U

Wattage/VA: 580W

Voltage: 110-240V Multi

Promise Technology VTrak J630SSNX J630s Series 3U 16-Bay SAS JBOD DAS Expansion Chassis Storage Array - Brand New

Promise Technology VTrak J630SSNX J630s Series 3U 16-Bay SAS Single-Controller JBOD DAS Expansion Chassis Storage Array - Brand New

Features

  • 3U/16 form factor featuring hot-swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS and SATA drives simultaneously
  • Single active/active SAS JBOD I/O module
  • Provides up to 90% power efficiency
  • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS/SATA drives, HBAs and RAID controllers

    • Compatibility:

    This product supports up to 16 3.5”/2.5” SAS or SATA HDDs or SSDs.

Specifications
Form Factor3U 16-bay
Model # Single ControllerSingle I/O (J630sS)
Drives IncludedNo drives included
Drive SupportUp to 16 3.5”/2.5” HDDs or SSDs (Please refer to compatibility list at www.promise.com)
NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD

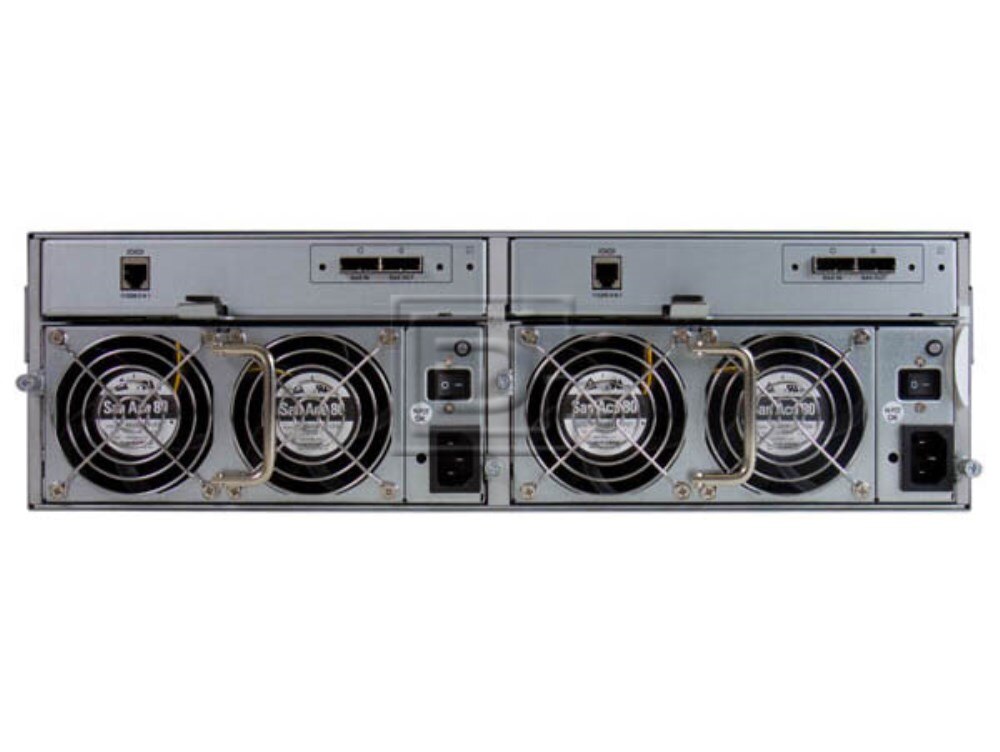

External I/O Ports (per controller)Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
I/O Module FeaturesSelf-configuring expander supports full SAS domain topology management
SMP – SAS Management Protocol
In-band access to Expander and PHY information
Statistic counters and performance monitors
SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant)
SCSI SES command set over virtual SSP device
Management InterfacesLED status indicator support for drives, FRU and enclosure environmentals
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
Full subsystem management CLI through out-of-band RS232 serial port
Enclosure Management ProtocolsSES over in-band SAS
Voltage100-240 Vac Auto-Ranging
Current (Maximum)15A @ 110 VAC; 6A @ 240 VAC
Power Conversion Efficiency>80% @ 110V (>20% load), >80% @ 240V (>20% load)
TemperatureOperational: 5° to 40°C
Non-Operational: -40° to 60°C
HumidityOperational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels55 dB (Typical), 65 dB (Maximum)
ShockOperational: 5G, 11ms duration
Non-Operational: 10G, 11ms duration
VibrationOperational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 59 lb

Warranty: 3 Year Manufacturer
