Promise Technology SANLink2 SLF2202NAA Thunderbolt2 Fibre Channel Adapter


DiscTech Item #: PRO-SLF2202NAA-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: Fibre Channel - External HSSDC DB9, Ethernet RJ45, Thunderbolt, SFP

Electrical Interface: Thunderbolt 2 - 20Gbps

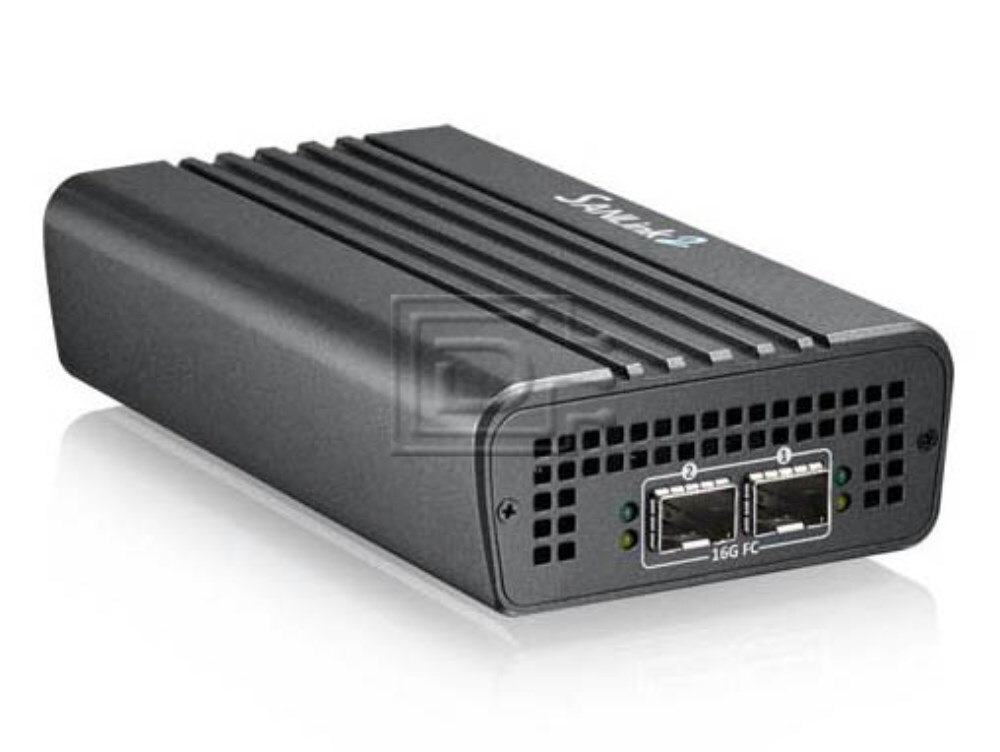

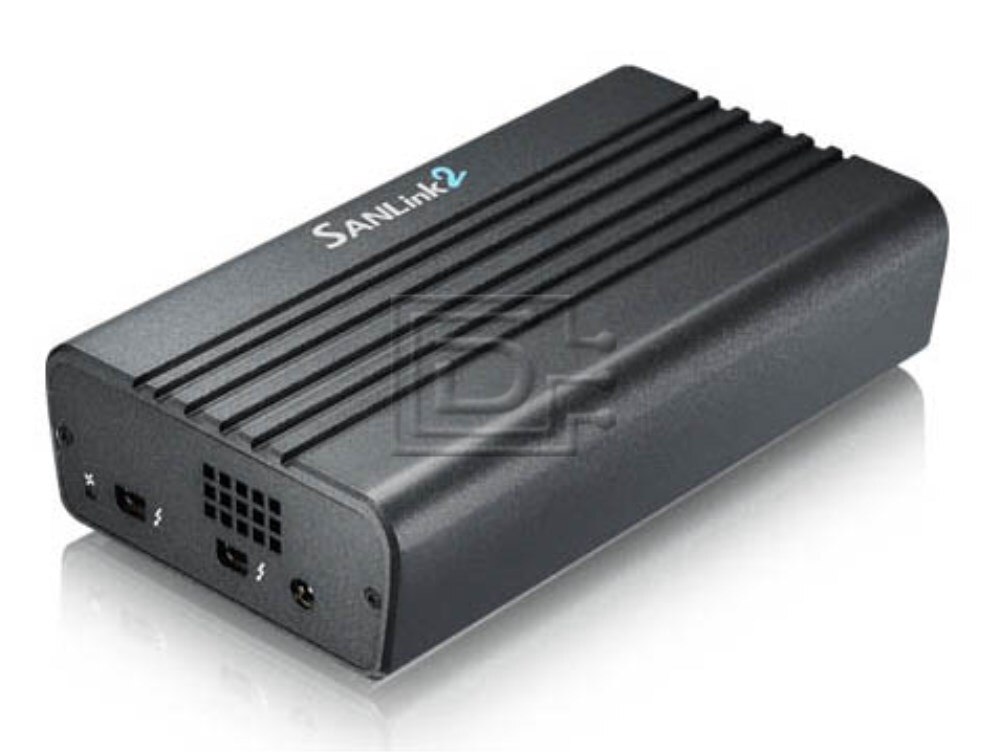

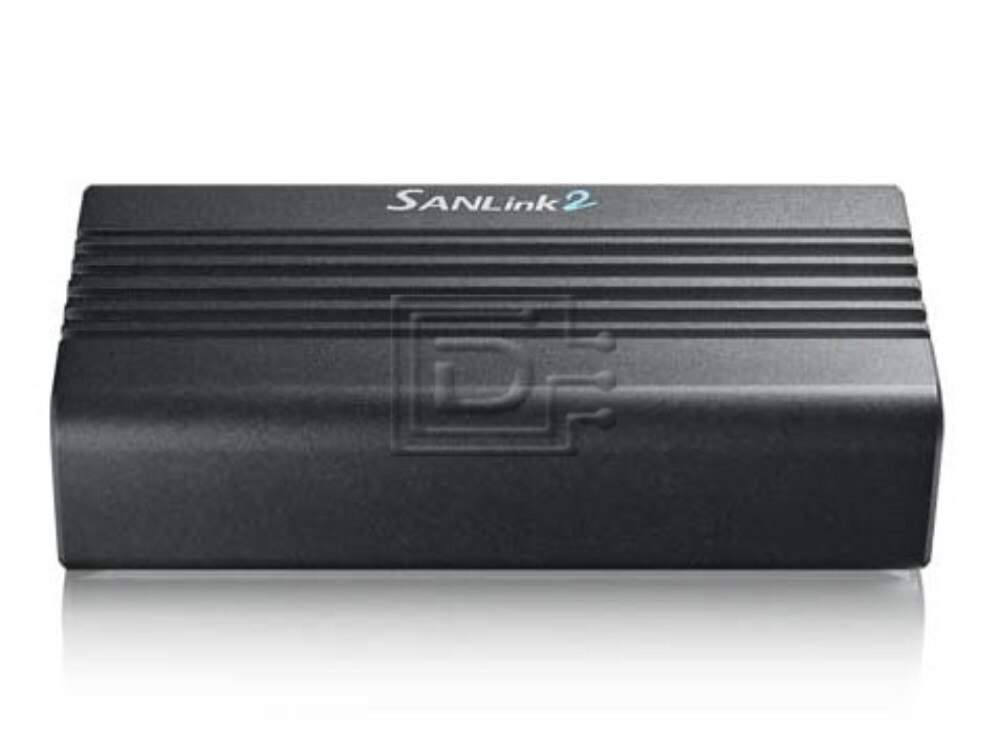

Promise Technology SANLink2 F2202 / SLF2202NAA Dual Thunderbolt2 to Dual 16Gbps Fibre Channel Adapter - Brand New

Promise Technology SANLink2 F2202 / SLF2202NAA Dual Thunderbolt2 to Dual 16Gbps Fibre Channel Adapter - Brand New

This adapters comes with a power cord and 1m/3.2ft Thunderbolt cable.

Direct Thunderbolt™ 2 Access
The new SANLink2 16G FC is a compact device that allows a Thunderbolt™ 2 host computer to directly connect to a Fibre Channel SAN, doubling the speed of the previous generation 8 Gb FC. SANLink2 10GBase-T connects devices to the local network to access shared media, and SANLink2 10G SFP+ connects devices to the network via optical for remote branches and offices at distances greater than 100 meters.

Offload video capture to a Mac Pro or Windows workstation with SANLink2
Take for example the Phantom Flex 4K camera. It transfers data to a Phantom 10 Gbps CineStation so that it can continue in an on-set shoot. The CineStation can be connected directly at 10 Gb Ethernet speeds to a MacBook Pro with SANLink2 10GBase-T (copper) or 10 G SFP+ (optical). At the same time, this MacBook Pro can have a Pegasus2 M4 SSD attached via a SANLink2 16G FC for the fastest data transfer of over 1300 MB/s for editing off multi-cameras capturing different points of view. The SANLink2 16G FC can connect this remote set up to a VTrak A-Class for collaborative editing. Similarly, SANLink2 10GBase-T might be selected if cabling for an immediate datacenter is within 30 - 100 meters. For companies that require cabling to reach beyond 100 meters, the SANLink2 10G SFP+ is the ideal choice.

Streamline the Creative Process
Real-time editing of multimedia files in their native, uncompressed formats has persisted as a challenge for creative professionals. Fortunately, with SANLink2, costly rendering time (due to proxy editing) is eliminated. Gain access to low-latency, high-bandwidth storage through reduced file loading periods. Instantaneous response times during timeline scrubbing and faster media file transfers become your new standard.

Master the 4K Workflow
At the moment high-speed transfer capabilities are placed into the workplace, systems evolve. With SANLink2, all storage bottlenecks for desktop and portable computing systems are immediately alleviated through the introduction of Fibre Channel or 10 Gb Ethernet connectivity into the work process. 4K (Ultra HD) environments consisting of bandwidth-hogging post-production and broadcasting operations now become seamless workflows, where downtime ceases to exist.


  • Dual Thunderbolt™ 2 ports and dual 16 Gb FC ports
  • Supports high data transfers ideal for creative professionals
  • Enables portable and desktop systems with Thunderbolt™ interfaces to directly connect to the FC SAN at 16 Gb speeds
  • Supports PROMISE VTrak Series and OS X
  • Supports OS X while maintaining a quiet and small environmental footprint
  • Quiet, cool, and small environmental footprint

  • Compatibility:

    Backwards compatible with previous Thunderbolt™ systems. It also supports PROMISE VTrak Series and OS X systems.

SANLink2 16G FC
Part NumberSLF2202NAA
InterfaceFibre Channel - 16 Gb (two ports)
SupportOS X Server, Final Cut Pro X, Xsan solution
ExpansionDaisy chain up to six Thunderbolt™ 2 peripherals
CompatibilityBackwards compatible with previous Thunderbolt™ systems
Supported Operating SystemsOS X v10.8.5 and 10.9 (Mavericks), Windows (OEM only)
Dimensions1.8 x 6.4 x 3.6" (4.5cm x 16.2cm x 9.14cm)
Weight1.32lb (598.7g)

Click here to view the manufacturer's item description/brochure

Alternate MPNs: F2202

Weight: 3 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
