Promise Technology VA2200GXSAIH Video Surveillance Storage Appliance


DiscTech Item #: PRO-VA2200GXSAIH-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 12TB

Interface Types: SATA

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 8GB

Bays/Ports/Slots: 6

U Height: 2U

Wattage/VA: 500W

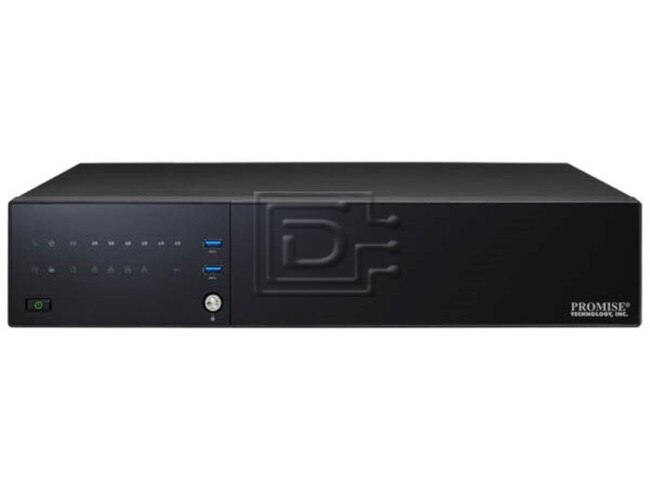

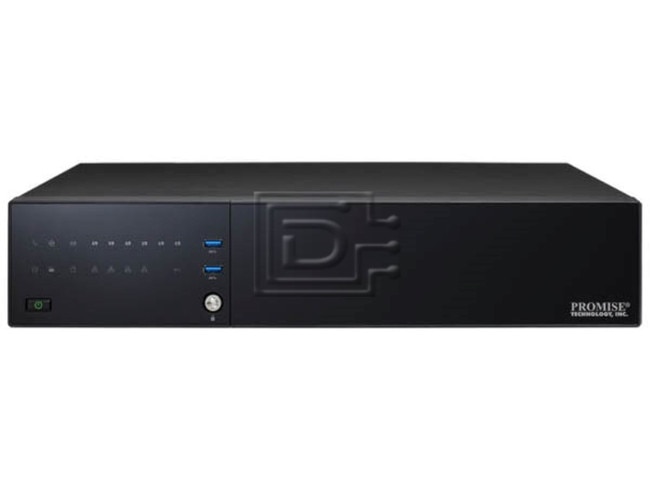

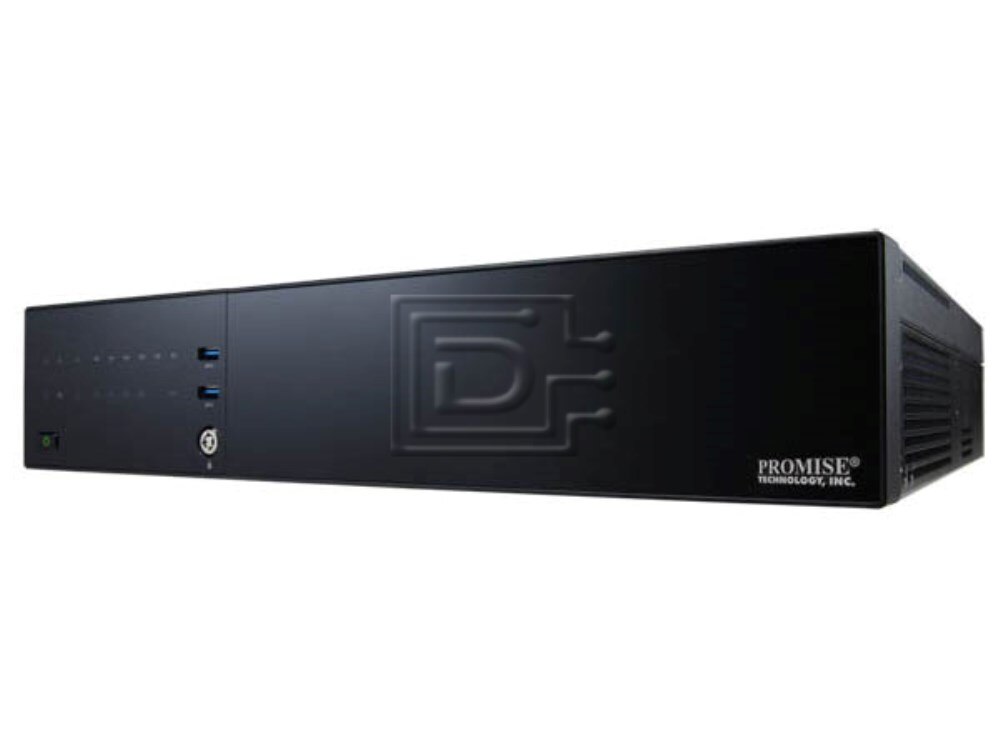

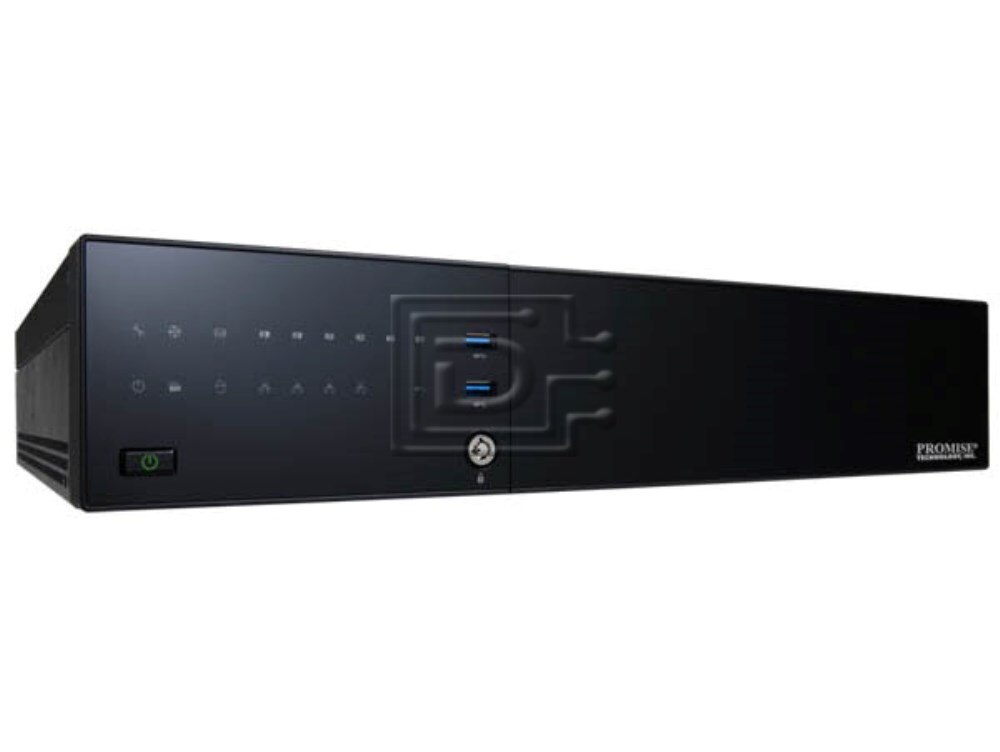

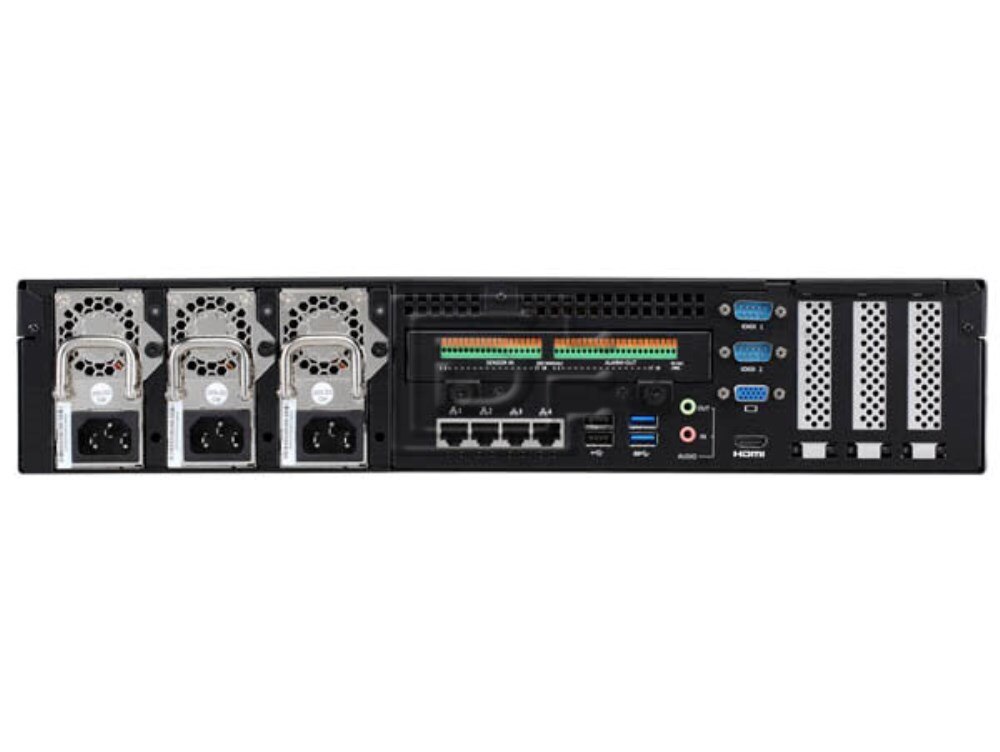

Promise Technology Vess A2200 VA2200GXSAIH 2U 12TB NVR Video Surveillance Storage Appliance w/HDDs - Brand New

Promise Technology Vess A2200 VA2200GXSAIH 2U 12TB, NVR Video Surveillance Storage Appliance with hard drives - Brand New

This unit includes 6x 2TB Enterprise SATA hard drives.


Optimized for Surveillance The Vess A2000 Series are high performance NVR storage appliances for IP video surveillance designed for installations of up to over one hundred full-HD IP cameras, making it perfect for banking, retail, gaming, manufacturing, and many more industries.
Reduces Costs and Complexity The Vess A2000 Series reduces support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A2000 Series reduces interoperability conflicts caused when integrating different hardware.
Certified by Surveillance Partners Vess has been certified and tested with the world’s leading VMS. Plus, the Vess A2000 Series supports the Milestone XProtect plug-in which allows users to manage the Vess A2000 series via the user interface of XProtect, making it significantly more convenient and simple for users.
Easy to Manage and Grow The all-in-one Vess A2000 solution makes it incredible easy to scale as your surveillance needs grow. Security practitioners can easily scale with no user configuration, just plug and add. When external storage is a must, easily scale up with PROMISE’s Vess external storage series.
Planning Tool Helps Build Your Solution The new PROMISE Surveillance Solution Planner helps determine the overall installation requirements of a given video surveillance project and makes it easier to build solutions. The planner will calculate the total storage space and bandwidth needed, in addition to the requirements for recording servers and external storage, while also including a topology of the installation for reference.

A2200 Features

  • Ideal for 32-64 HD IP camera range installation
  • Advanced RAID engine requires no separate storage unit
  • Certified with the top VMS solutions
  • Supports the Milestone XProtect plug-in
  • Scales smoothly in capacity with Vess R2000 series
  • Robust error handling enables non-stop recording without dropping frames
  • Hot swappable drive bays, redundant power supplies and One Plug Auto Service
  • Perfect for small to mid-size deployments such as retail, offices, banks, and more

A2200 Series
Part NumberVA2200GXSAIH
Product CategoryNVR Storage Appliance
Ideal Camera Range32 to 64
Form Factor2U6, 19" rackmount
Drive SupportSATA (6Gb/s or 3Gb/s), NCQ, TCQ (Initiator stll runs at 3Gb/s mode)
System ProcessorIntel Core i3 Dual-core
System Memory8GB Standard (max 16GB)
Max # of HDDs Supported118 (Expansion through iSCSI and multiple JBOD expansion enclosures)
RAID Levels0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50
Supported OS (64-bit)Windows Embedded Standard 7 Runtime (WS7P), Windows Server 2008/2012 R2 Standard, Windows Storage Server 2012R2 Standard
Power Supply500W (Three redundant 250W N+1 design), 1288 BTU/hr)
Dimensions21.2" x 19.7" x 9.1"
Weight40.1 lb

Click here to view the manufacturer's item description/brochure

Weight: 40 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
