PROMISE Part #/MPN: VA2200GXSAKH
DiscTech Item #: PRO-VA2200GXSAKH-BN-3Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 8GB
U Height: 2U

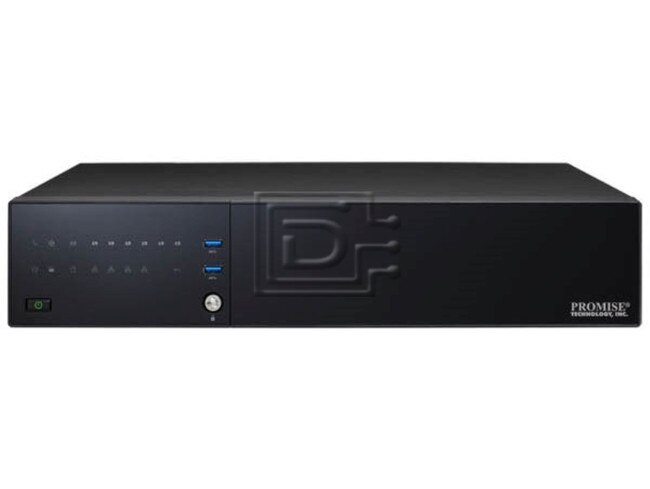

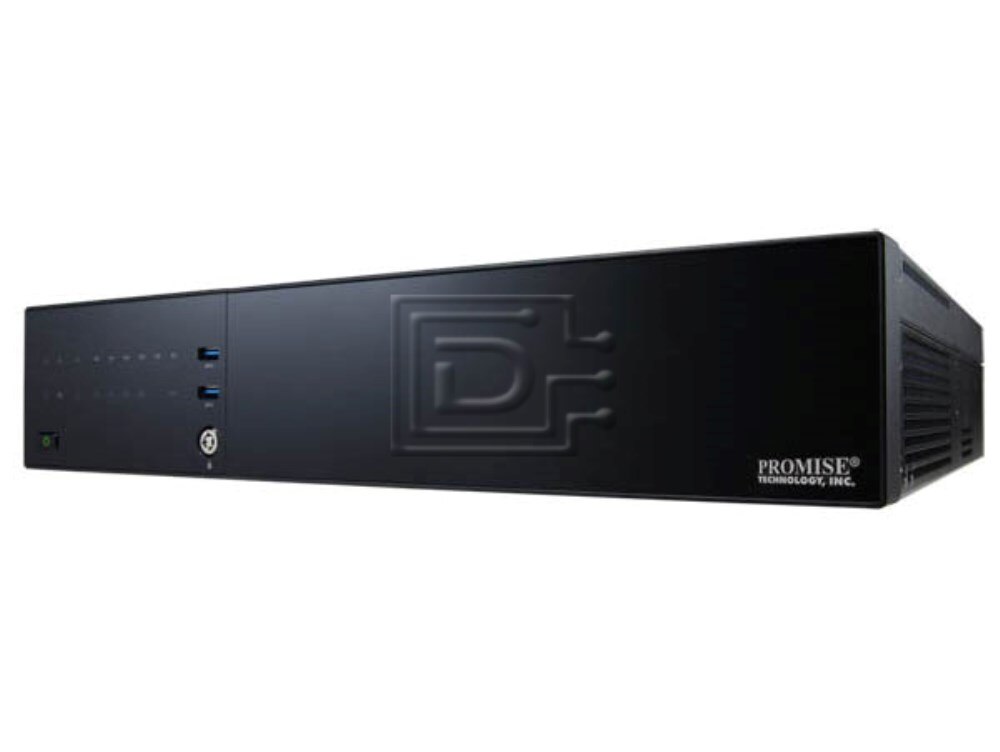

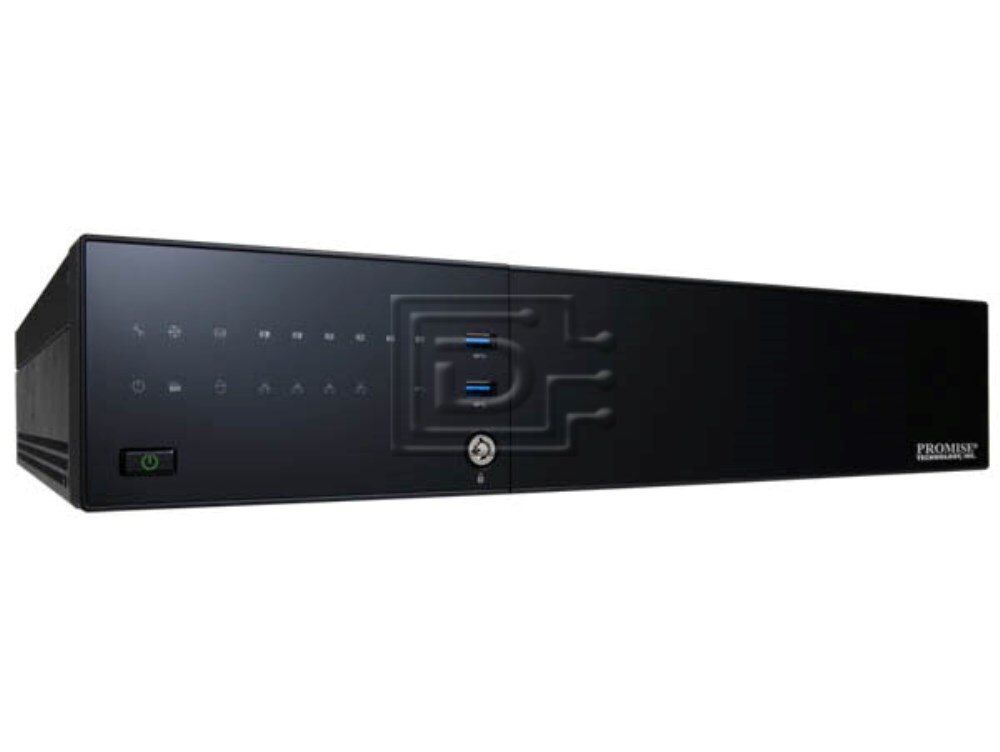

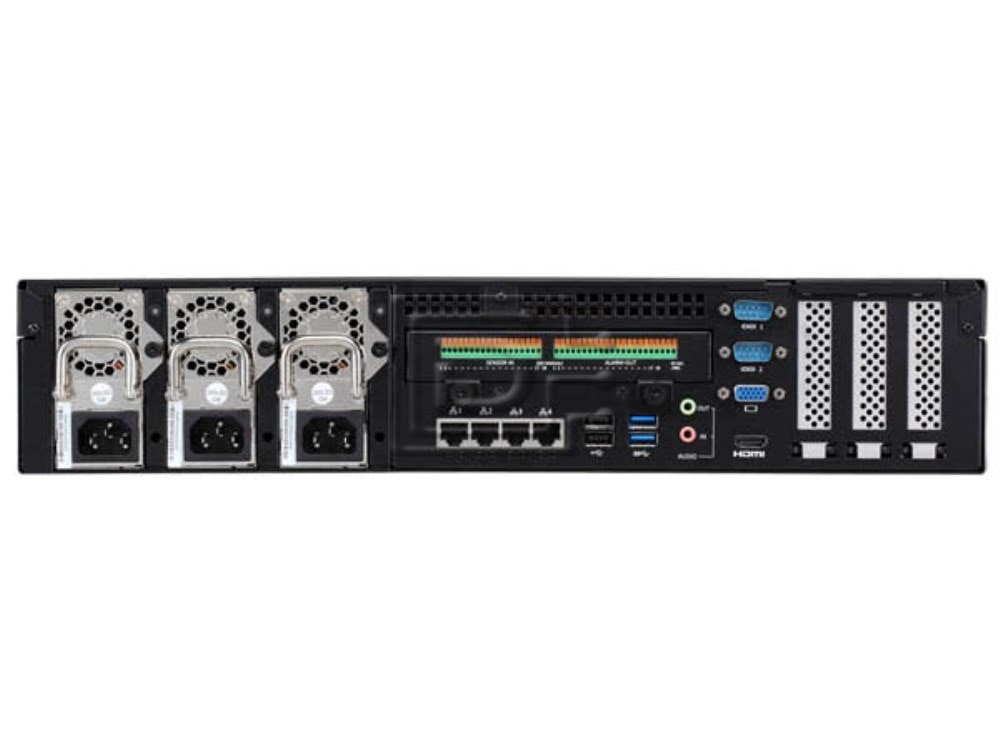

Promise Technology Vess A2200 VA2200GXSAKH 2U 18TB NVR Video Surveillance Storage Appliance w/ HDDs - Brand New
Promise Technology Vess A2200 VA2200GXSAKH 2U 18TB Network Video Recorder Video Surveillance Storage Appliance w/ HDDs - Brand New
This unit includes 6x 3TB Enterprise SATA hard drives.
Optimized for Surveillance The Vess A2000 Series are high performance NVR storage appliances for IP video surveillance designed for installations of up to over one hundred full-HD IP cameras, making it perfect for banking, retail, gaming, manufacturing, and many more industries.
Reduces Costs and Complexity The Vess A2000 Series reduces support and equipment costs because there is no separate RAID storage unit to manage, eliminating the need for a server, controller cards, external cables, and a separate storage enclosure. Additionally, the Vess A2000 Series reduces interoperability conflicts caused when integrating different hardware.
Certified by Surveillance Partners Vess has been certified and tested with the world’s leading VMS. Plus, the Vess A2000 Series supports the Milestone XProtect plug-in which allows users to manage the Vess A2000 series via the user interface of XProtect, making it significantly more convenient and simple for users.
Easy to Manage and Grow The all-in-one Vess A2000 solution makes it incredible easy to scale as your surveillance needs grow. Security practitioners can easily scale with no user configuration, just plug and add. When external storage is a must, easily scale up with PROMISE’s Vess external storage series.
Planning Tool Helps Build Your Solution The new PROMISE Surveillance Solution Planner helps determine the overall installation requirements of a given video surveillance project and makes it easier to build solutions. The planner will calculate the total storage space and bandwidth needed, in addition to the requirements for recording servers and external storage, while also including a topology of the installation for reference.
- Ideal for 32-64 HD IP camera range installation
- Advanced RAID engine requires no separate storage unit
- Certified with the top VMS solutions
- Supports the Milestone XProtect plug-in
- Scales smoothly in capacity with Vess R2000 series
- Robust error handling enables non-stop recording without dropping frames
- Hot swappable drive bays, redundant power supplies and One Plug Auto Service
- Perfect for small to mid-size deployments such as retail, offices, banks, and more
|Product Category||NVR Storage Appliance|
|Ideal Camera Range||32 to 64|
|Form Factor||2U6, 19" rackmount|
|Drive Support||SATA (6Gb/s or 3Gb/s), NCQ, TCQ (Initiator stll runs at 3Gb/s mode)|
|System Processor||Intel Core i3 Dual-core|
|System Memory||8GB Standard (max 16GB)|
|Max # of HDDs Supported||118 (Expansion through iSCSI and multiple JBOD expansion enclosures)|
|RAID Levels||0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50|
|Supported OS (64-bit)||Windows Embedded Standard 7 Runtime (WS7P), Windows Server 2008/2012 R2 Standard, Windows Storage Server 2012R2 Standard|
|Power Supply||500W (Three redundant 250W N+1 design), 1288 BTU/hr)|
|Dimensions||21.2" x 19.7" x 9.1"|
Click here to view the manufacturer's item description/brochure
Weight: 55 lb
Warranty: 3 Year Manufacturer
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
