Promise Technology VSA1970NIS1 280TB SAS Storage Solution


DiscTech Item #: PRO-VSA1970NIS1-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 280TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI, SATA, Ethernet RJ45, SFP

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 64GB


Bays/Ports/Slots: 70

U Height: 4U

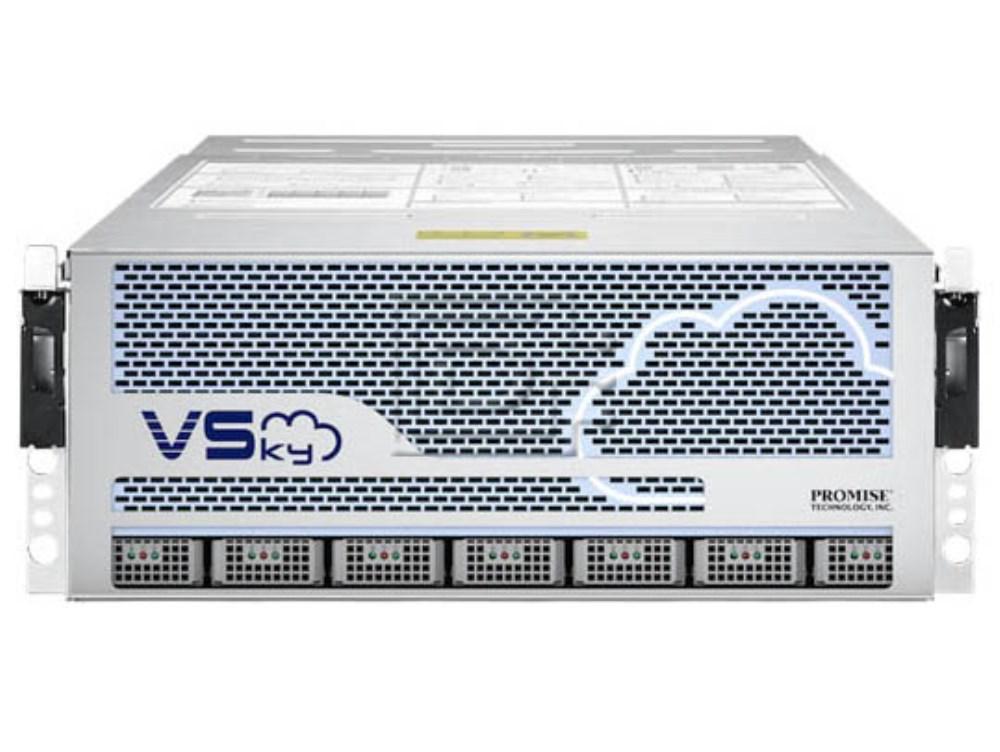

Promise Technology VSky A1970 Series VSA1970NIS1 4U 280TB SAS Expansion Storage Solution Array w/ HDDs - Includes NAS and iSCSI Licenses - Brand New

Promise Technology VSky A1970 Series VSA1970NIS1 Dual Node 4U 280TB SAS Expansion Storage Solution Array with HDDs - Includes NAS and iSCSI Licenses - Brand New

This expansion unit is dual node and includes 70x 4TB 7200 RPM 6Gbps SAS hard drives.
Each node includes NAS and iSCSI licenses.


Ideal for Media & Entertainment, Video Surveillance & Cloud/IT
VSky A-Series are scale-out storage solutions that allow businesses to scale, access and archive at petabyte volumes, making them the ideal storage platform for backup/archiving, media editing, video surveillance, virtual environments, content delivery and more.

Seamless Scaling
The explosion of data has created massive challenges for IT who must now think on a petabyte scale. However, many traditional storage systems are not able to efficiently and cost effectively store petabytes of data. VSky A-Series enable IT to overcome these challenges as customers can scale to petabyte volumes with no downtime, with a single flat name space and with no capacity planning needed.

All-in-One-Storage Solutions
Unlike competing solutions lacking multi-protocol access, VSky A-Series provides a single infrastructure with scale out capability for object, file, and block level storage. As an all-in-one storage solution, VSky A-Series overcome the complicated issue of managing different storage systems and can deliver data protection and NAS, iSCSI and Object functions via a single management interface.

Integrated Solutions
VSky A-Series are integrated solutions with both the software and hardware provided by PROMISE. This helps eliminates the installation and support issues that arise when integrating software-defined storage and commodity hardware from different vendors.

VDI/Server Virtualization
VSky's high performance iSCSI interface allows businesses to create an individual distributed storage pool that can be used dynamically in different applications.


  • 4U70 bay high density server storage
  • Dual controllers in a single box
  • Distributed storage platform for hyper-scale petabyte storage for the cloud
  • Unified storage pool for a large number of clients to access
  • Wide support for protocols and applications, including NFS/CIFS, iSCSI, Amazon S3, Swift
  • Provides data protection services and remote replication
  • Self-healing with no downtime
  • WebDAV restful API for integration
  • Multi-Tenancy
  • IO-QoS, snapshot, schedule snapshot, thin provisioning, data rebalance to reduce TCO, seamless data migration
Model NumberVSA1970NIS1
Form Factor4U
ProcessorDual Intel Xeon E5-2630 @2.6GHz, 6 Cores / controller
Memory64GB DDR3 ECC / contoller
Internal Storage3.5 HDD x 70 (HDD 35-35 configuration)
HHD3.5" SAS/SATA HDDs x 70 (35 per controller)
External RAID storagePromise VTrak J3970sDR
Storage ExpansionUp to 105 HDDs (140 HDDs in SR1) per node
Up Link Port10 Gbe SFP+ x 4
(2 ports for cluster, 2 ports for data uplink)
Down Link Port (to storage)SAS from RAID storage to JBOD
Dimensions900mm x 430mm x 174.75mm
Weight43kg (w/o HDD) 96kg (w HDD x70)
Power Consumption1480~1760(W)
Safety CertificationBSMI, CB, C-Tick, CE, FCC, KCC, VCCI, TUV, UL, CCC

Click here to view the manufacturer's item description/brochure

Weight: 210 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
