Promise Technology VTE610fD 16-Bay RAID Storage Enclosure


DiscTech Item #: PRO-VTE610FD-RF-OE


Enterprise Grade

Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel - External HSSDC DB9

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 4Gbps

On-Board Cache: 512MB

Bays/Ports/Slots: 16

U Height: 3U

Wattage/VA: 500W

Voltage: 110-240V Multi

Promise Technology VTE610fD VTrak E610f Series 3U 16-Bay Fibre/Fiber Channel to SAS / SATA Dual Controller Hot Swappable RAID Storage Enclosure - Refurbished

Promise Technology VTE610fD VTrak E610f Series 3U 16-Bay Fibre/Fiber Channel to SAS / SATA Dual Controller Hot Swappable RAID Storage Enclosure - Refurbished


  • Dual/Redundant RAID controllers with two 4Gb FC host interface ports per controller

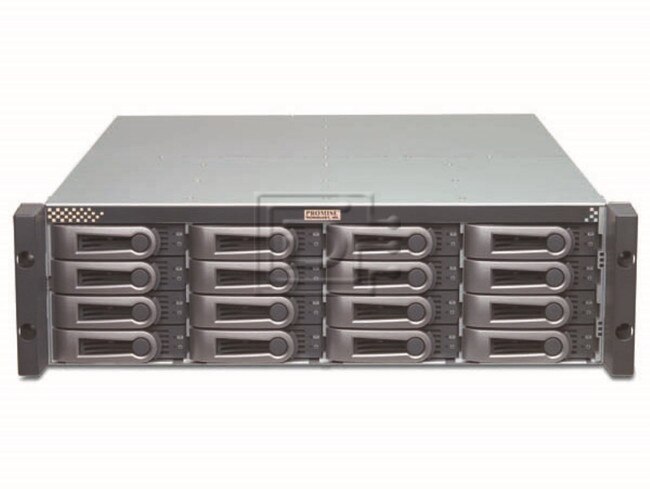

  • 16 hot-swappable drive bays in a robust 3U chassis
  • Supports Serial Attached SCSI (SAS) and SATA 3Gb/s drives simultaneously
  • RAID Levels 0, 1, 1E, 5, 6 10, 50, 60
  • One SAS-wide (x4) expansion port per controller supports up to four VTrak JBODs (80 bays total)
  • Out-of-band Ethernet or RS-232 management using standards based protocols including pop-up messages, event logging, and email notification.

High Availability

The Promise VTrak E-Class is a family of intelligent, dual controller, SAS/SATA based storage arrays that fundamentally changes storage economics from purchase and set up to operation and upgrades. Dual 4Gb Fibre Channel (FC) host interface ports per controller provide connectivity into widely deployed Fibre Channel storage networks, perfect for supplementing existing or building new storage networks. Each standard 3U 19” rack unit supports up to 16 off-the-shelf 3.5” SAS or SATA 3Gb/s drives. Attach up to four cascaded SAS JBODs to deliver over 80 bays of networked storage.

4G Fibre Channel Performance and Reliability

SAN technology has revolutionized the way data moves throughout the enterprise. VTrak E-Class joins this revolution by exceeding the performance and bandwidth requirements of even the most data intensive applications. Fibre channel’s flexible, mature technology and wide interoperability makes it the first choice for mission critical applications.

No single point of failure

This enterprise-class, cable-less system design includes fully redundant, hot-swappable controllers, power and cooling units. All system components are constantly monitored using industry standard protocols to ensure continuous operation in case of failure or component malfunction. Dual active-active, failover/failback RAID controllers provide redundant data paths to further help ensure availability.


RAID 6 (double parity) delivers the highest level of reliability and data protection in a costeffective solution. As the capacity of storage arrays increases, so does the risk of encountering unrecoverable read errors with single parity RAID levels. RAID 6 can handle double drive failures, thereby providing greater protection against data loss. This also dramatically reduces the risk of catastrophic data loss during RAID rebuilds.

Easy to install and manage

The VTrak line features Promise’s embedded browser based management interface, WebPAM PROe, eliminating the need to install additional software. All VTrak systems on the network can be configured and monitored using a single, easy-to-manage interface through an out-ofband Ethernet port. By using industry-standard management protocols, Promise simplifies integration with third-party management applications.


Simultaneously compatible with 3.5"x1" (LFF) SAS and SATA hard drive kits - SAS 3Gb/s and SATA II 3Gb/s.

Model NumberVTE610fD
E-Class 3U/16-Bay FC ModelsDual Controller Configuration Active/Active, Failover/Failback Flexible controller configurations; LUN affinity, enable/disable RCC
Drive SupportUp to sixteen 3.5” hard drives: SAS 3Gb/s SATA II 3Gb/s-- direct connect in single controller configuration or uses the Promise SATA MUX Adapter in dual I/O module configuration Supports any mix of SAS and SATA II 3Gb/s drives simultaneously in the same system; Direct SATA LED support Staggered physical drive spin-up

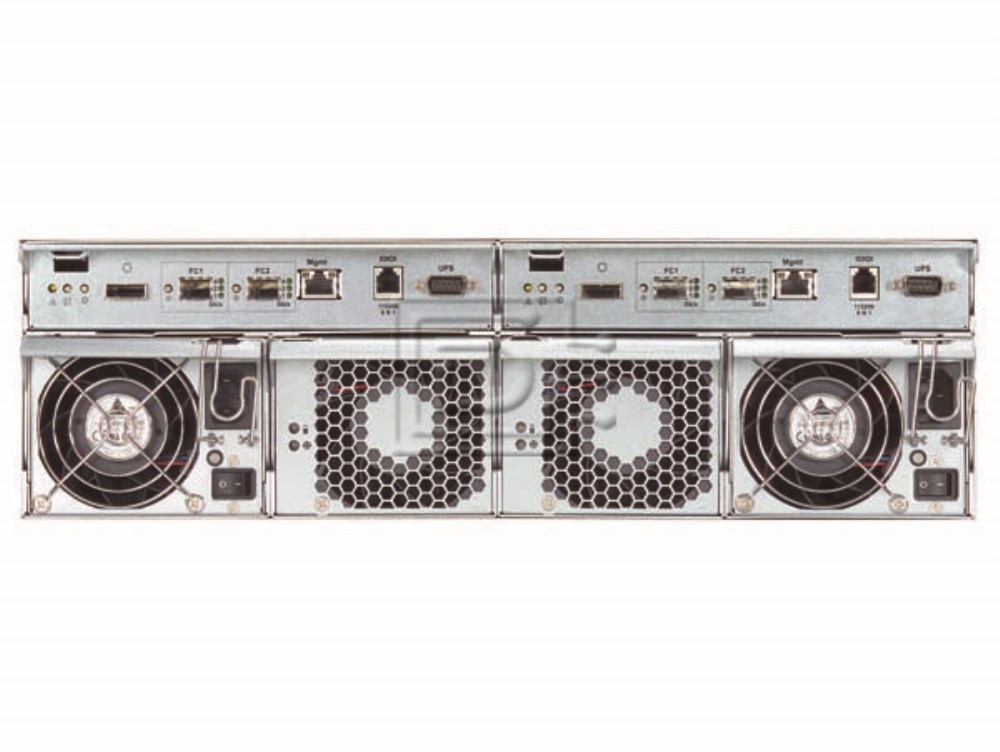

External I/O Ports (per controller)Dual 4Gb Fibre Channel host ports One external 3Gb/s SAS x4 ports for JBOD expansion (up to 4 VTrak JBOD Systems)
Data CacheShared 512MB predictive data cache (max. to 2GB per controller - purchase through Promise), Automatic write cache de-staging, 72-hour battery backup
Command Queue Depth512 commands per controller (1024 in some dual controller configurations)
RAID LevelRAID 0, 1, 1E, 5, 6, 10, 50, 60
Hot sparesMultiple global or dedicated hot-spare drives with revert options
Voltage100-240 Vac Auto-Ranging
Current (Maximum)8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords)
Power SupplyDual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
Power Consumption108.38 Watts (under load w/o HDD), 523.91 Watts (under load with SAS HDD)
Operating Temperature/ Humidity5°~40°C (-40°~60°C non operational) / Maximum 95%
VibrationRandom, 0.21 grms, 5-500Hz, X, Y, Z axis
Dimensions (H x W x D)13.1x 44.65x 56.1 cm (5.2 x 17.6 x 22.1in)
SafetyCE, FCC ClassA, VCCI, cUL, TUV, CB, BSMI, C-Tick, MIC

Click here to view the manufacturer's item description/brochure

Alternate MPNs: E610f

Weight: 86 lb

Warranty: 1 Year DiscTech
