Promise Technology VTrak H1142VC/A Fiber Channel Subsystem Storage Array with Hard Drives


DiscTech Item #: PRO-H1142VC-A-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 32TB

Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel - Internal - Arbitrated Loop ASA II

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 4Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 16

U Height: 3U

Wattage/VA: 500W

Voltage: 110-240V Multi

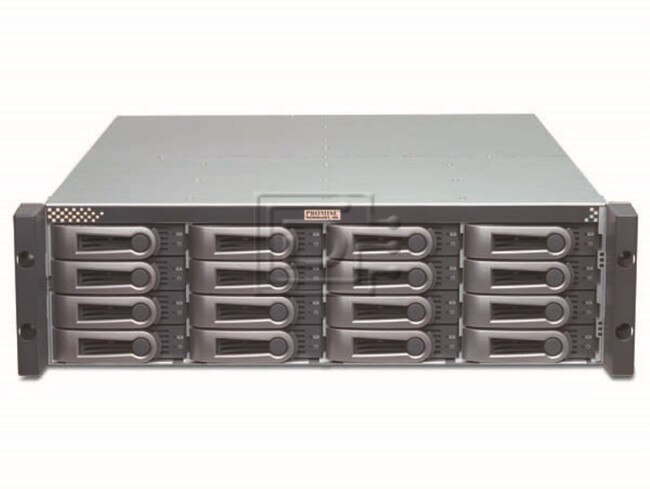

Promise Technology VTrak E610F Series H1142VC/A 3U 32TB Fibre / Fiber Channel SAN / NAS RAID Subsystem Storage Array w/ HDDs - Brand New

Promise Technology VTrak E610F Series H1142VC/A 3U 32TB (16 x 2TB) Fiber/Fibre Channel Dual-Controller SAN / NAS RAID Subsystem Storage Array with Hard Disk Drives - Brand New

Affordable Enterprise – Class Storage
The PROMISE VTrak E-Class RAID subsystem is a High Availability (HA) RAID solution developed to meet the needs of mission critical enterprise and power today’s demanding video workflows. At the heart of the PROMISE VTrak E-Class RAID subsystem is a mature RAID engine developed over the course of two decades and four generations of code that delivers cutting-edge performance and data integrity features rivaling any competitor.

Video Performance
VTrak E-Class truly shines in video environments by delivering consistent low latency performance without dropping frames. Used with Xsan in film and video postproduction, VTrak E-Class can help increase user productivity by providing scalable performance and massive capacity to support today’s demanding video workflows.

Data Center Performance
In a data center, where a single VTrak E-Class may serve multiple host computers simultaneously, it can deliver up to 1400MB/sec of proven read performance and 600MB/sec of write performance. Combined with Xsan, the solution can share multiple VTrak storage volumes over a high-speed Fibre Channel network providing for scalable performance as storage is added.

The uncontrolled growth of data creation requires massive capacity. With the PROMISE Vtrak J-Class expansion chassis, VTrak E-Class can be expanded to support up to 80 total drives for a total of 160TB of raw capacity using the latest 2TB SATA hard disk drives.

Easy to Install and Manage
VTrak E-Class features Bonjour discovery and easy configuration through an embedded browser based management interface, WebPAM PROe, eliminating the need to install additional software. Simply open Safari, locate the unit you would like to manage, and in just a few minutes and less the ten clicks later, VTrak will up and running. The VTrak’s rich feature set also gives advanced users powerful tools to rapidly deploy multiple units tuned for applications like Xsan and Final Cut Studio.

World Class Support
Promise and Apple support organizations work together to solve problems. A shared support database allows support tickets to be escalated across organizations. Mutual service level agreements between Apple and Promise allow customers to install VTrak E-Class units with the confidence that any issues they encounter will be resolved quickly and easily.

VTrak E-Class Advantages

  • Best in class price performance
  • High availability design
  • SAS/SATA drive support
  • Scalability up to 80-bays totaling 160TB
  • Qualified Solution for Mac OS, Xsan and Final Cut Pro

  • Compatibility:

    This product supports multiple hosts.

System and Controller Features
ControllersDual Active/Active, RAID Controller with Failover/Failback

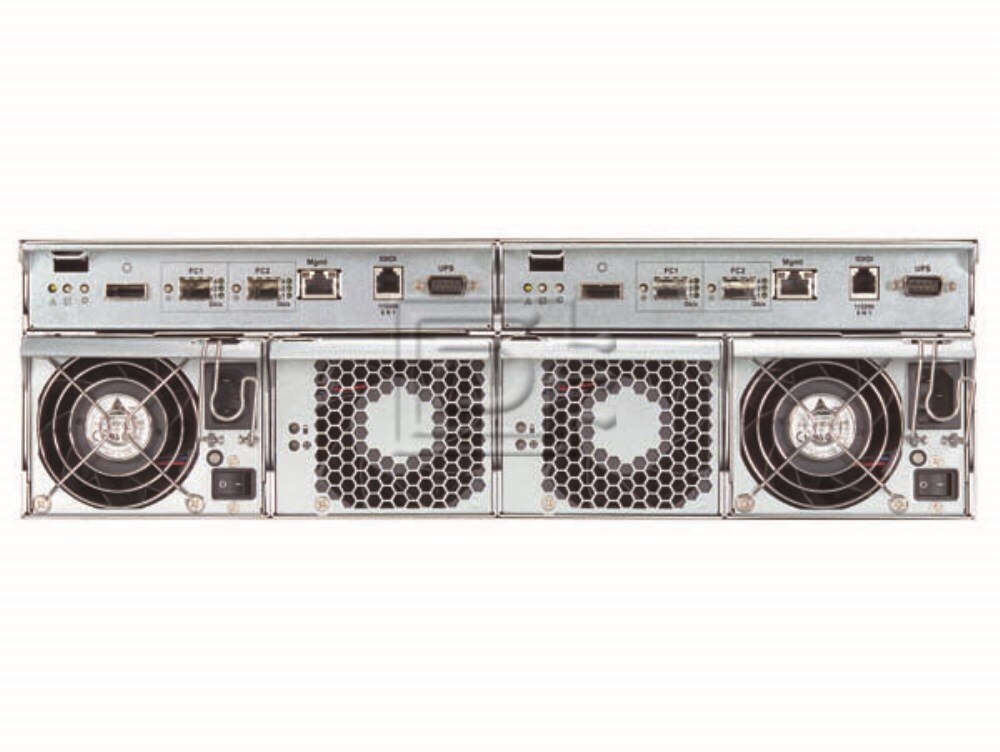

External I/O Ports (per controller)Dual 4Gb Fibre Channel ports; One external 3Gb/s 4x wide SAS port for expansion
Data Cache2GB predictive data cache per controller with automatic write cache de-staging and 72-hour battery backup
Command Queue Depth1024 commands per VTrak system
Operational Features
RAID Level
  • 0, 1, 1E, 5, 6, 10, 50, 60
  • Supported RAID stripe size: 64K, 168K, 256K, 512K and 1MB
  • Background task priority tuning: adjustment of minimum I/O reserved for server use during all background tasks
  • Hot sparesMultiple global or dedicated hot-spare drivers with revert options
    Max LUNs per subsystem256 in any combination of RAID levels and array types
    Max LUNs per array
  • 32 logical drives (LUNs)
  • Supports LUN Carving by allowing an array to be divided into multiple logical drives
  • RAID level, stripe size
  • RAID level, stripe size sector size and cache policy can be configured per LUN
  • Supports out of order logical drive deletion and re-creation
  • Max LUN per Target IDUp to 256, depending on host side driver and operating system
    LUN Masking and MappingSupports multiple hosts
    Operating SystemsMac OS X, Mac OS x-Server, Windows 2003/2008, Fedora Core 9, Redhat Linuz, Suse Linux, VMware ESX Server v3.5/4.0
    Mechanical Specifications
    Voltage100-240 Vac Auto-Ranging
    Current (Maximum)8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords)
    Power SupplyDual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
    Power Consumption108 Watts (w/o HDD), 524 Watts (under load with SAS HDD)
    Operating Temperature/Humidity5°~40°C (-40°~60°C non-operational) / Maximum 95%
    VibrationRandom, 0.21 grms, 5-500HZ, X, Y, Z axis
    Dimensions (H x W x D)13.1 x 44.65 x 56.1 cm (5.2 x 17.6 x 22.1 in)
    WeightNet weight: 38.5 kg (84.9 lbs) with 16 SATA drives
    SafetyCE, FCC ClassA, VCCI, cUL, TUV, CB, BSMI, C-Tick, MIC

    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: H1142VC/A

    Weight: 102 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
