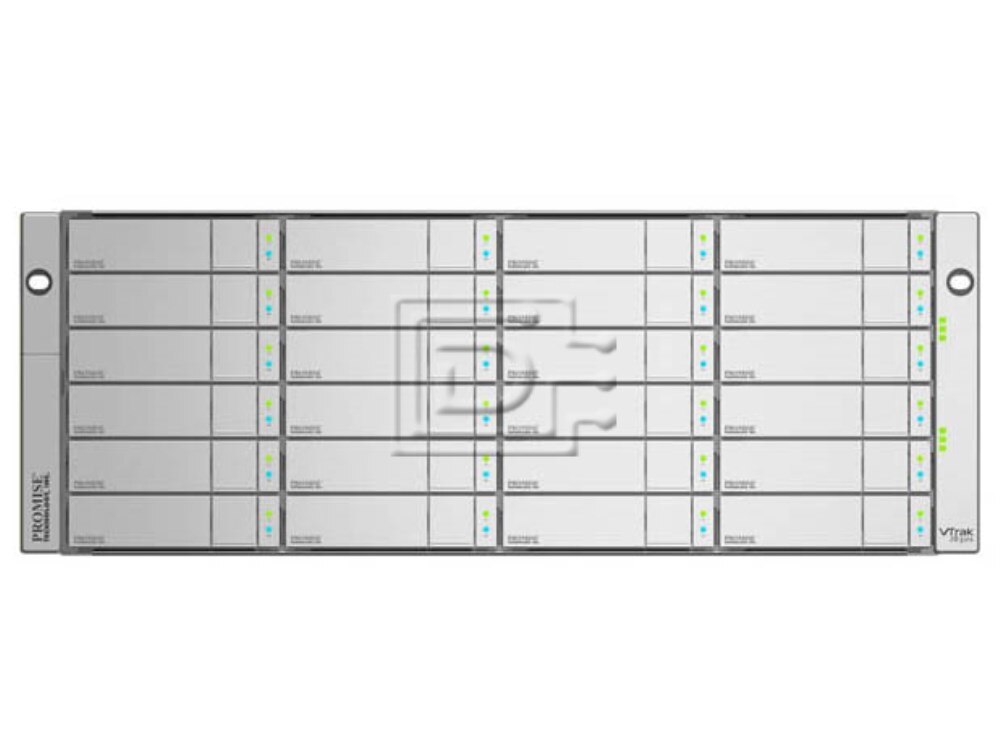

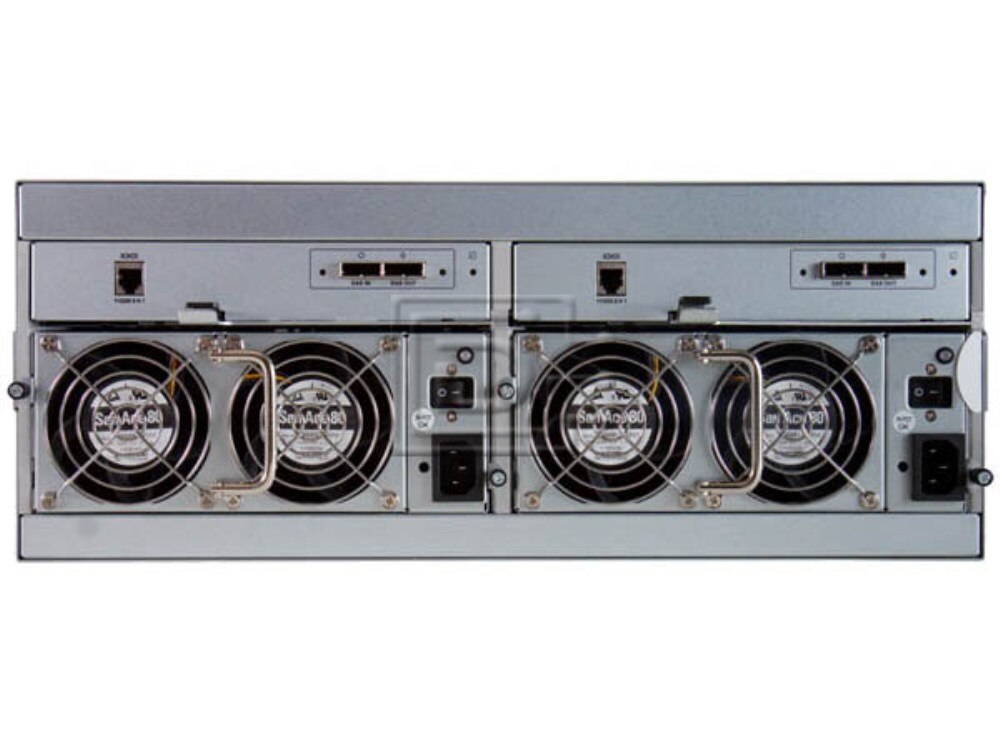

Promise Technology VTrak J830SDQS3 72TB SAS Expansion Chassis

PROMISE Part #/MPN: J830SDQS3

DiscTech Item #: PRO-J830SDQS3-BN-3Y


$25,999.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$25,999.00

Enterprise Grade

Capacity: 72TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 24

U Height: 4U

Wattage/VA: 750W

Voltage: 110-240V Multi

Promise Technology VTrak J830SDQS3 J830s Series 4U 72TB SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New

Promise Technology VTrak J830SDQS3 J830s Series 4U 72TB (24x3TB) SAS Dual-Controller DAS Expansion Chassis Storage Array / JBOD w/ HDDs - Brand New

This expansion chassis includes 24 x 3TB 7.2K RPM NL-SAS hard drives.

Features

  • 4U/24 form factor featuring hot-swappable drive bays in SBB 2.0 package
  • Supports 6G and 3G SAS and SATA drives simultaneously
  • Dual active/active SAS JBOD I/O modules
  • Provides up to 90% power efficiency
  • Multi-ported, multi-lane 6G mini SAS (4x) ports provide large bandwidth capabilities
  • Redundant, hot-swappable Field Replaceable Units (FRUs)
  • SES-2 compliant enclosure management
  • Compatible with leading SAS/SATA drives, HBAs and RAID controllers

Compatibility:

This product supports any mix of SAS and SATA drives simultaneously in the same enclosure.

Specifications
Form Factor4U 24-bay
Model # Dual ControllerDual I/O (J830sD)
Drive SupportUp to 24 3.5”/2.5” HDDs or SSDs (Please refer to compatibility list at www.promise.com )
NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
Drives Included24x 3TB 7200 RPM NL-SAS hard drives
External I/O Ports (per controller)Each SBB 2.0 I/O module has two SAS ports using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088), one IN and one OUT for cascading JBODs
I/O Module FeaturesSelf-configuring expander supports full SAS domain topology management
SMP – SAS Management Protocol
In-band access to Expander and PHY information
Statistic counters and performance monitors
SES EM – SES Enclosure Management (ANSI T10 SES 2 Compliant)
SCSI SES command set over virtual SSP device
Management InterfacesLED status indicator support for drives, FRU and enclosure environmentals
In-band SES enclosure management alerts user to out of spec operation: thermal condition, voltage condition or component failures, protecting data and hardware
Full subsystem management CLI through out-of-band RS232 serial port
Enclosure Management ProtocolsSES over in-band SAS
Voltage100-240 Vac Auto-Ranging
Current (Maximum)15A @ 110 VAC; 6A @ 240 VAC
Power Conversion Efficiency>80% @ 110V (>20% load), >80% @ 240V (>20% load)
TemperatureOperational: 5° to 40°C
Non-Operational: -40° to 60°C
HumidityOperational: 10% to 90% (Non-Condensing)
Non-Operational: 5% to 95% (Non-Condensing)
Acoustic Noise Levels55 dB (Typical), 65 dB (Maximum)
ShockOperational: 5G, 11ms duration
Non-Operational: 10G, 11ms duration
VibrationOperational: 0.3G, 5 to 500 Hz
Non-Operational: 1G, 5 to 500 Hz

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 111 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
