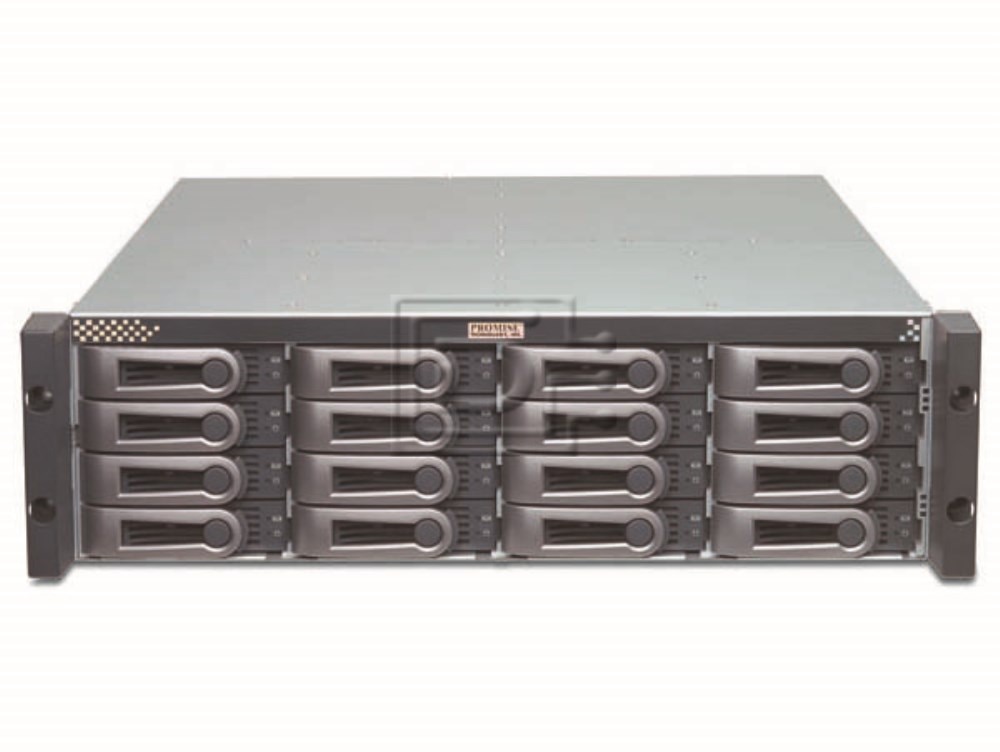

Promise Technology VTrak TV272VC/A RAID Subsystem Storage Array


DiscTech Item #: PRO-TV272VC-A-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 8TB

Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel - Internal - Arbitrated Loop ASA II

Bays/Ports/Slots: 16

U Height: 3U

Voltage: 110-240V Multi

Promise Technology VTrak TV272VC/A E610f 3U 8TB Fibre/Fiber Channel SAN / NAS RAID Subsystem Storage Array w/ HDDs - Brand New

Promise Technology VTrak TV272VC/A E610f 3U 8TB Fibre/Fiber Channel Dual-Controller SAN / NAS RAID Subsystem Storage Array with HDDs - Brand New

This array includes 8x 1TB SATA hard drives

Affordable Enterprise – Class Storage
The Promise VTrak E-Class RAID subsystem is a High Availability (HA) RAID solution developed to meet the needs of mission critical enterprise and creative applications. At the heart of the Promise VTrak E-Class RAID subsystem is a mature RAID engine. The hardened RAID code is the central technology that controls how user data is stored on a group of hard drives. With more than 13 years and four generations of code, the Promise RAID engine delivers cutting-edge performance and data integrity features that rival all competitors in its class.

Data Center Performance
In a data center, where a single VTrak may serve multiple host computers simultaneously, the VTrak E-Class RAID delivers up to 1400MB/sec of proven read performance and 600MB/sec of write performance. When used with Xsan, the combined solution competes favorably against all the competition. Scaling of volumes across several VTrak units improves performance while boosting performance simultaneously over the SAN.

Video Performance
VTrak E-Class truly shines in video environments by delivering consistent low latency performance without dropped frames. When used with Xsan in film and video postproduction, users can scale performance and capacity to support large-scale, uncompressed HD workflows.

With large VTrak deployments worldwide, enterprise users have come to rely on Promise Technology to protect their valuable data. The VTrak E-Class powers many of today’s hottest web based storage services. Application Service Providers using Promise VTrak E-Class offer their customer’s data protection guarantees because they can trust VTrak E-Class reliability.

Easy to install and manage
The VTrak E-Class RAID subsystem features Bonjour discovery and configuration through an embedded browserbased management interface, WebPAM PROe, eliminating the need to install additional software. Simply open your browser and click on the VTrak unit you would like to manage. An easy to use guided setup allows novice users to create and provision the storage in just a few minutes. The VTrak's rich feature set gives advance users powerful tools to rapidly deploy multiple units tuned for applications like Xsan 2 and Final Cut Studio 2.

Cross Platform Availability
The VTrak E-Class has been rigorously tested to ensure the best performance and availability for Mac, Windows and Linux platforms. While SAN storage is built on industry standards, minor variations of the specification can adversely affect interoperability from platform to platform. Promise testing assures consistent performance across the SAN.

World Class Support
Promise and Apple support organizations work together to solve problems. A shared support database allows support tickets to be escalated across organizations. Mutual service level agreements between Apple and Promise allow customers to install VTrak E-Class units with the confidence that any issues they encounter will be resolved quickly and easily

VTrak E-Class Advantages

  • Best in class price/performance
  • High availability design
  • SAS/SATA drive support
  • Scalability up to 80-bays
System and Controller Features
ControllersDual Active/Active, RAID Controllers with Failover/Failback

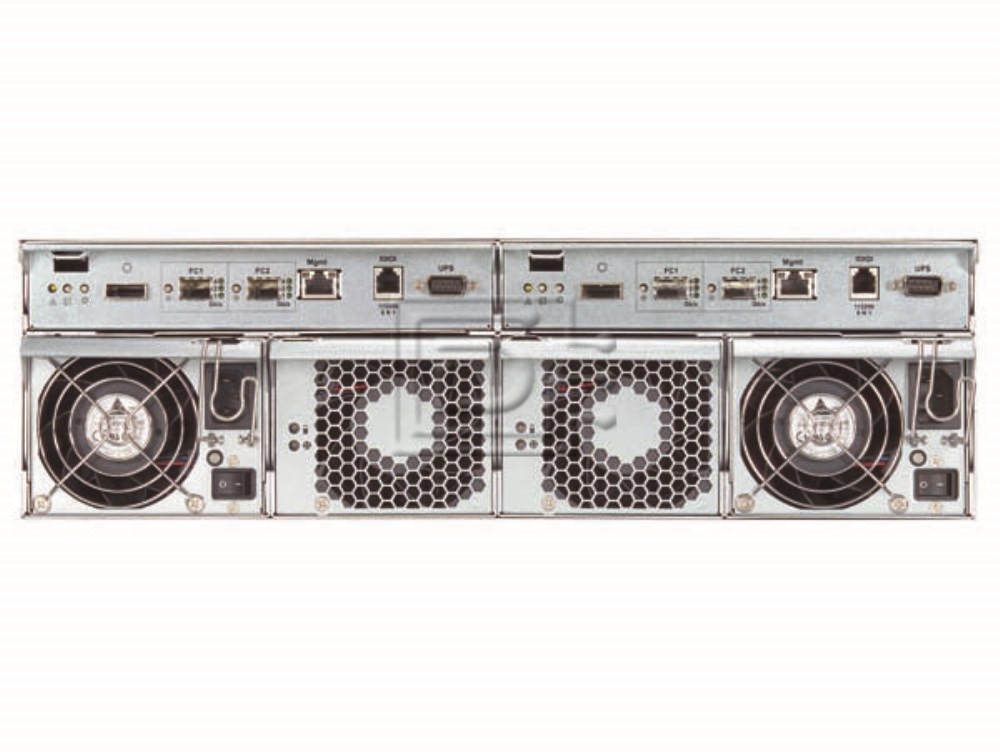

External I/O Ports (per controller)Dual 4Gb Fibre Channel ports; One external 3Gb/s 4x wide SAS port for expansion
Data Cache2 GB predictive data cache per controller with automatic write cache de-staging and 72-hour battery backup
Command Queue Depth1024 commands per VTrak system
Operational Features
RAID Level
  • 0, 1, 1E, 5, 6, 10, 50, 60
  • Supported RAID stripe size: 64K, 168K, 256K, 512K abd 1MB
  • Background task priority tuning: adjustment of minimum I/O reserved for server use during all background tasks
  • Hot sparesMultiple global or dedicated hot-spare drives with revert options
    Max LUNs per subsystem26 in any combination of RAID levels and array types
    Max LUNs per array
  • 32 logical drives (LUNs)
  • Supports LUN Carving by allowing an array to be divided into multiple logical drives
  • RAID level, strip size sector sixe and cache policy can be configured per LUN.
  • Supports out of order logical drive deletion and re-creation
  • Max LUNs per Target IDUp to 256, depending on host side driver and operating system
    LUN Masking and MappingSupports multiple hosts
    Operating SystemsMax OS X, Mac OS x Server, Windows 2003/2008, Fedora Core 9, Redhat Linuz, Suse Linux, VMwares ESX Server v3.5/4.0
    Mechanical Specification
    Voltage100-240 Vac Auto-Ranging
    Current (Maximum)8 A @ 100 Vac; 4 A @ 240 Vac (current rating with two power cords)
    Power SupplyDual 500W, 100-240 Vac auto-ranging, 50-60 Hz, dual hot swap and redundant with PFC, N+1 design
    Power Consumption108 Watts (w/o HDD), 524 Watts (under load with SAS HDD)
    Operating Temperature/Humidity5°~40°C (-40°~60°C non operational) / Maximum 95%
    VibrationRandom, 0.21 grms, 5-500Hz, X, Y, Z axis
    Dimensions (L x W x D)30" x 23.8" x 15.3"
    Weight100 lbs
    SafetySupports multiple hosts

    Click here to view the manufacturer's item description/brochure

    Alternate MPNs: TV272VC/A

    Weight: 100 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
