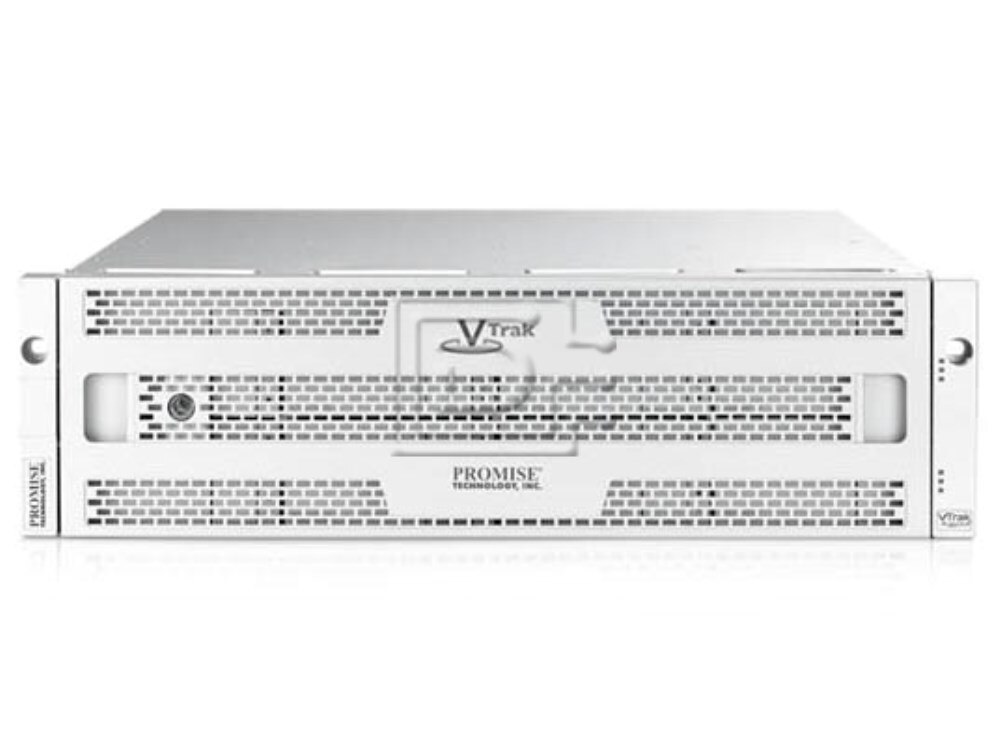

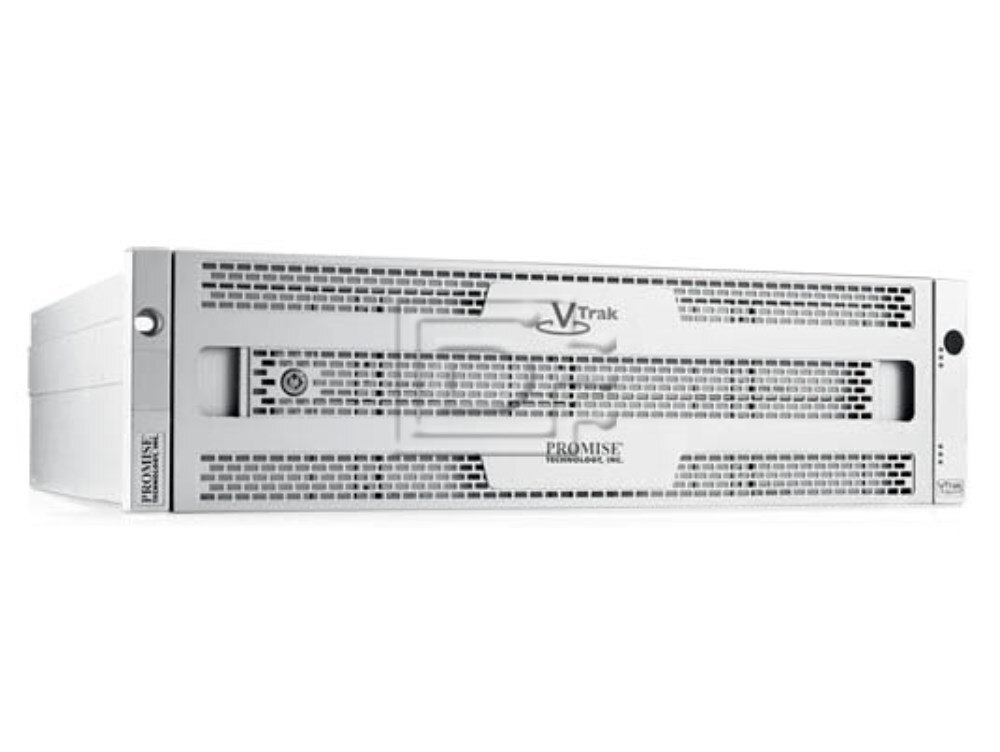

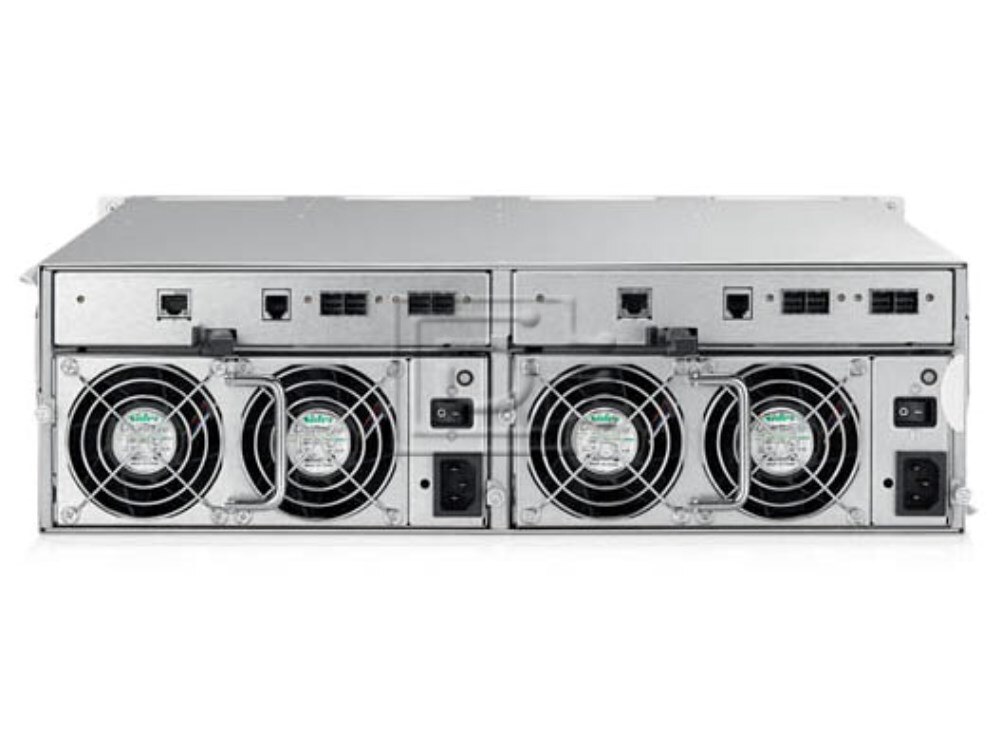

Promise Technology VTrak VTA36HFDM RAID Array


DiscTech Item #: PRO-VTA36HFDM-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 32TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI, Fibre Channel - Internal - Arbitrated Loop ASA II, Ethernet RJ45

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 8Gbps

On-Board Cache: 8GB

Bays/Ports/Slots: 16

U Height: 3U

Voltage: 110-240V Multi

Promise Technology VTrak VTA36HFDM A3600fDM Series 3U 32TB Fibre Channel SAN / NAS RAID Subsystem Storage Array w/ HDDs - Brand New

Promise Technology VTrak VTA36HFDM A3600fDM Series 3U 32TB (16 x 2TB) Fibre Channel Dual Controller SAN / NAS RAID Subsystem Storage Array with Hard Disk Drives - Brand New

This array includes 16x 2TB 7.2K 3.5" 6Gbps SAS hard drives.


  • Entry level A-Class solution that does not sacrifice functionality
  • 3U/ 16 drives in one chassis
  • 8G FC interface
  • Data path over FC
  • Single name space with file system spanning across multiple storage units
  • High Availability
    • Active-Standby SAN FS metadata server
    • Active-Active RAID controller
  • Metadata Journaling
    • POSIX compliance
    • Client support for Windows, Mac and Linux
    • Multiple clients access shared files, best for sharing and collaboration
    • Optional external NAS extension gateway cluster provides legacy NFS and CIFS protocol access to files
    • Online defragmentation
    • Online expansion of data volume
  • Each File system volume can be individually tuned for the usage of the volume
    • Soft and hard quotas and user per missions
    • Local ACL for small user groups (20 users)
    • Integration with AD and LDAP for ACL
    • Client node ACL
    • Multipath support on clients
    • Provides intelligent fault detection and notification tool on clients

Model NumberVTA36HFDM
Capacity32TB to 7PB raw
Non-disruptive expansion using:
  • VTrak x30 Fibre Channel RAID Storage System
  • VTrak x30 Expansion Chassis
  • VTrakFS File System
  • VTrakFS - Integrated clustered file system
  • Supports up to 8 simultaneous file systems per system
  • Serve up to 1 billion files
  • Directory Support LDAP, Active Directory, Open Directory
  • Advanced on-line defragmentation tool (Advanced Anti-Fragmentation Algorithm)
  • Supports ACLs (Access Control List) and User Quota
  • AvailabilityRedundant Controllers Hot-Swappable Power Supply Units Hot-Swappable Controllers Non-Disruptive Firmware/Software Updates Hot-Swappable Disk Drive
    InterfaceQuad 8G Fibre Channel ports per controller (total of 8 ports for high availability system)
    RAID SupportRAID 0, 1, 5, 6, 10, 50, 60
    Power EciencyFour levels of advanced power management disk drive (MAID) support Efficient 80Plus Certified power supplies
    Management Tools/InterfaceSingle VTrak A-Class SAN management software Embedded management using VTrak A-Class SAN management software (via Ethernet) Advanced Command Line Interface (Serial Port or Ethernet via telnet and SSH) Third Party Management support via SNMP, CIM
    Client Licenses4 Universal Only included Supports hundreds of clients

    Click here to view the manufacturer's item description/brochure

    Weight: 82 lb

    Warranty: 3 Year Manufacturer

    Brand New

    Condition Levels Explained

    The product is brand new.

    3 Year Manufacturer Warranty

    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.
