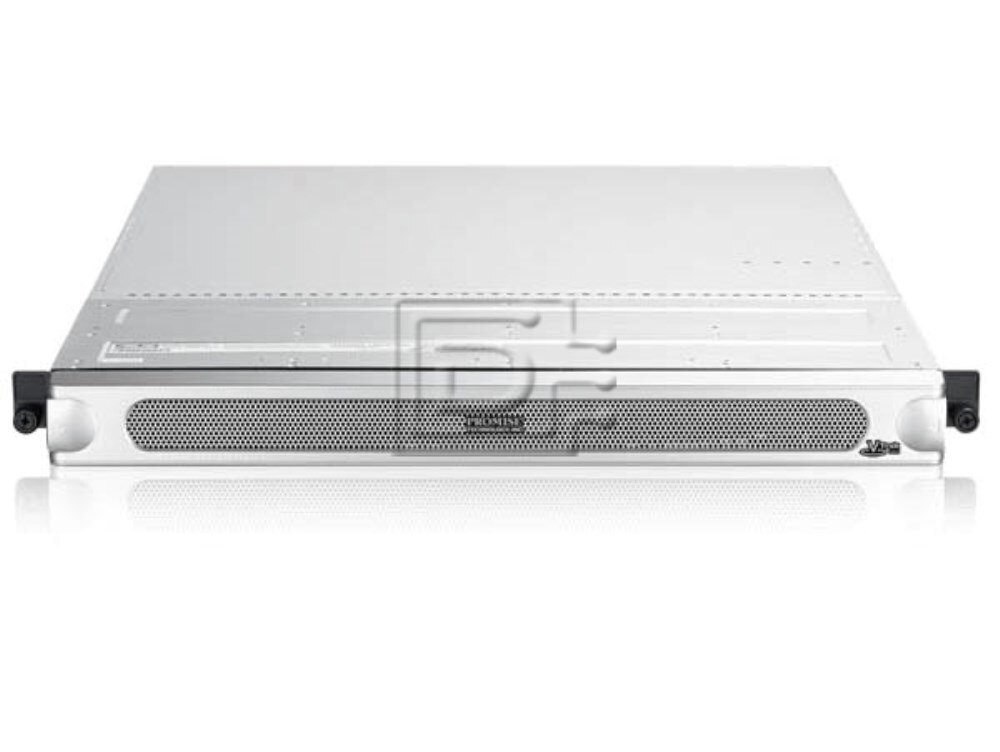

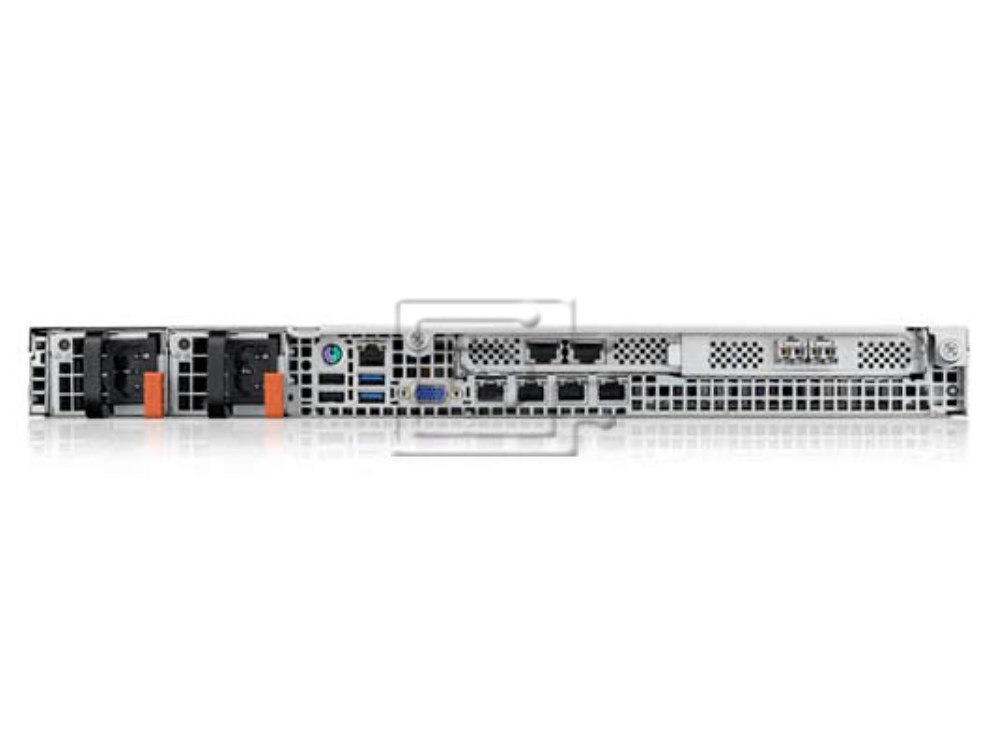

Promise Technology VTrak VTG1100US 128GB NAS Gateway

PROMISE Part #/MPN: VTG1100US

DiscTech Item #: PRO-VTG1100US-BN-3Y


$7,500.00
  • Low Stock:Call for ETA
$7,500.00

Capacity: 128GB

Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II, Fiber Optic - LC/PC, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45, VGA, SFP

Electrical Interface: FC-AL - 8Gbps

On-Board Cache: 32GB

Bays/Ports/Slots: 8

U Height: 1U

Wattage/VA: 450W

Voltage: 110-240V Multi

Promise Technology VTrak VTG1100US 128GB Fibre Channel 10G Base-T NAS G1100 Gateway w/ SSDs - Brand New

Promise Technology VTrak VTG1100PUS 128GB Fibre Channel 10G Base-T NAS G1100 Gateway with Solid State Disk Drives - Brand New

NAS Gateway server equipped with 4x 8GB memory modules and 4x 32GB SSD drives. Also includes 2-Ports 8G Fibre Channel and 2-ports 10G Base-T Ethernet.

Benefits

Scale out High Performance and High Capacity
The VTrak A3800 shared SAN appliance is ideal for multi-user collaboration to ingest, edit, stream, and process rich media. The VTrakFS™ file system software integrated with metadata controllers and VTrak primary storage in a single box enables higher performance and workload productivity and for easier management. It is an “All in one” RAID storage subsystem, with integrated metadata appliance and embedded filesystem for Big Data with NAS Gateway.

NAS Gateway
The NAS Gateway enables hundreds of clients in the LAN network to access the highly scalable fibre channel SAN appliance via 10Gb Ethernet. While the NAS Gateway contains a file sharing protocol and file system management, the benefit is that the backend VTrak A3800 SAN can scale to petabytes while still appearing as a single NAS folder interface. This eliminates the need to reconfigure clients, as done in traditional NAS environments when additional storage is required.

Fast and Simple
VTrak A-Class is optimized for high performance, high bandwidth rich media applications requiring large block sequential IOPs. Plus, it's much less complicated that competing solutions because it's an “all-in-one” metadata appliance, RAID storage subsystem, and file system (VTrakFS™).

Scalable, Reliable and Cost-Efficient
With A-Class you can “pay as you grow” from 32TB to over 7PB for long-term storage investment protection. Additionally, VTrak x30 is the only Apple-qualified enterprise SAN subsystem, with high-availability dual controllers, hot-swappable modular disk array, and included 3-Year warranty. The A-Class can save 30-40% rack space and energy costs compared to nonintegrated multi-vendor solutions.

Optimized for Video Centric Environments
PROMISE VTrakFS™ file system is optimized for leveraging 8Gb FC interface for large file data ingesting, streaming, or processing between a SAN and its clients – unlike NAS file systems. Data is directly transferred between the SAN appliance and clients over the SAN FC network. This means higher bandwidth performance and lower latency data transfers, as required by Media & Entertainment, HPC applications, and other video-centric environments.

Store Massive Amounts of Data
Store massive amount of data required by media centric and HPC environments. Scale across multiple RAID storage subsystems thus scaling in capacity and performance.

  • Supports 1024 RAID Logical Drives to make up the volumes (s).
  • JBODs can be added dynamically to increase the storage space.
  • RAOD heads can be added as Storage Nodes to dynamically increase the storage space as well as increase the number of FC counts, thereby scaling in performance.
  • All this can be done online without interrupting the clients.

Supersized File System for Big Data
VTrak A-Class virtualizes storage to create a single name space, shared storage volume.

  • Each VTrakFS consists of a metadata LUN (MDL) and data LUNs (DL)
  • MDL contains information about file location, size, access times, etc.
  • VTrak A Class head unit manages directing each client the correct file info over 1Gb Ethernet, but each Client has full speed access to actual data via 8Gb Fibre Channel

Features

  • For access to files on the VTrak A-Class via ethernet, the NAS Gateway G1100 is a 1U file server appliance that acts as an access point for file-based storage via 1/10GbE front end, with 8Gb FC backend connectivity to VTrak A-Class SAN.
  • The VTrak shared SAN appliance and NAS Gateway creates a unified storage solution, with redundancy and single VTrakFS management software.

Specification
Part NumberVTG1100US
ModelG1100 NAS Gateway
AvailabilityNAS Gateway cluster with 2 active nodes per cluster to a max of 2 cluster for high availability and IO load balancing
Interface
  • Two ports x 10GbE, four ports x 1GbE Ethernet ports
  • Two ports x 8Gb FC backend ports
  • Management Tools/InterfaceConfigured, managed, and monitored with VTrak A-Class SAN management software
    Client Licenses1/10 Ethernet Cluster NAD Gateway Appliance supporting NFS and CIFS with unlimited client support
    Support
  • 24 x 7 web and phone support
  • Support websit - drivers, firmware, knowledge base, and downloadable compatibility reports
  • Online product registration and seamless license activation
  • Network ProtocolsNFS, SMB/CIFS
    OS Support
  • OS X 10.7 or higher
  • Window 7, 8, 2008, 2012
  • Linux OS with Kernel 2.6.14 or higher

  • Click here to view the manufacturer's item description/brochure

    Weight: 46 lb

    Warranty: 3 Year Manufacturer

    Brand New

    3 Year Manufacturer Warranty
