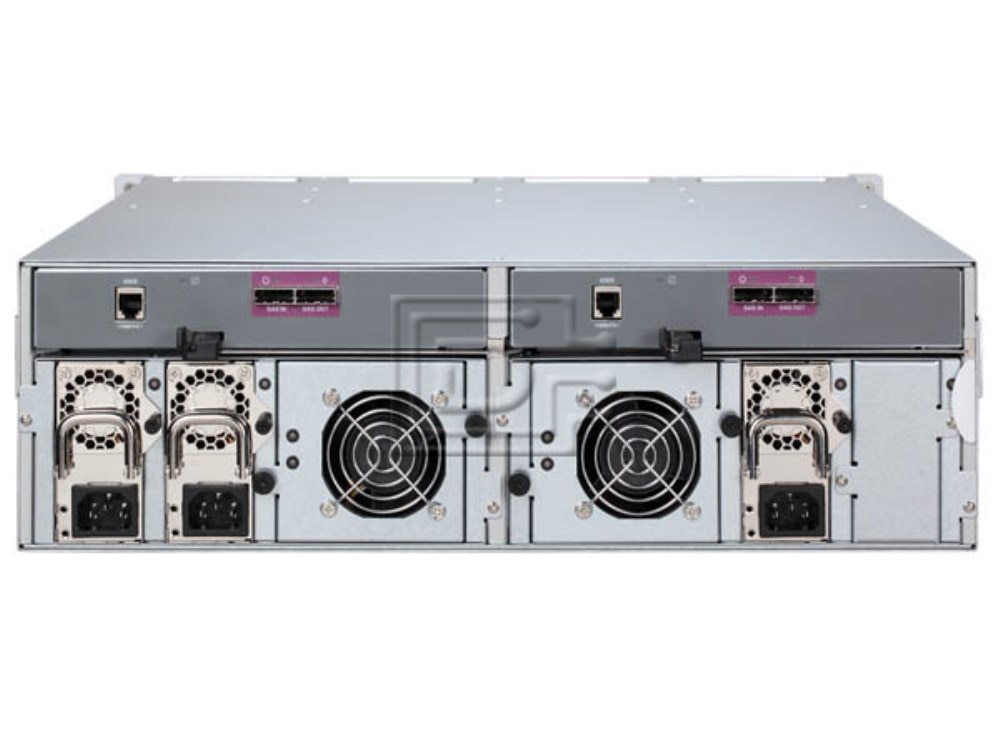

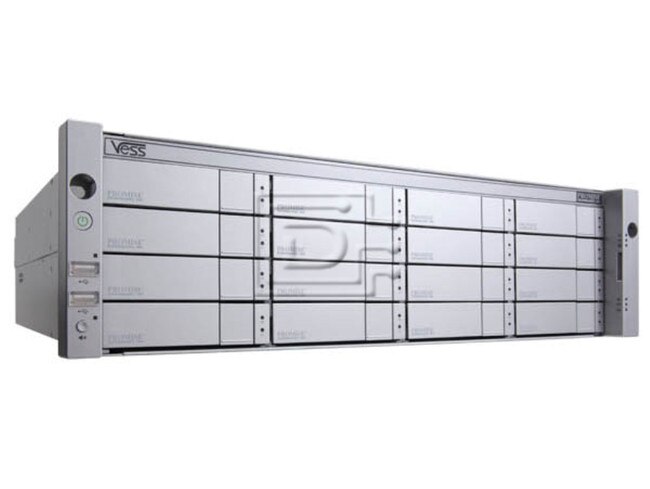

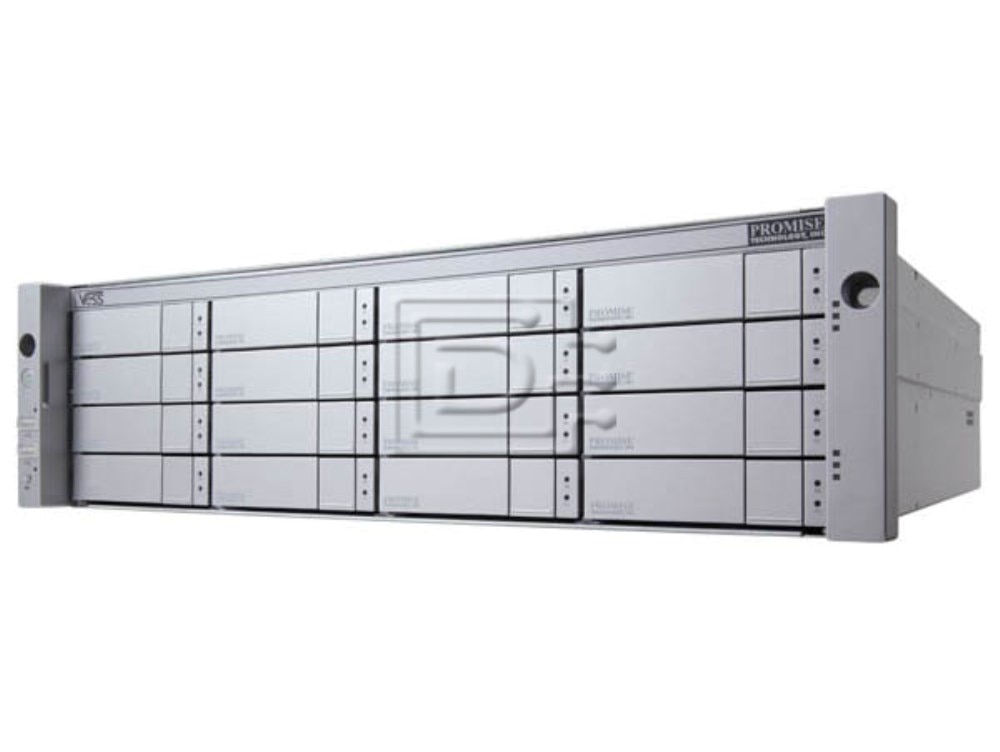

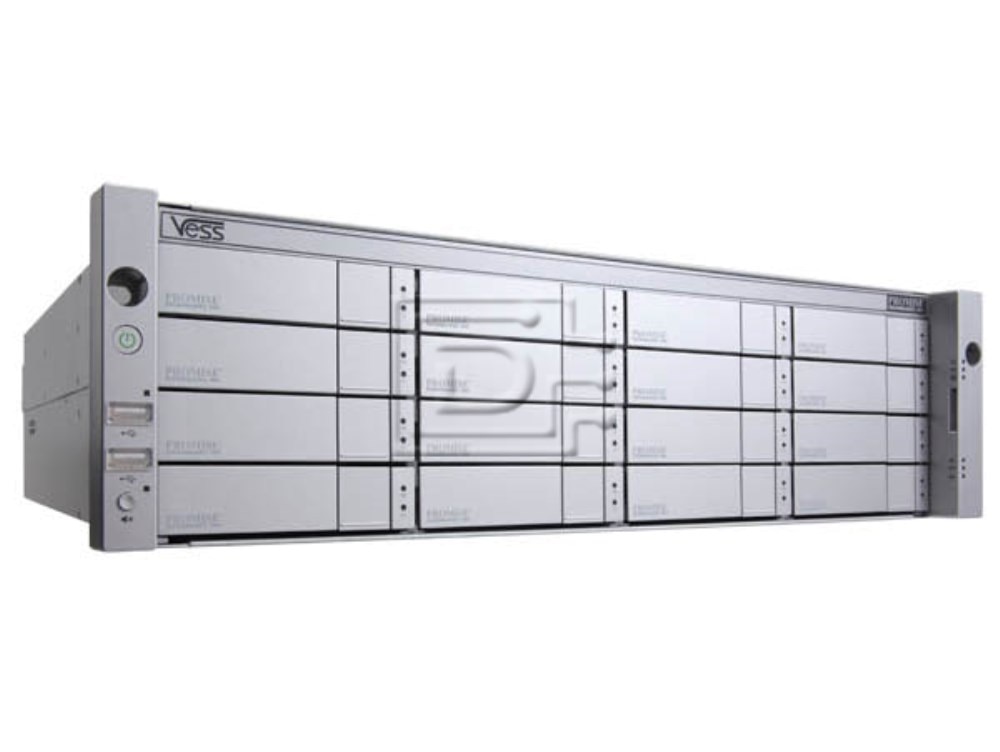

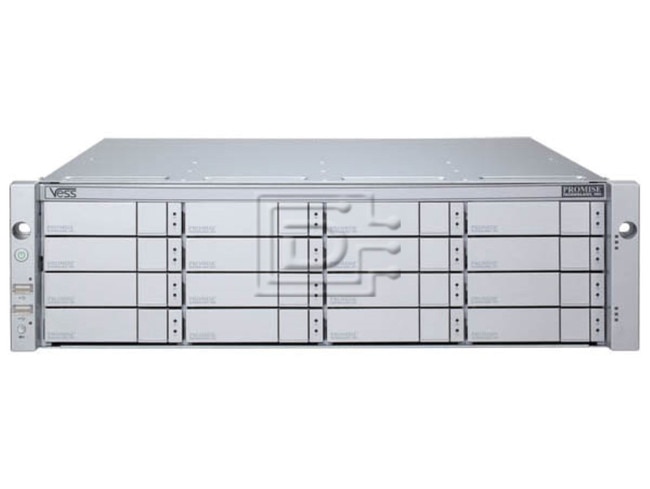

Promise Technology Vess J2600S VJ2600SZDAGE 32TB JBOD Expansion Chassis


DiscTech Item #: PRO-VJ2600SZDAGE-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Capacity: 32TB

Interface Types: SAS Serial Attached SCSI, SATA, SFF-8088

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

Bays/Ports/Slots: 16

U Height: 3U

Wattage/VA: 500W

Promise Technology Vess J2600S VJ2600SZDAGE 3U 32TB Dual Controller SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New

Promise Technology Vess J2600S VJ2600SZDAGE 3U 32TB / 32,000GB Dual Controller SAS JBOD DAS Expansion Chassis Storage Array w/ HDDs - Brand New

This expansion chassis includes 16x 2TB NL SAS hard drives.

Cost-effective Storage Expansion Platform
As the demands for capacity expansion explode for IT applications and video surveillance, it is imperative that IT administrators find a cost-effective way to meet performance and expansion goals. The Vess J2000 series is a robust storage expansion platform that serves as a building block to provide high-availability and flexibility in a cost effective package that is simple to administer and meets the demands of your application. The 3U-16 bay Vess models are fully expandable to meet your needs today and in the future. Up to six additional expansion chassis may be added to each Vess R2000 RAID subsystem, providing expansion for up to 112 drives.

Redundant Power Supply
The Vess J2000 series are equipped with redundant power supplies. The advantage of N+1 power supplies is that should one fail, the other continues to power the subsystem until the faulty one can be replaced. Additionally, the power supplies are hot-swappable, which enables you to leave the subsystem running when you replace the one that failed.

User Friendly Design
Simplicity and ease of use are absolutely crucial for SMBs. The Vess J2000’s user friendly design features the power button on the front panel. The design brings great convenience to the user as they don’t have to go behind the system and unplug the power cord or access the management GUI console to turn off the machine, but can simply turn the machine on and off through the front panel.

Reduce Power and Cooling Costs
The Vess J2000 series utilize environmentally friendly production methods and materials as well as a high-efficiency design that saves energy. Sporting 80 Plus Bronze Certified power supplies delivering up to 85% power efficiency, the Vess J2000 series improves total cost of ownership by conserving power, reducing heat output and improving cooling costs.


  • 3U/16-bay Dual IO Modules JBOD Expansion Chassis with 16x2TB NL SAS HDDs
  • Dual 6Gbps SAS-wide port over SFF-8088
  • Supports 6Gbps & 3Gbps SAS & SATA drives simultaneously
  • Expand Vess R2000 RAID subsystems up to 112 disk drives with Vess J2000
  • Three redundant hot-swappable PSU
  • Two hot-swappable redundant fans

Product IDVJ2600SZDAGE
Product CategoryJBOD Storage Expansion Enclosure
Form Factor3U16, 19" Rackmount
ControllerDual Controller
Drive SupportSAS/SATA 6Gb/s
Cache Memory per ControllerN/A
Max # of HDDs SupportedN/A
Host Connect InterfaceDual, IN/OUT 6G SAS-wide (x4) port over SFF-8088 (per controller)
RAID LevelsHost Dependent
Power Supply500W (Three redundant 250W N+1 design)
Dimensions29.7L x 22.6w x 11.2h
Weight86.4 lb

Click here to view the manufacturer's item description/brochure

Weight: 86.4 lb

Warranty: 3 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

3 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
