Promise Technology E630FSNX Fiber Channel Subsystem Storage Array


DiscTech Item #: PRO-E630FSNX-BN-3Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Interface Types: SAS Serial Attached SCSI, SATA, Fibre Channel - Internal - Arbitrated Loop ASA II, Ethernet RJ45, PCIe, SFF-8088

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 8Gbps

On-Board Cache: 4GB

Bays/Ports/Slots: 16

U Height: 3U

Wattage/VA: 580W

Voltage: 110-240V Multi

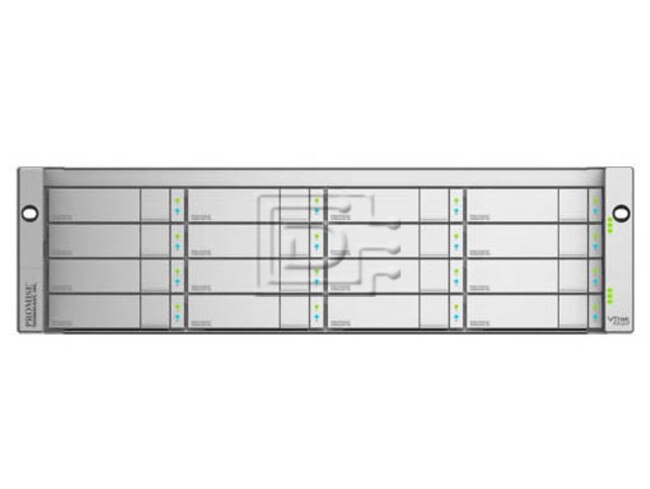

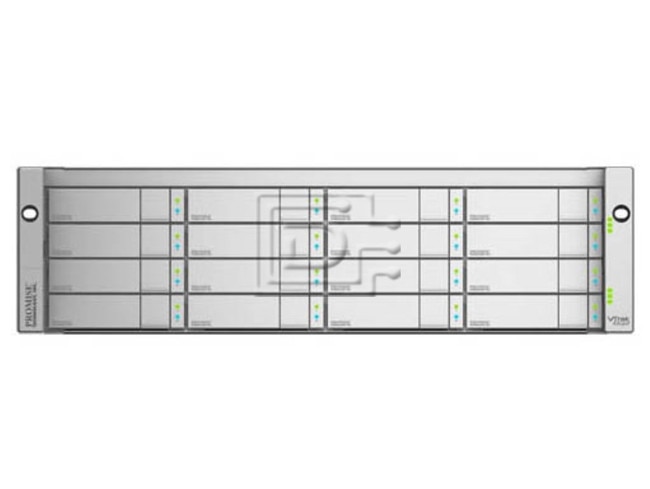

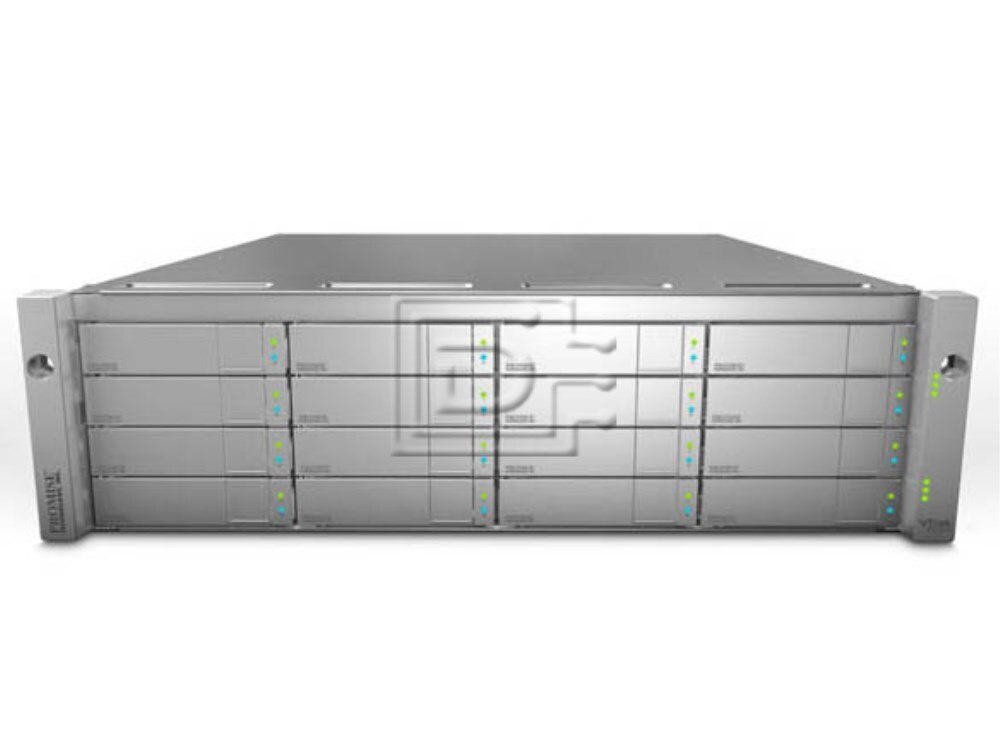

Promise Technology VTrak E630FSNX E630F Series 3U Fiber Channel SAN / NAS RAID Subsystem Storage Array - Brand New

Promise Technology VTrak E630FSNX E630F Series 3U Fiber Channel Single-Controller SAN / NAS RAID Subsystem Storage Array - Brand New


  • RAID storage subsystem for big data, rich media, surveillance, and virtualization
  • Quad 8Gbps FC ports
  • Fibre Channel performance delivers up to four times more performance than previous generation, delivering up to 5.5 GB/s for reads and 2.4 GB/s for writes in RAID5
  • High-availability design
  • Out-of-the-box support with zero software installation required
  • Scale up to 9 expansion chassis for a total of 240 drives
  • PerfectFlash enables firmware updates without requiring downtime
  • Administer access control through Open Directory & LDAP
  • Energy efficient power supplies offering up to 85% power efficiency
  • Qualified solution for VTrakFS™ , Xsan, StorNext and Final Cut Pro
  • Certified for Windows, Linux, OS X

  • Compatibility:

    This product supports any mix of SAS and SATA drives simultaneously in the same enclosure.

Form Factor3U 16-bay
ControllerSingle controller (E630fS)
Drives IncludedNo drives included
Drive SupportUp to 16 3.5”/2.5” HDDs or SSDs (Please refer to compatibility list at
NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
External I/O Ports (per controller)Four 8Gbps Fibre Channel ports, backwards compatible with 4Gbps and 2 Gbps Fibre Channel
One external SAS port using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088) to connect up to 9 cascading expansion JBODs
Data Cache4GB data cache per controller protected with hot-swappable battery backup unit (BBU)
RAID Levels0, 1, 1E, 5, 6, 10, 50, 60
RAID Stripe Size Support64K, 128K, 256K, 512K and 1MB
Hot sparesGlobal or dedicated with revertible option
Max LUNs per subsystem1024
Max LUNs per array32
Supported Operating SystemsMac OS X 10.7, 10.8 & 10.9, Microsoft Windows Server 2008 R2, Windows Server 2008 R2 SP1, Windows 7, Windows 7 SP1, Windows 8, Windows 8 SP 1, Windows Server 2012, Windows Server 2012 R2, HyperV Server 2012, RedHat Enterprise Linux 6.3 & 6.4, SuSE Linux Enterprise Server 11 SP2 & SP3, VMware ESX Server 5.5
Voltage100-240 Vac Auto-Ranging
Current (Maximum)10A @ 100 VAC; 5A @ 200 VAC
Power Conversion Efficiency>80% @ 110V (>20% load), >80% @ 240V (>20% load)
TemperatureOperational: 5° to 35°C, Non-Operational: -40° to 60°C

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 67 lb
