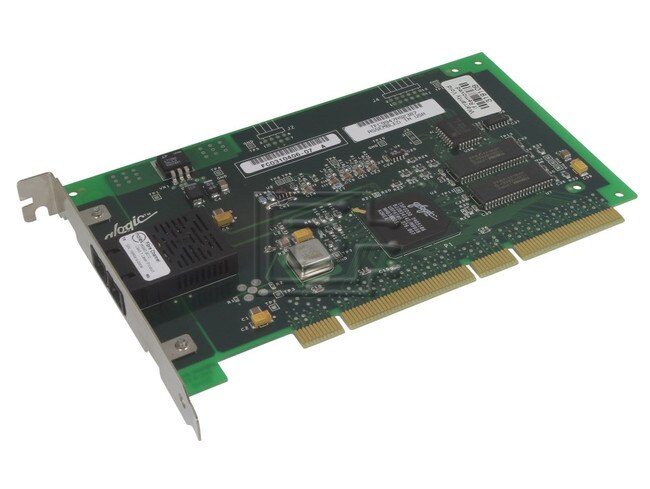

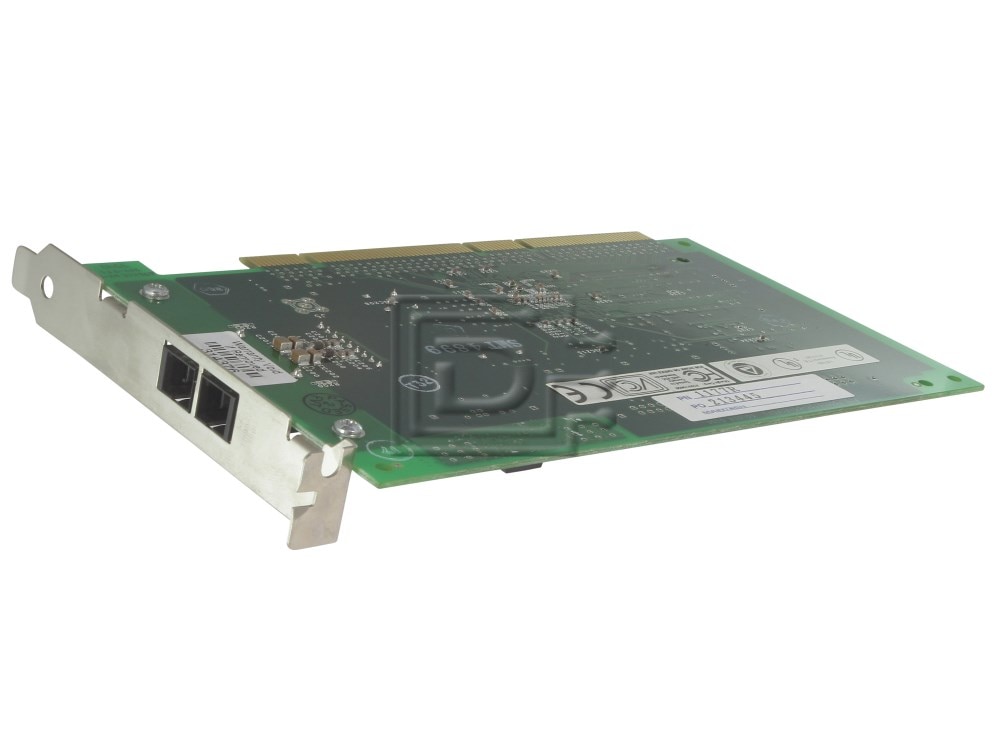

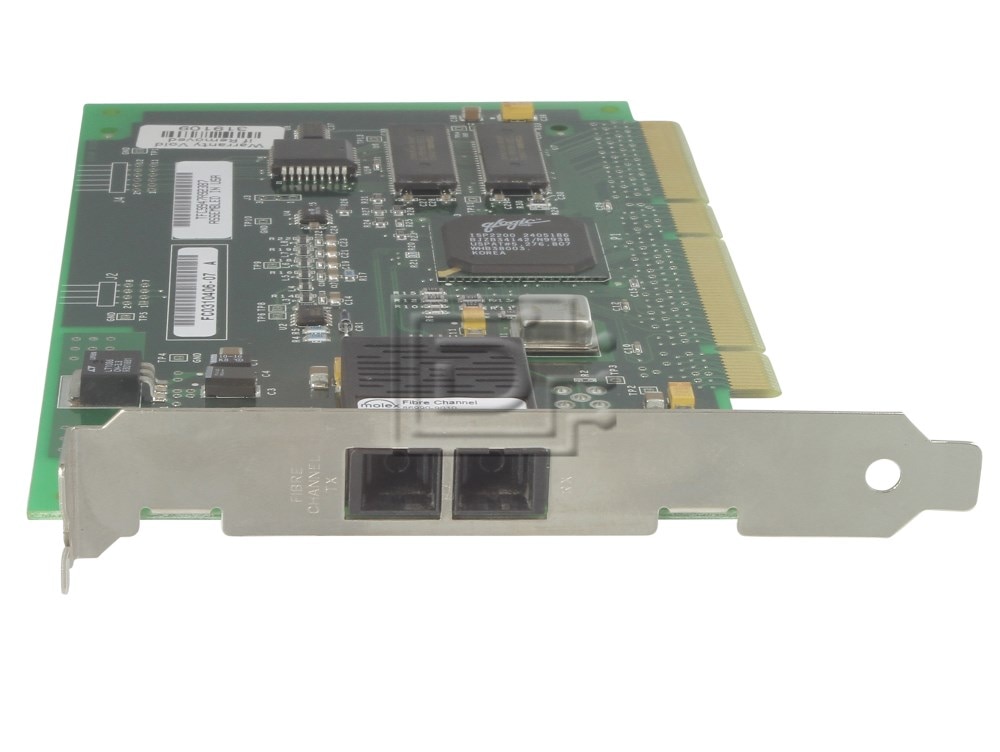

QLOGIC QLA2200F/66 Gigabit Fiber Fibre Channel Adapter


DiscTech Item #: QLG-QLA2200F-66-NP-OE


Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II, PCI-X

Electrical Interface: FC-AL - 2Gbps

Qlogic Gigabit Single Port Optical PCI Fiber Fibre Channel Host Bus Adapter QLA2200F/66 - New Pull

The QLA22xx HBA is an intelligent, high-performance, DMA bus master host adapter designed for high-end systems. The intelligence and performance are derived from the ISP22xx chips, making the QLA22xx HBA a leading-edge host adapter. The ISP22xx combines a powerful RISC processor, a fibre protocol module (FPM) with gigabit transceivers, and a peripheral component interconnect (PCI) local bus interface in a single-chip solution. The QLA22xx HBA supports all FC peripherals that support private loop direct attach (PLDA) and fabric loop attach (FLA). Installation of the QLA22xx HBA is quick and easy.

Compliance with PCI version 2.2 specification

Compliance with Third Generation Fibre Channel Physical and Signaling

Interface (FC-PH-3) standard

Compliance with Fibre Channel-Arbitrated Loop (FC-AL-2) standard

Compliance with U.S. and international safety and emissions standards

Support for bus master DMA

Fast!UTIL BIOS utility to customize the configuration parameters on the

QLA22xx HBA and attached drives

Two independent channels on a single HBA (QLA2202F HBA)

Two independent channels, one of which supports internal and external

connections (QLA2212F HBA)

Four independent channels on a single HBA (QLA2204F HBA)

Supports Fibre Channel SCSI (FCP-SCSI) and internet protocol (IP) protocols

Supports point-to-point fabric connection (F-PORT FABRIC LOGIN)

Click here to view the manufacturer's item description/brochure

Weight: 2 lb

Warranty: 1 Year DiscTech

New Pull

Condition Levels Explained

The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
